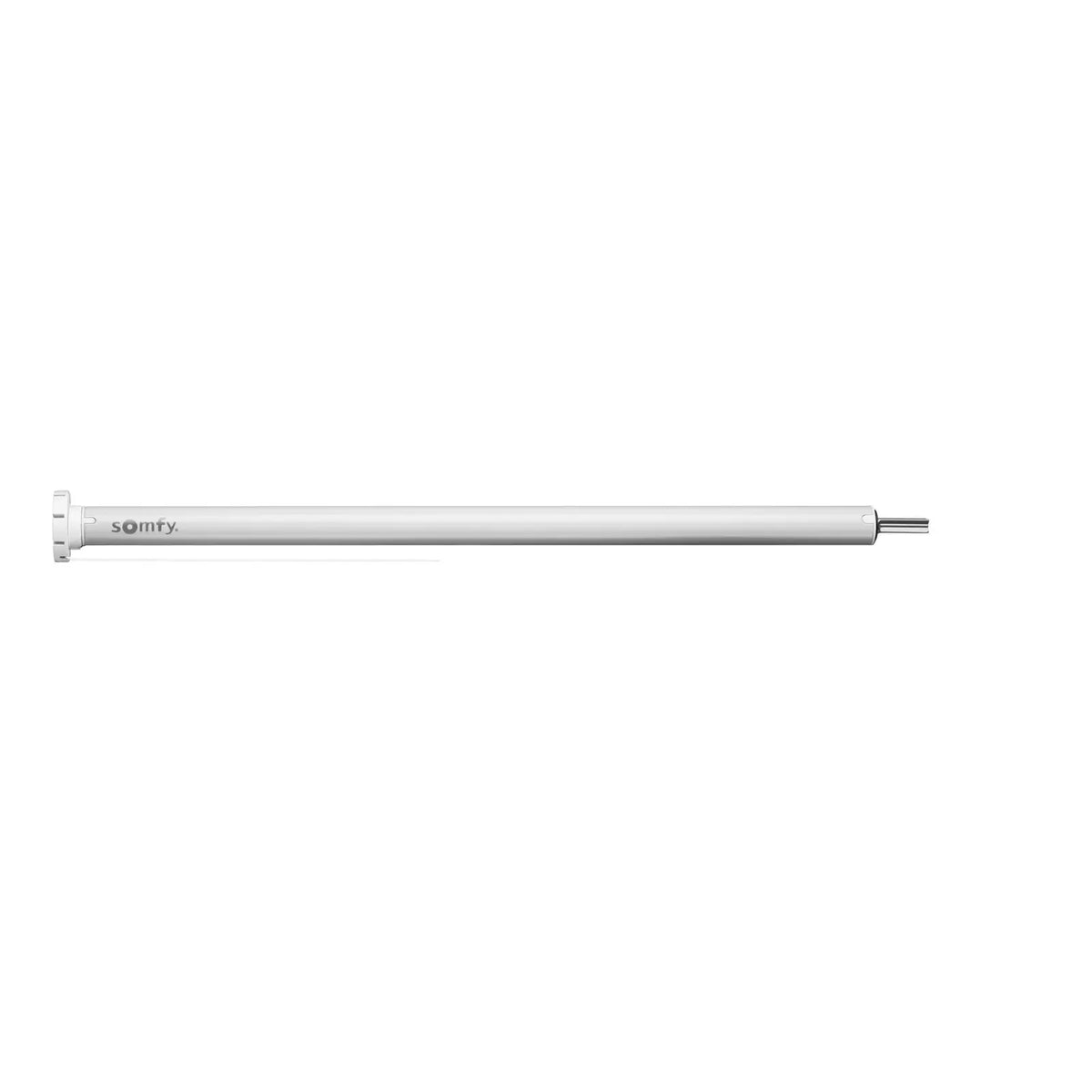

Somfy Sonesse Ultra 30 WireFree RTS Shade Motor 1003310

SKU: SOM-1003310

Sale price
$252.79
Regular price
$285.00
You save
$32.21 (12%)
Taxes and shipping calculated at checkout

Frequently Bought Together

1003310 Somfy Sonesse ULTRA 30 WireFree
12v Rechargeable Li-ion RTS Motor

Adjustable Speed 10-28 rpm, Torque 17.6" lbs. 2Nm, Remote Control limit setting, Crown and Drive may be required

Residential-Commercial Applications

Roller/Solar Shades, Roman Shades, Sheer Horizontals, Woven Wood Shades, Horizontal Blinds, Layered Shades.

The Sonesse ULTRA 30 WireFree RTS Li-ion features a built-in rechargeable lithium-ion battery which means no wiring for installers, minimal maintenance for users! It offers a powerful 2 Nm lifting capacity making it an ultra-quiet and ultra-reliable solution for larger interior shades. Most charging cycles will last approximately 9-12 months depending on the usage. The Somfy charger 9020166 and the Somfy 8" Extension Charging Cable 9021131 for 12v Ultra Lithium-ion Motors is sold separately.

Sonesse DataBook
Sonesse 30 Spec Sheet

Technical information

STANDARD

Protection Index: IP 20

Insulation class: III

DIMENSION

Unwrapped product weight: 1.74 lb

Unwrapped length: 25.59 in

Minimum internal diameter: 1.18 in

Diameter: 1.18 in

Riveting position distance: 24.92 in

TECHNOLOGY

Radio Frequency: RTS 433.42 MHz

Range in open field: 656.2 ft

Memory capacity: 12

Number of cycles per day (in cycles): 1

ELECTRICAL

Consumption during operation: 18 W

Rated current: 1.5 A

Power supply: DC - RGE 7 12V

Antenna: External

Battery Type: Lithium-ion

Number of batteries: 1

Battery Voltage: 12 V

MECHANICAL

Speed: 20 rpm

Torque: 2 Nm

Type of limit switch unit: Electronic

Capacity of the limit switch unit (turns): 200

Power scale: DC MOTOR 0W TO 37,5W

Repeatabilty: < 8

Head type: ROUND

CABLE

Cable type: WITHOUT CABLE

Removable cable: Yes

Cable color: WITHOUT CABLE

Cable plug ends: MOLEX CONNECTOR

OTHER

Minimum working temperature: 32 °F

Maximum working temperature: 140 °F

Minimum storing temperature: -4 °F

Maximum storing temperature: 140 °F

Thermical time: 4 min

Shape: TUBULAR

Noise level (dB): 42 dB

Approval: CE, EAC, NOM, RCM, SASO
