Complete Guide to Commercial & Residential Kirsch Drapery Hardware:
Founded in 1907 as the inventor of the flat telescoping curtain rod, Kirsch remains one of the most specified names in residential interior design and commercial contract drapery installation. Custom workrooms, hoteliers, healthcare facilities, and homeowners trust Kirsch hardware because its heavy-gauge steel rods, ball-bearing pulleys, and extruded aluminum tracks glide smoothly under heavy interlined fabric loads without sagging over wide window spans. Alan Richard Textiles stocks both loose Kirsch components for workroom fabrication and custom-assembled track systems ready for job-site mounting.
Applications Across Residential and Contract Spaces:
- Architectural Floor-to-Ceiling Ripplefold Walls: Low-profile ceiling-mount or wall-mount aluminum tracks create uniform, hotel-grade S-curve waves across sliding glass doors and window walls.

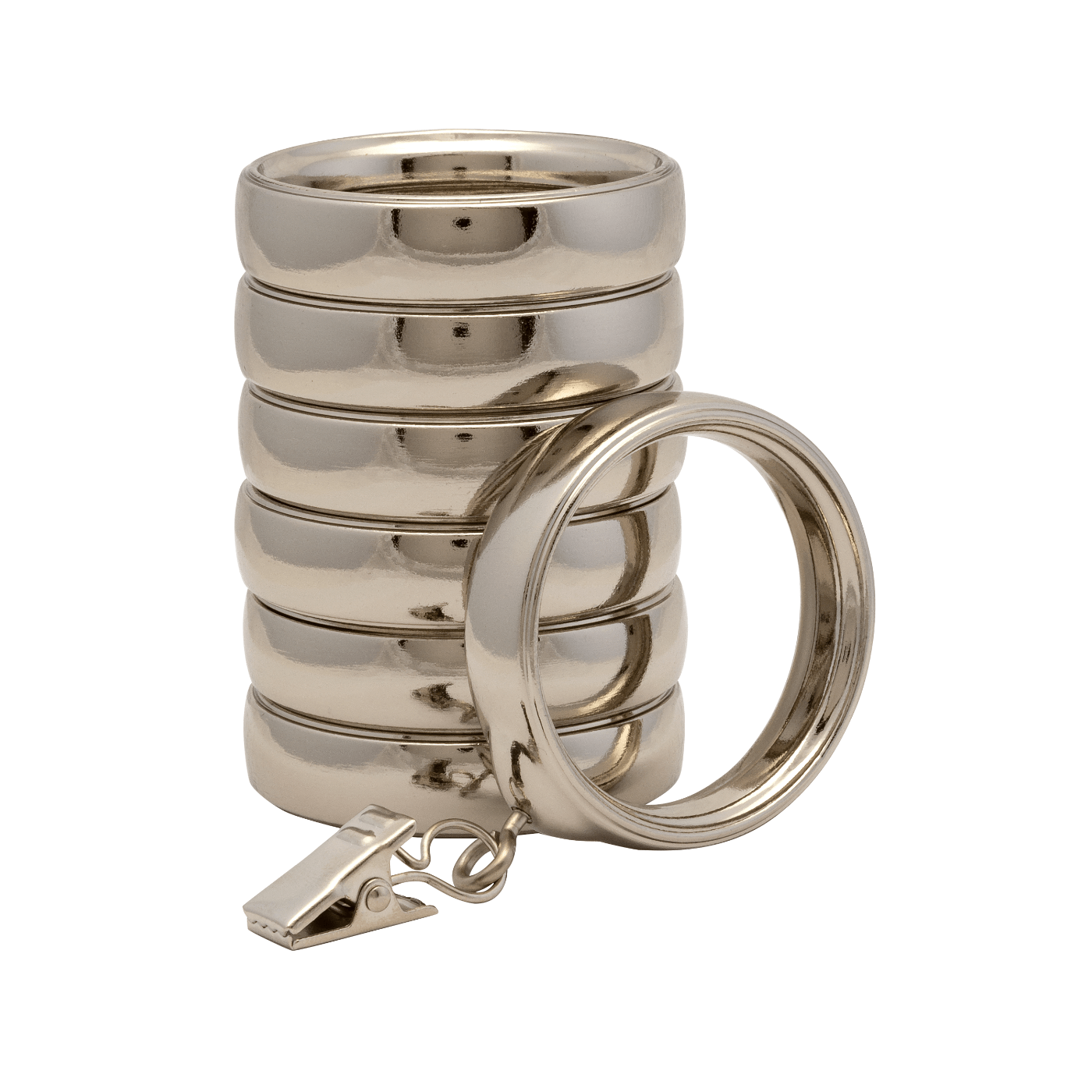

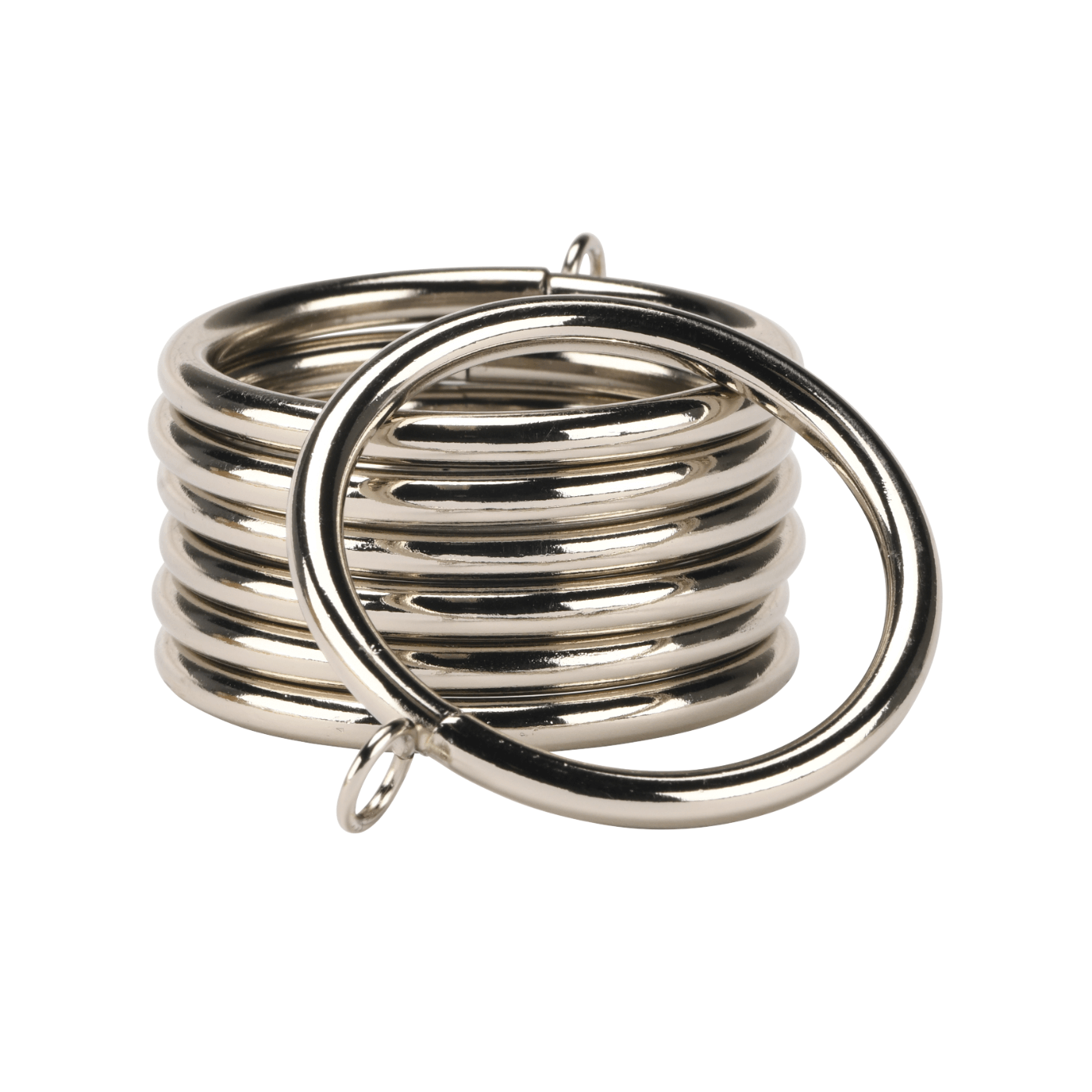

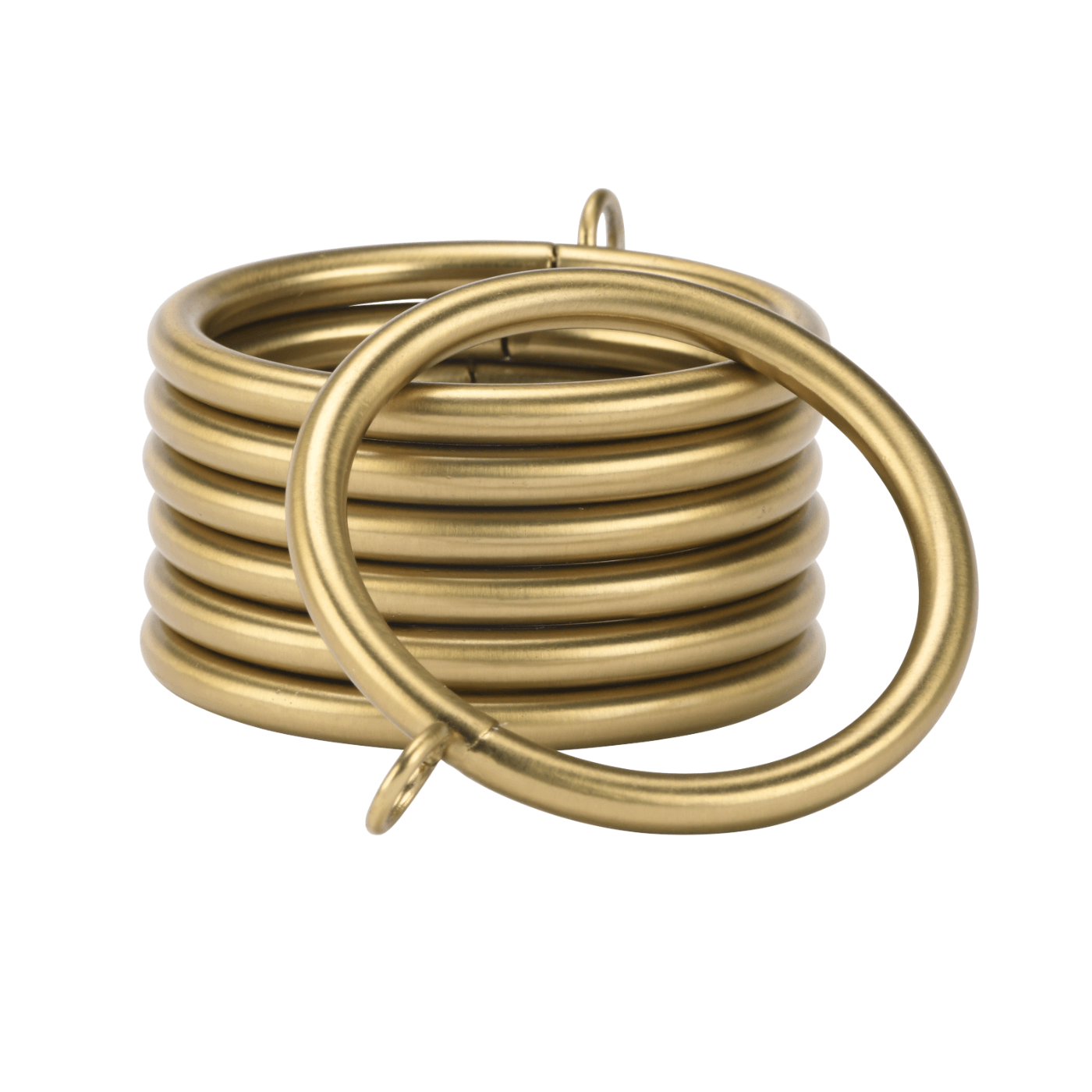

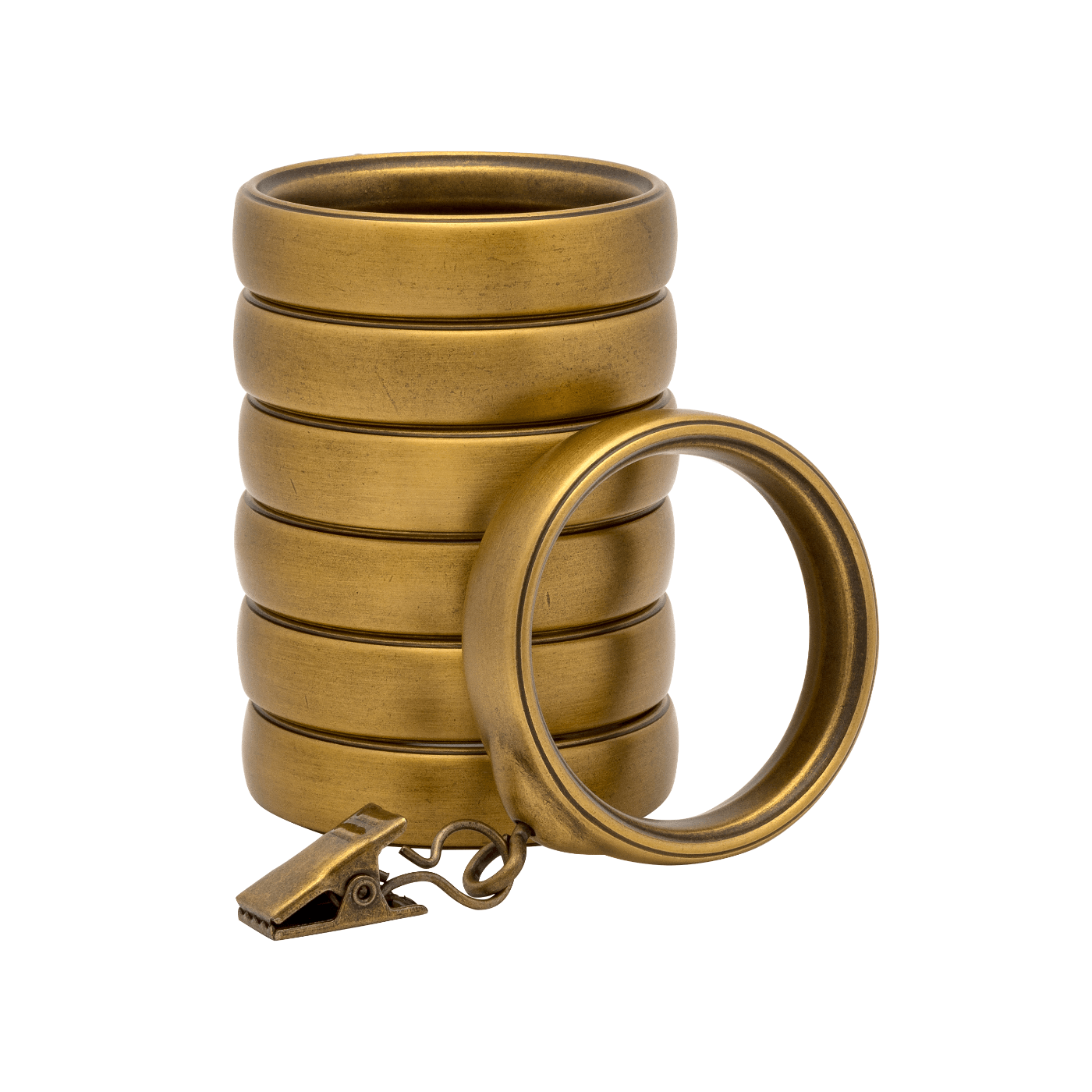

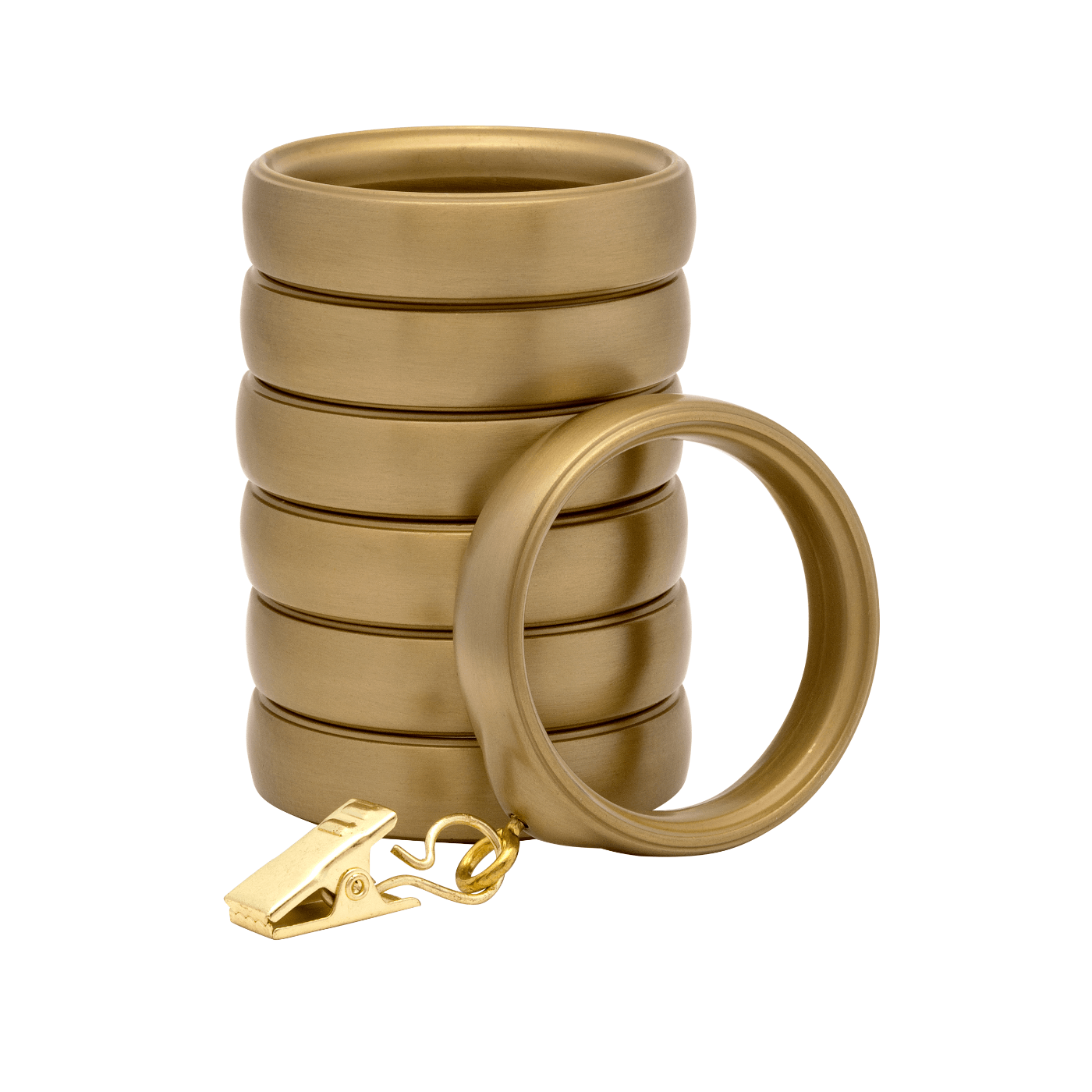

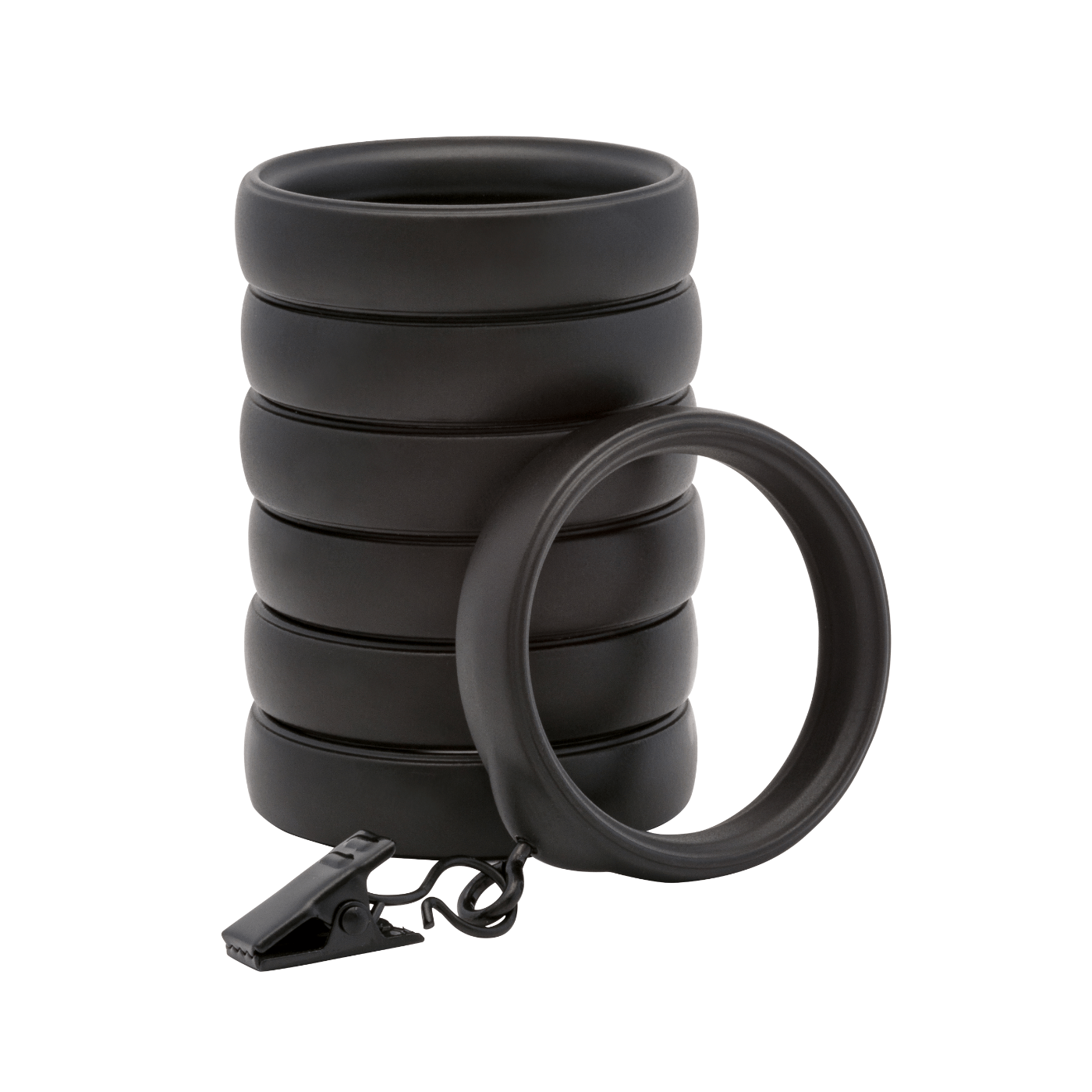

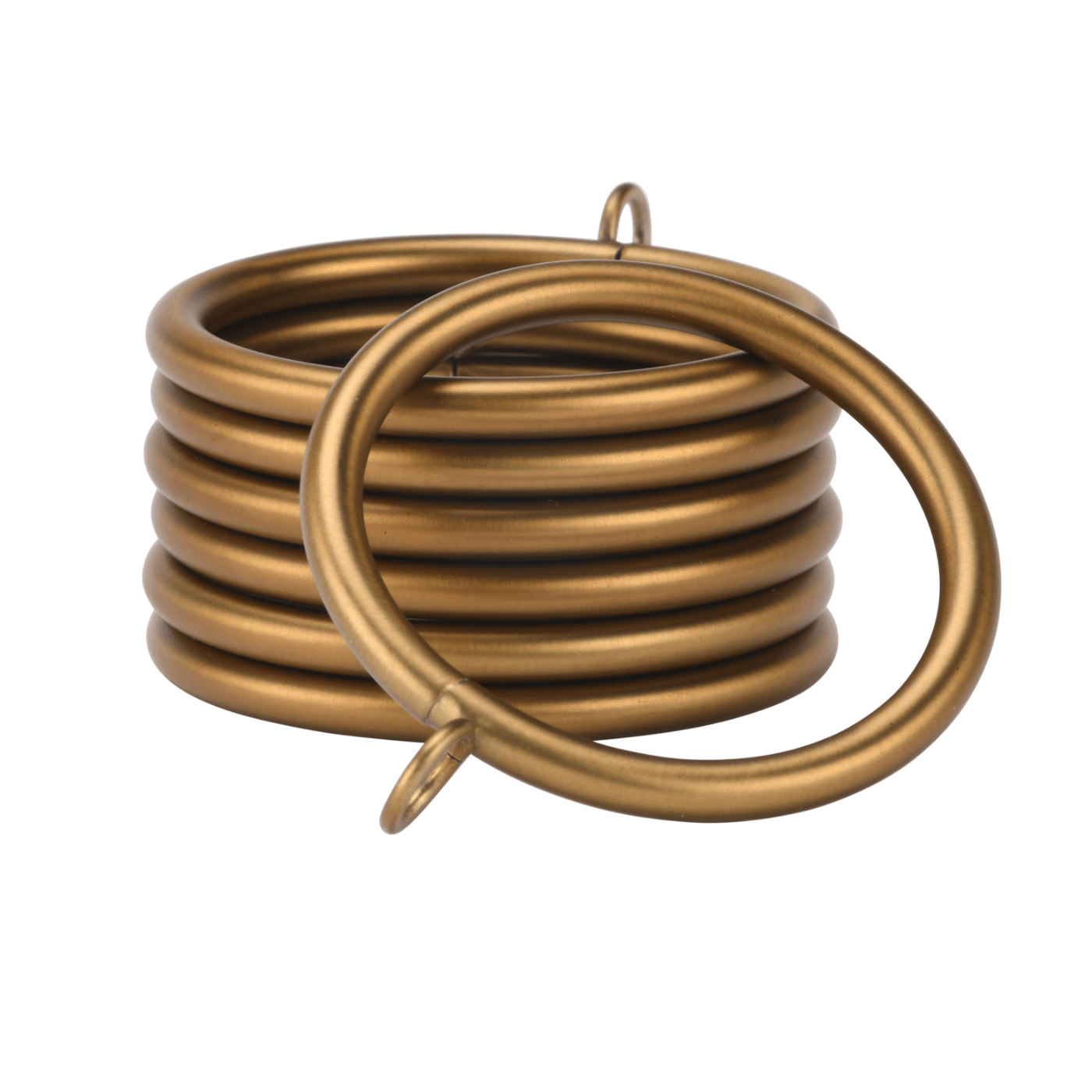

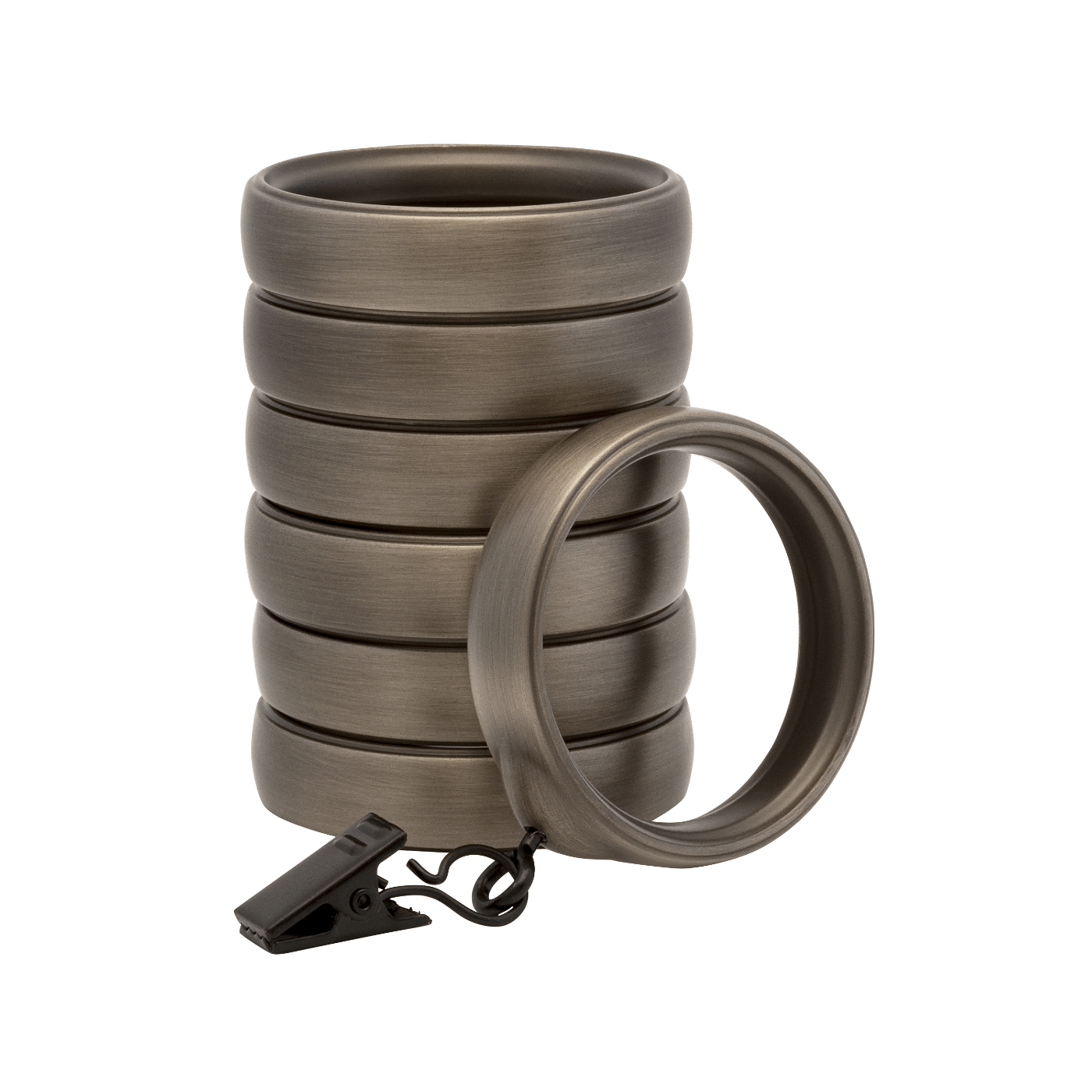

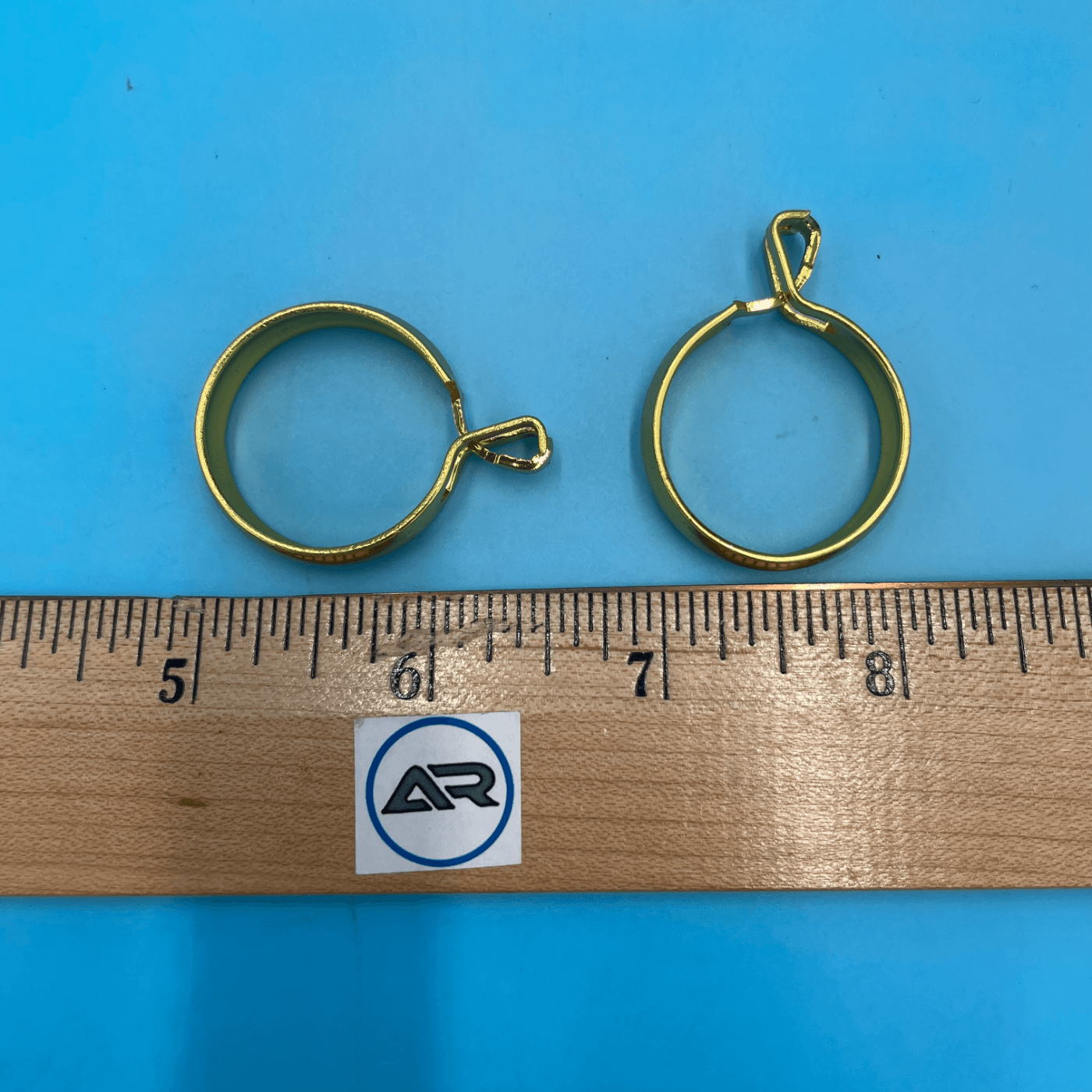

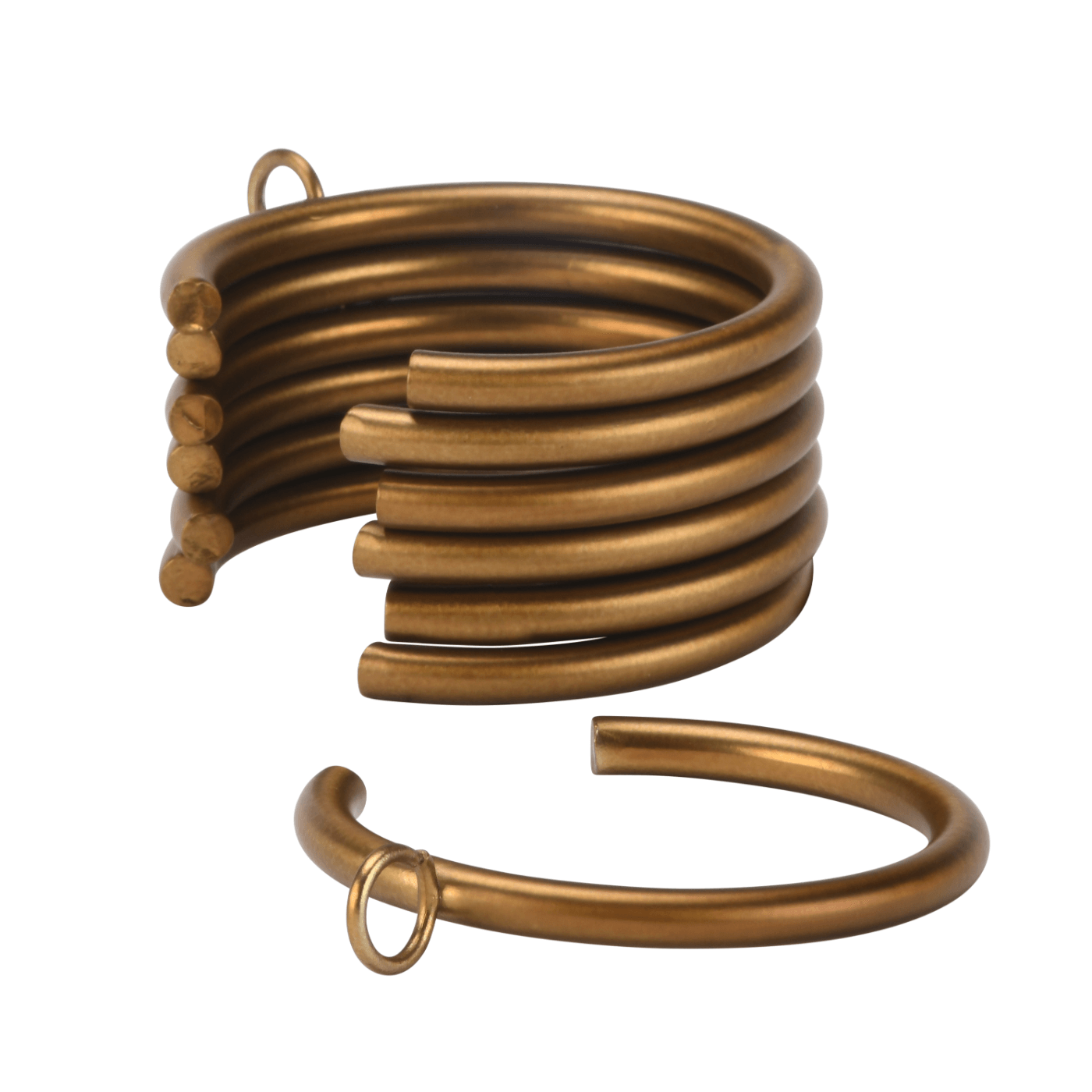

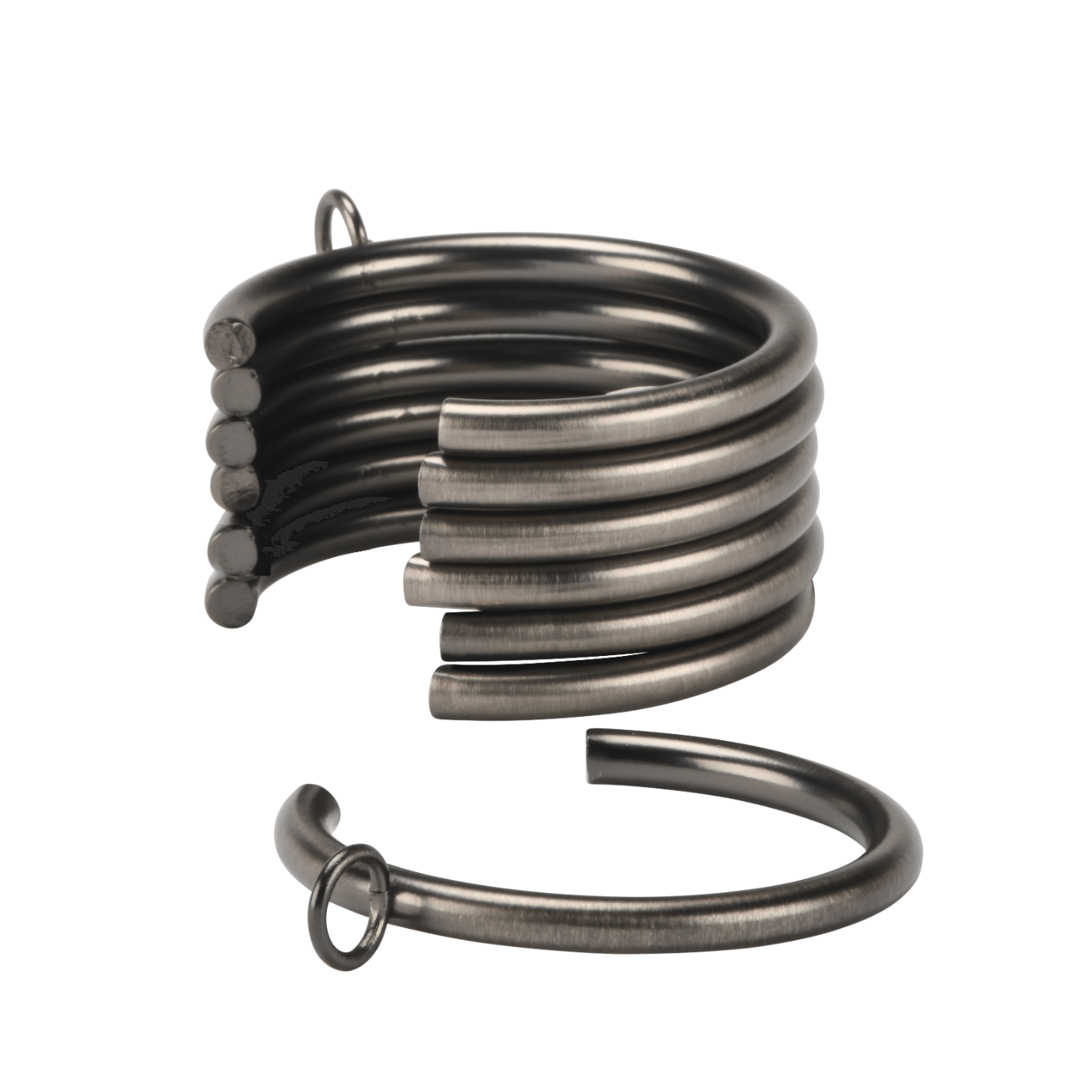

- Traditional Pinch-Pleat & Goblet Draperies: Cord-drawn traverse tracks and decorative poles with rings support formal lined and interlined drapery panels.
- Bay, Bow, and Curved Windows: Custom-bendable Architrac extrusions follow angled and radiused window framing cleanly.
- Hospitality, Healthcare & Stage Cubicles: Heavy-duty ceiling tracks pair with Cubicle Curtain Mesh for clinics and commercial dividers.
Kirsch Product Lines and Technical Specifications:

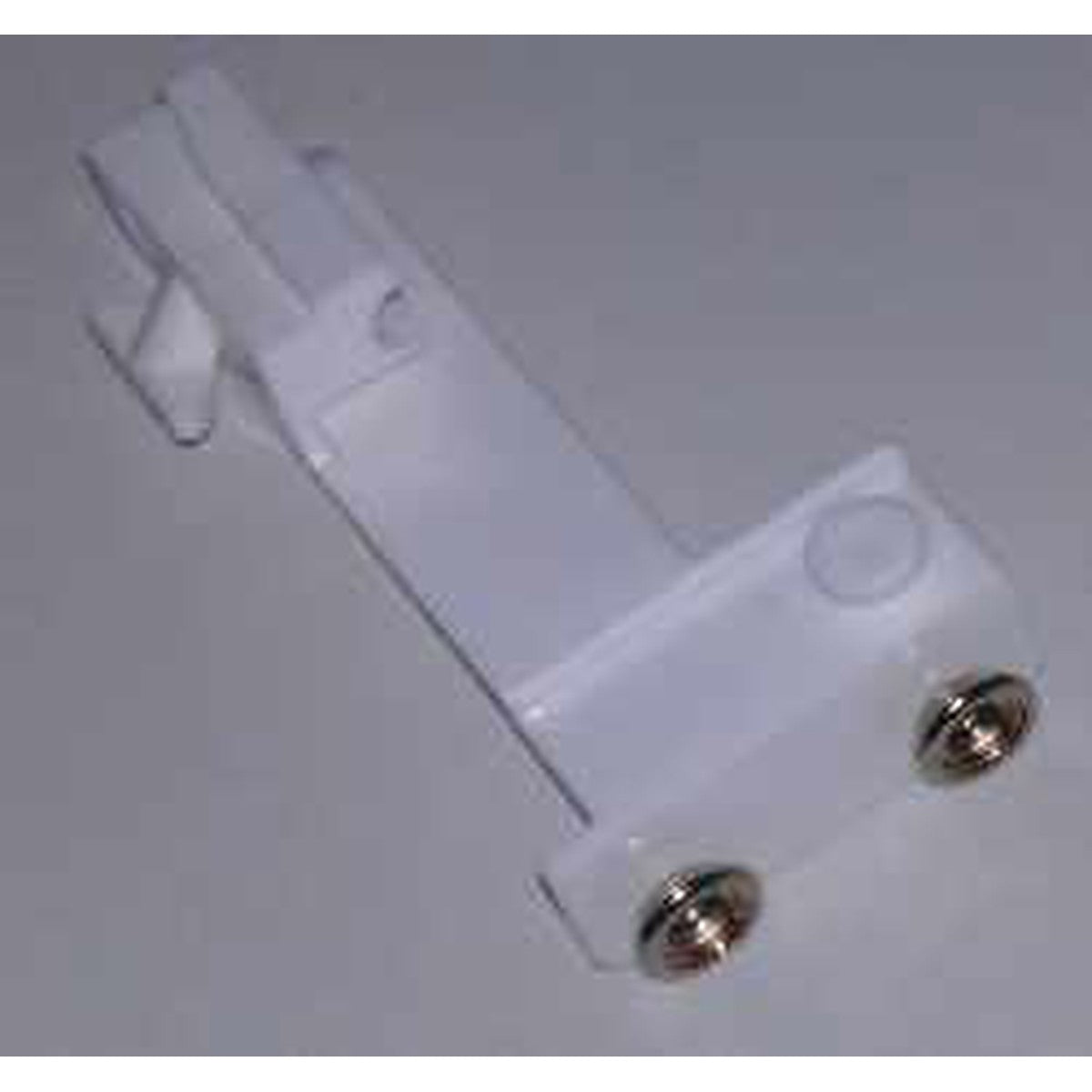

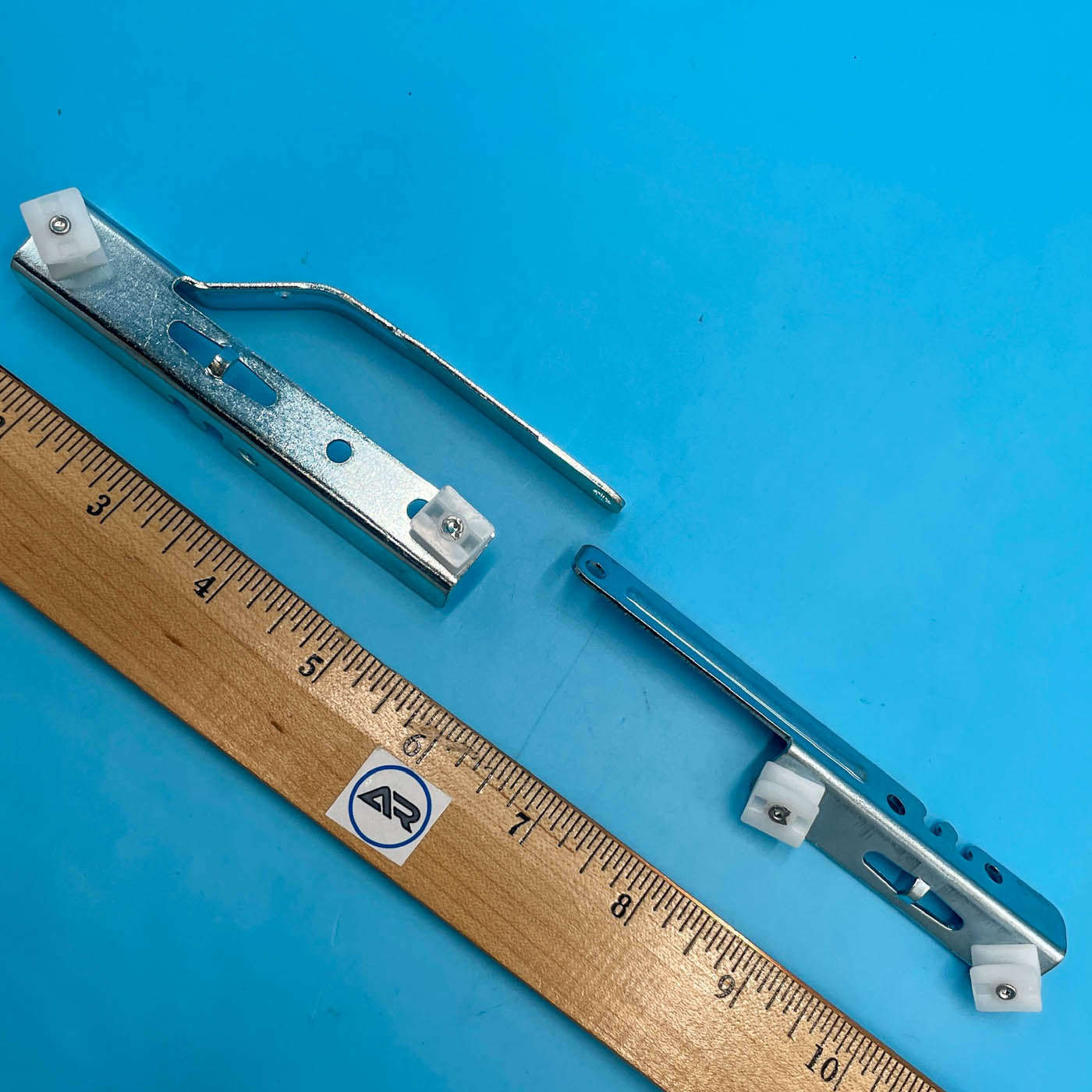

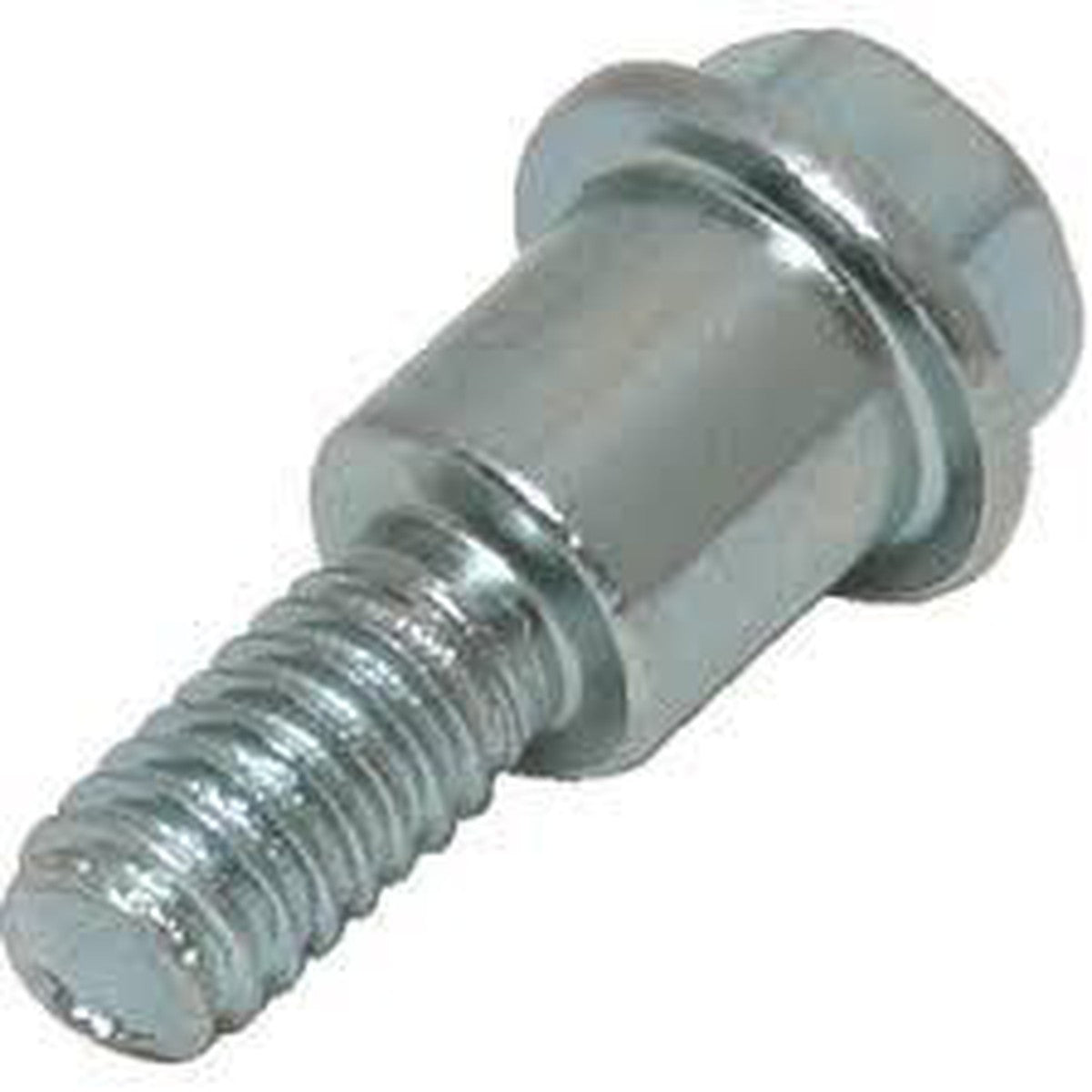

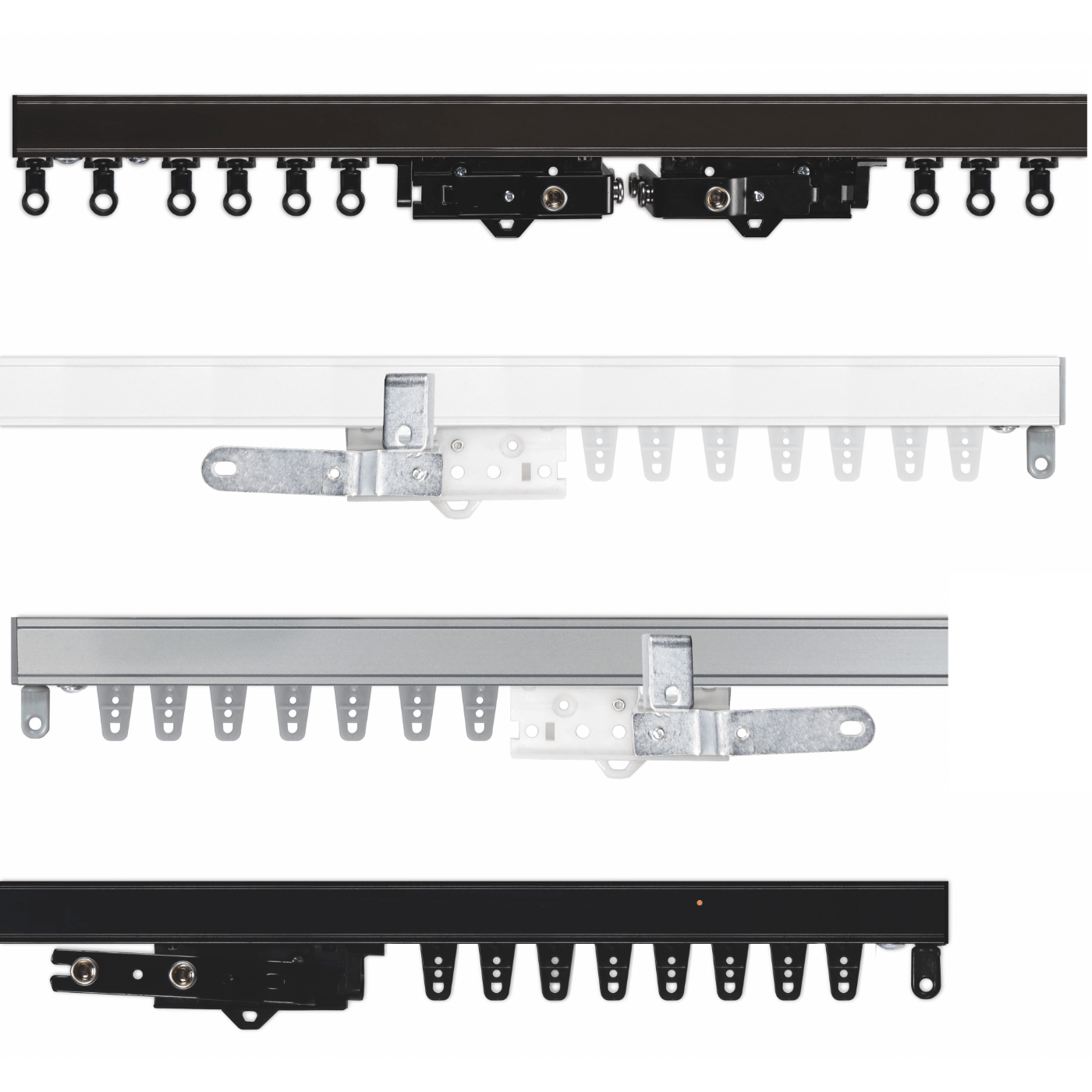

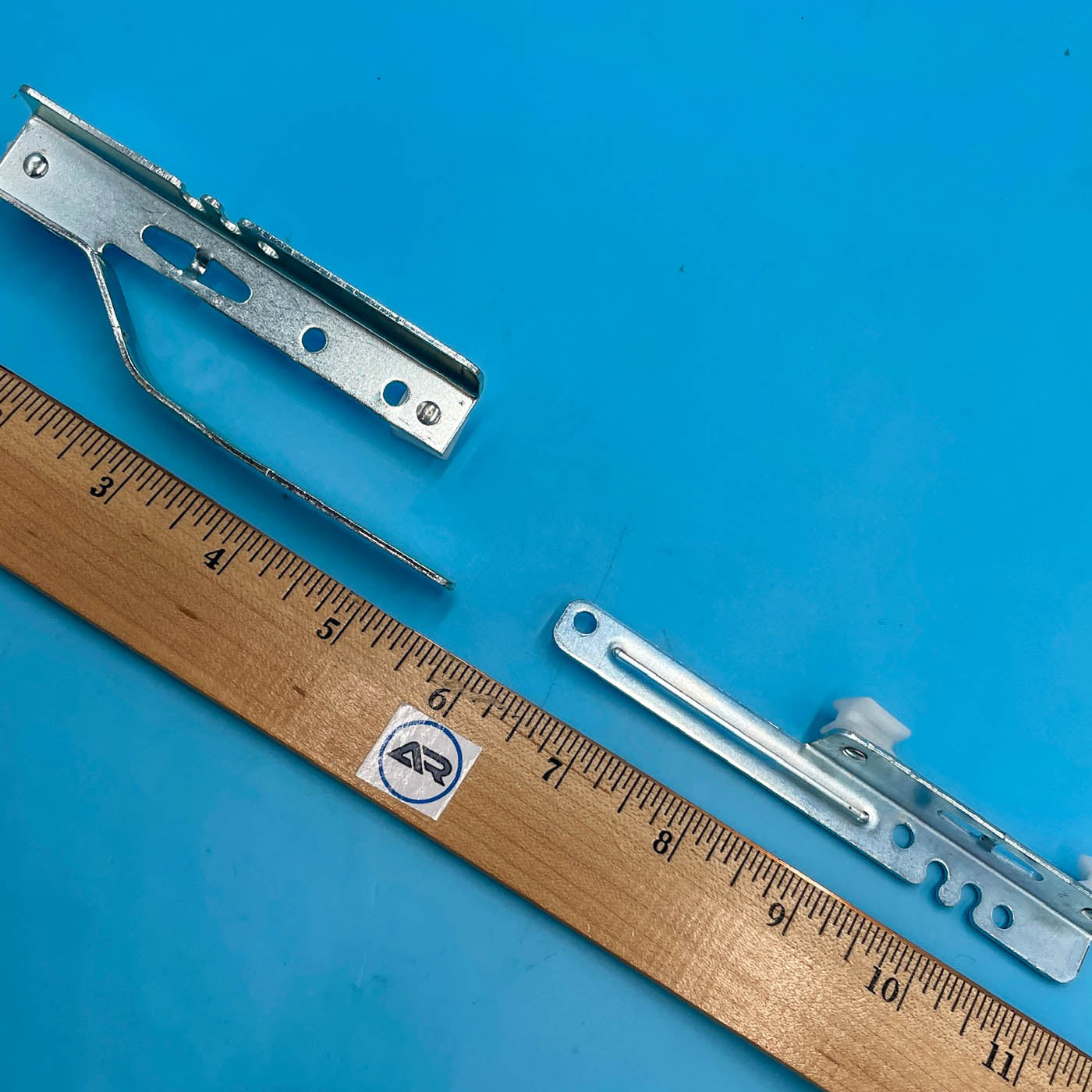

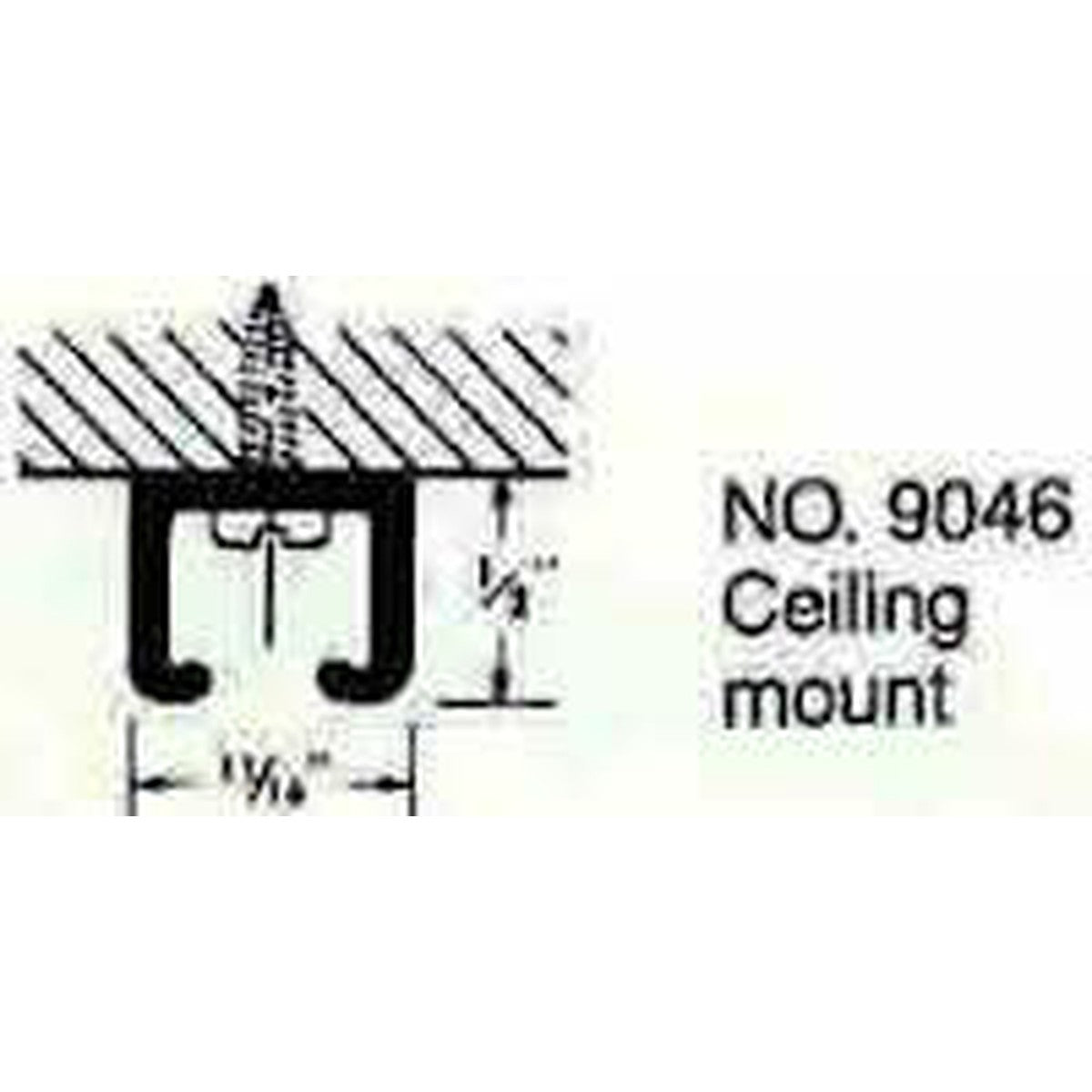

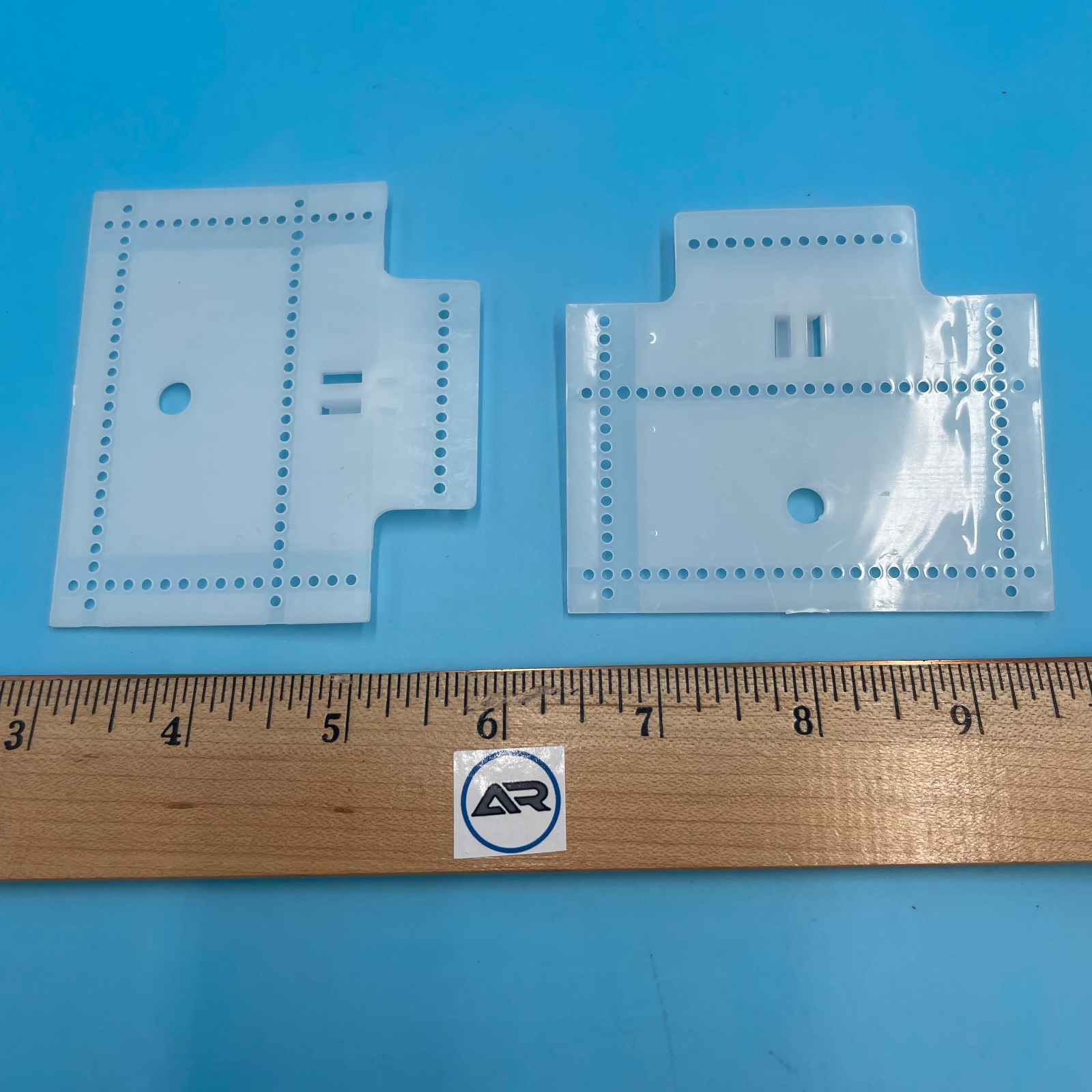

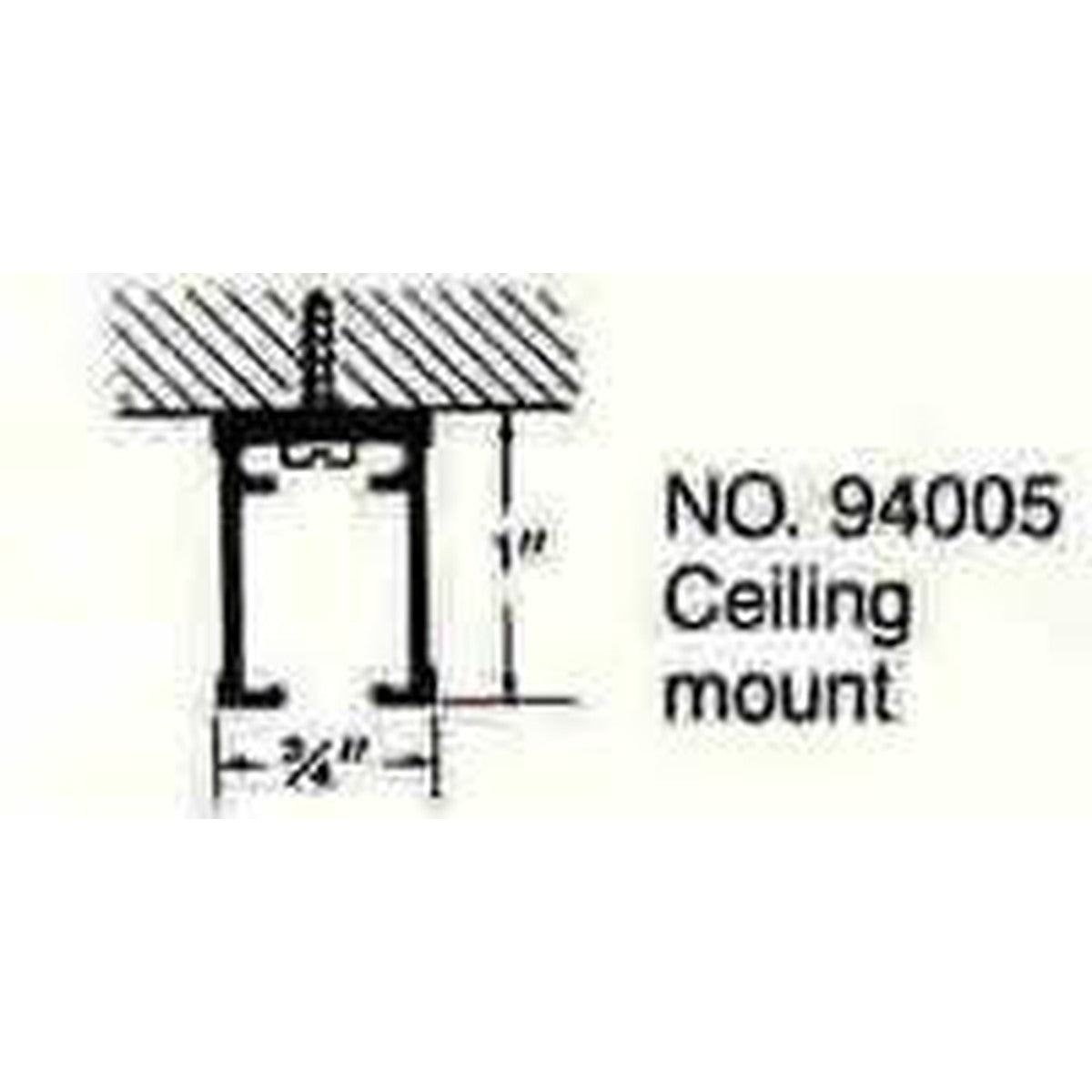

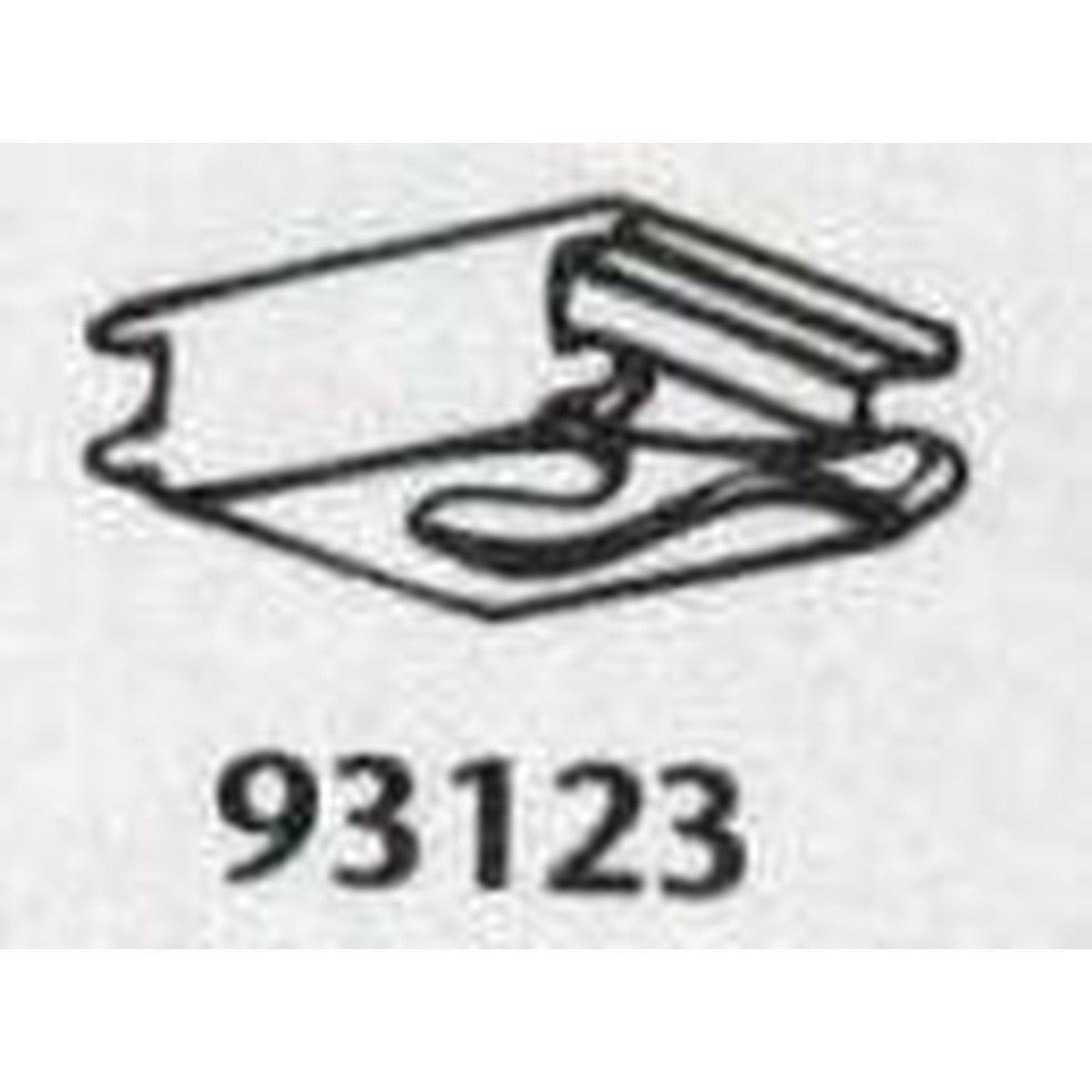

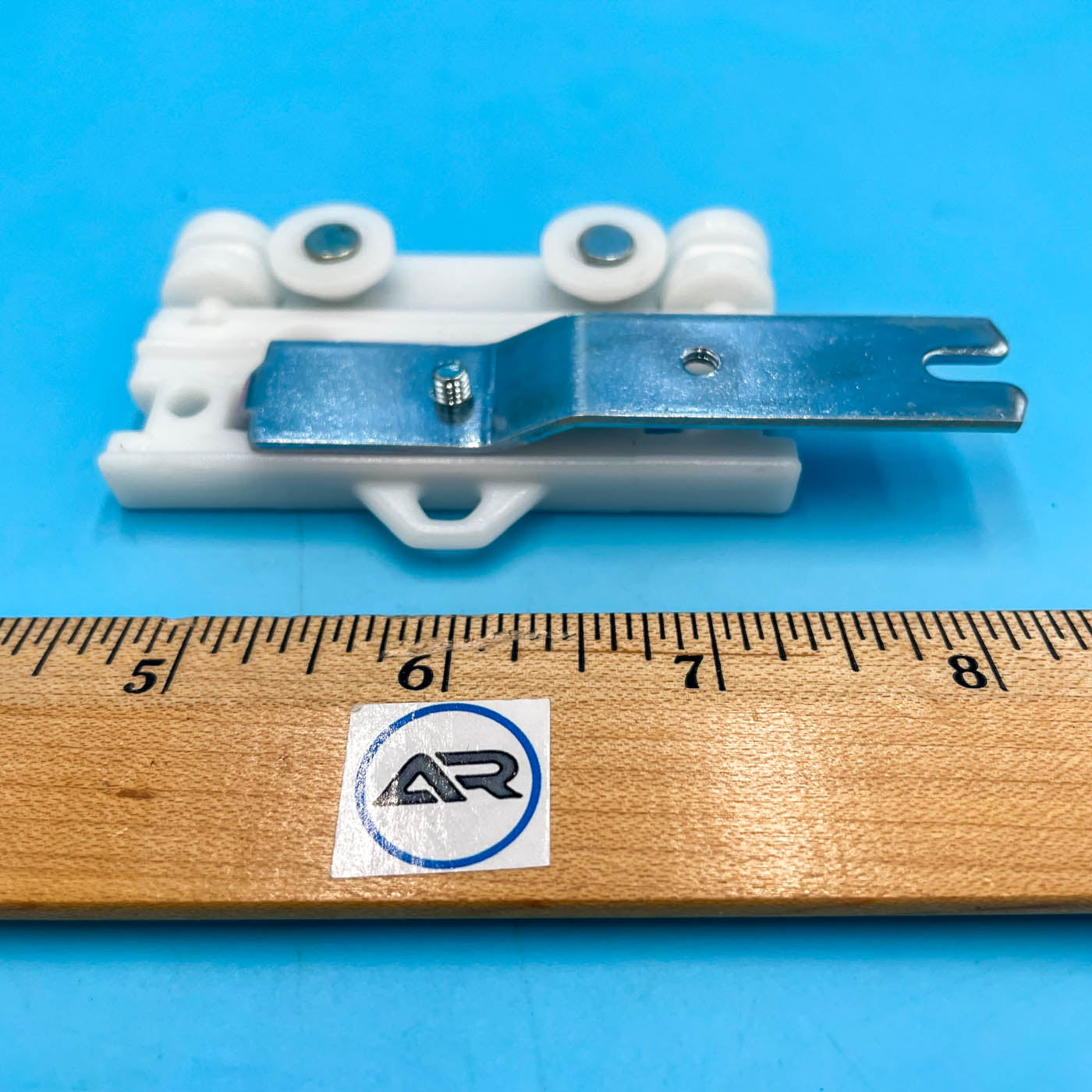

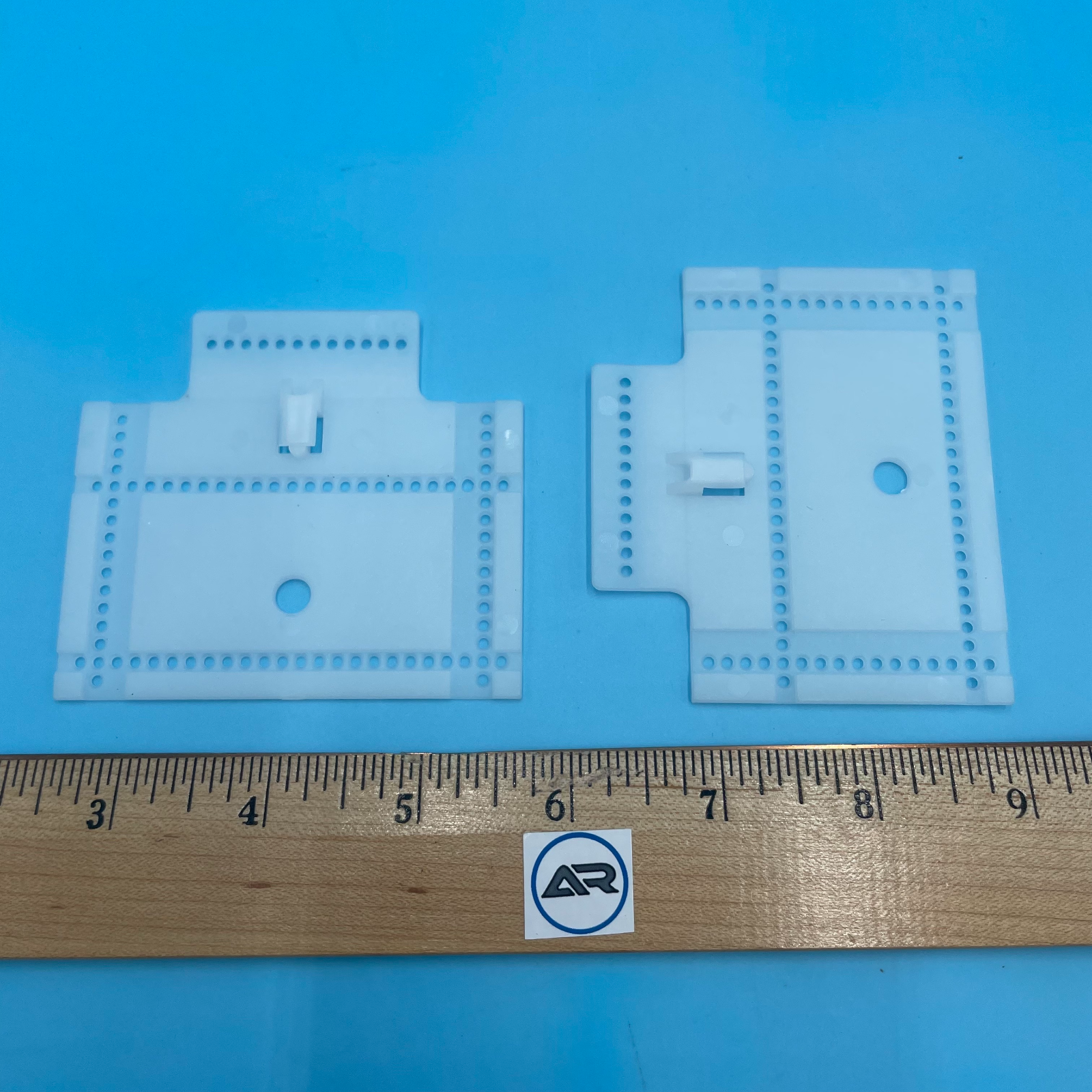

- Extruded Aluminum Architrac Series: Browse our complete Kirsch Architrac Series or order custom Kirsch Assembled Architrac. Key profiles include cord-drawn Kirsch Architrac Series 94001 (dual-channel heavy commercial track), Kirsch Architrac Series 94003 (baton-draw track that can be curved on-site or in-shop), overlap baton-draw Series 94004, low-profile ceiling Series 9046, and institutional Series 9600 cubicle track.

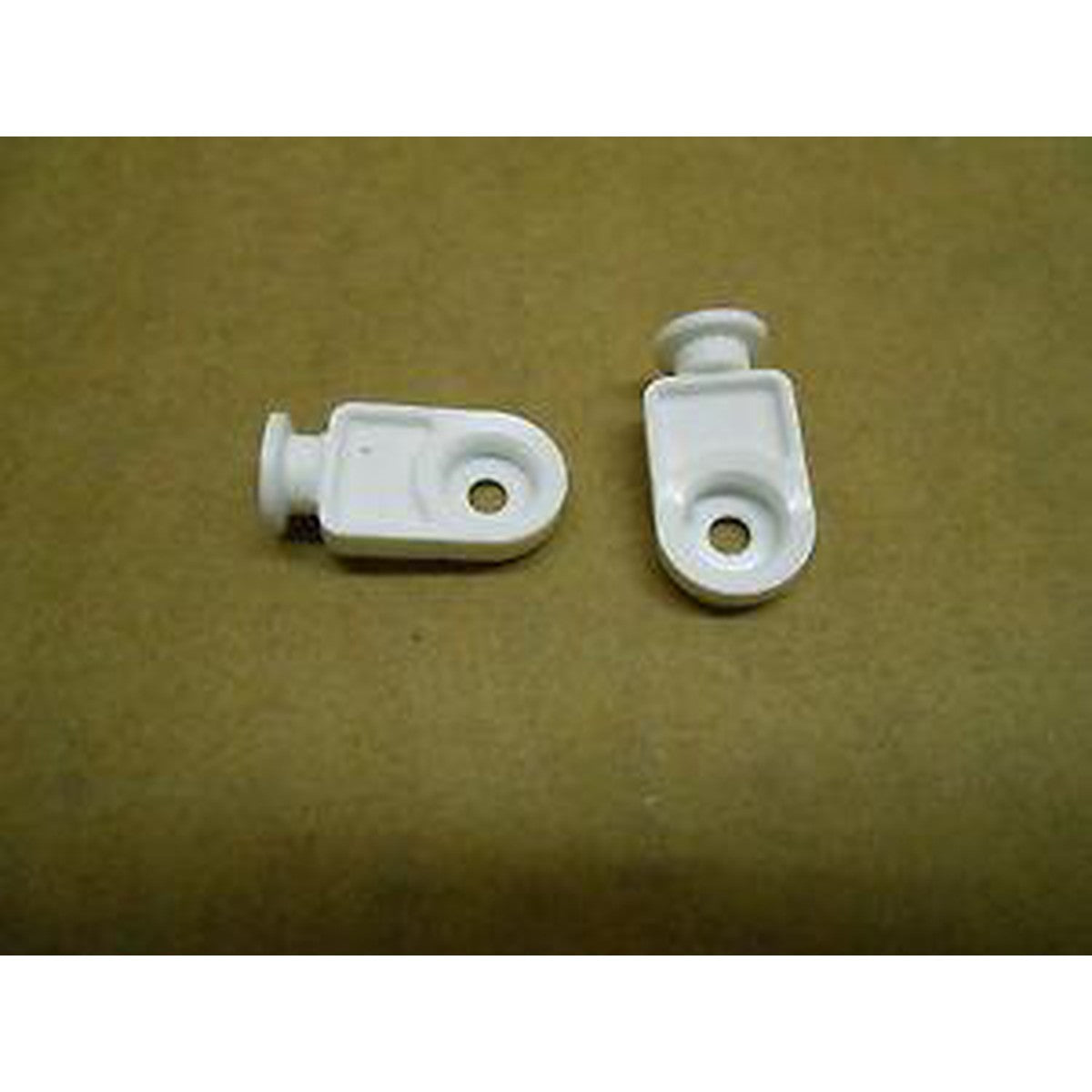

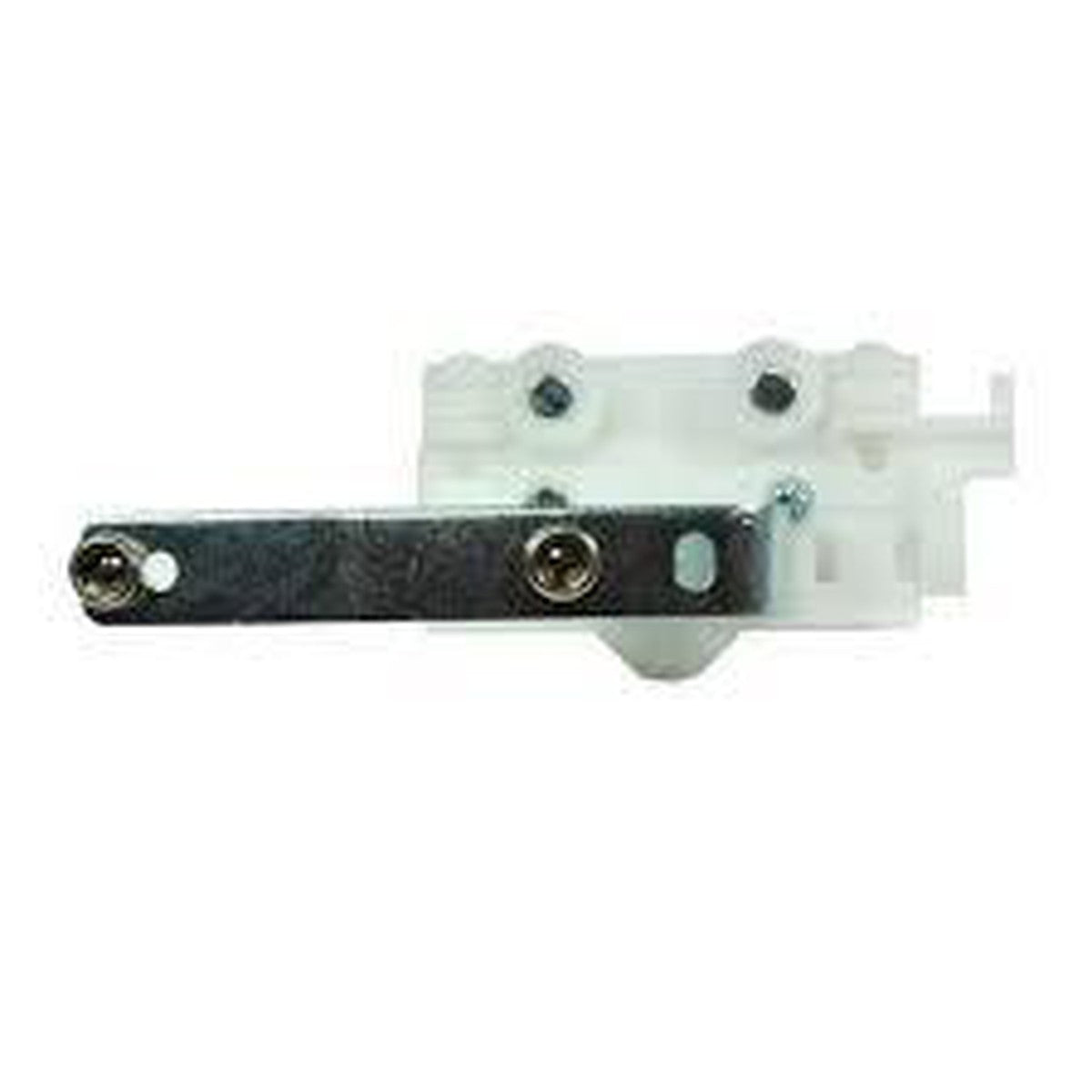

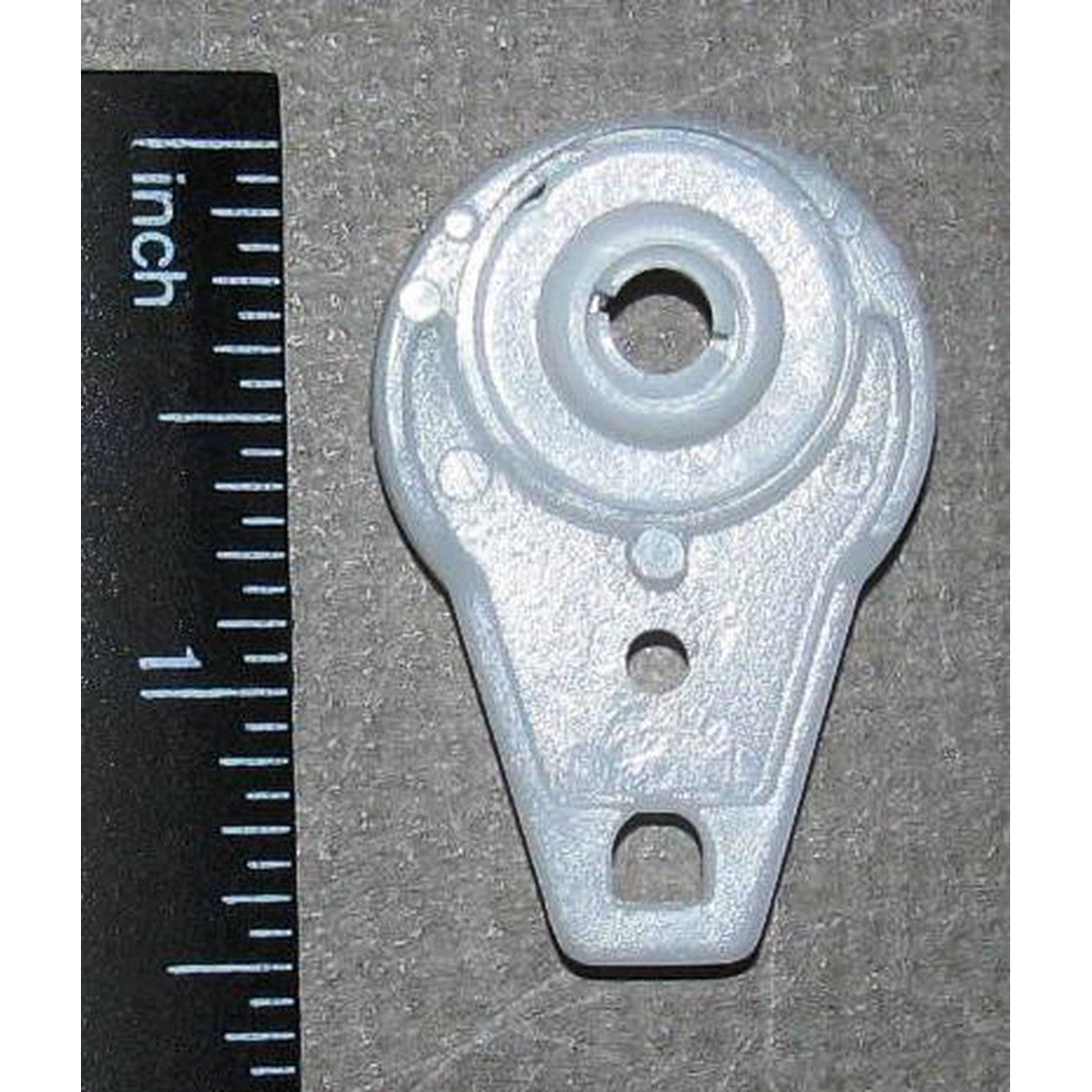

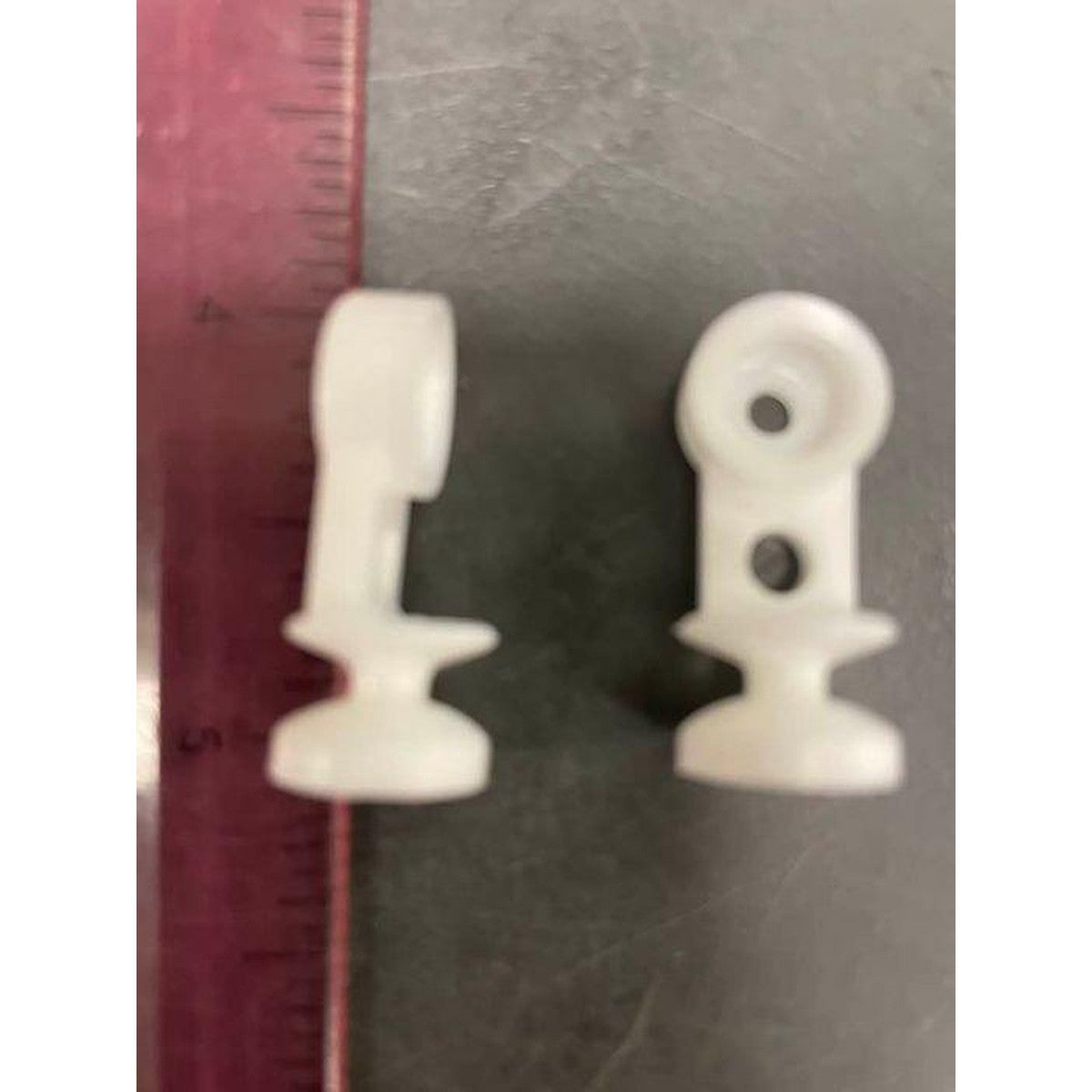

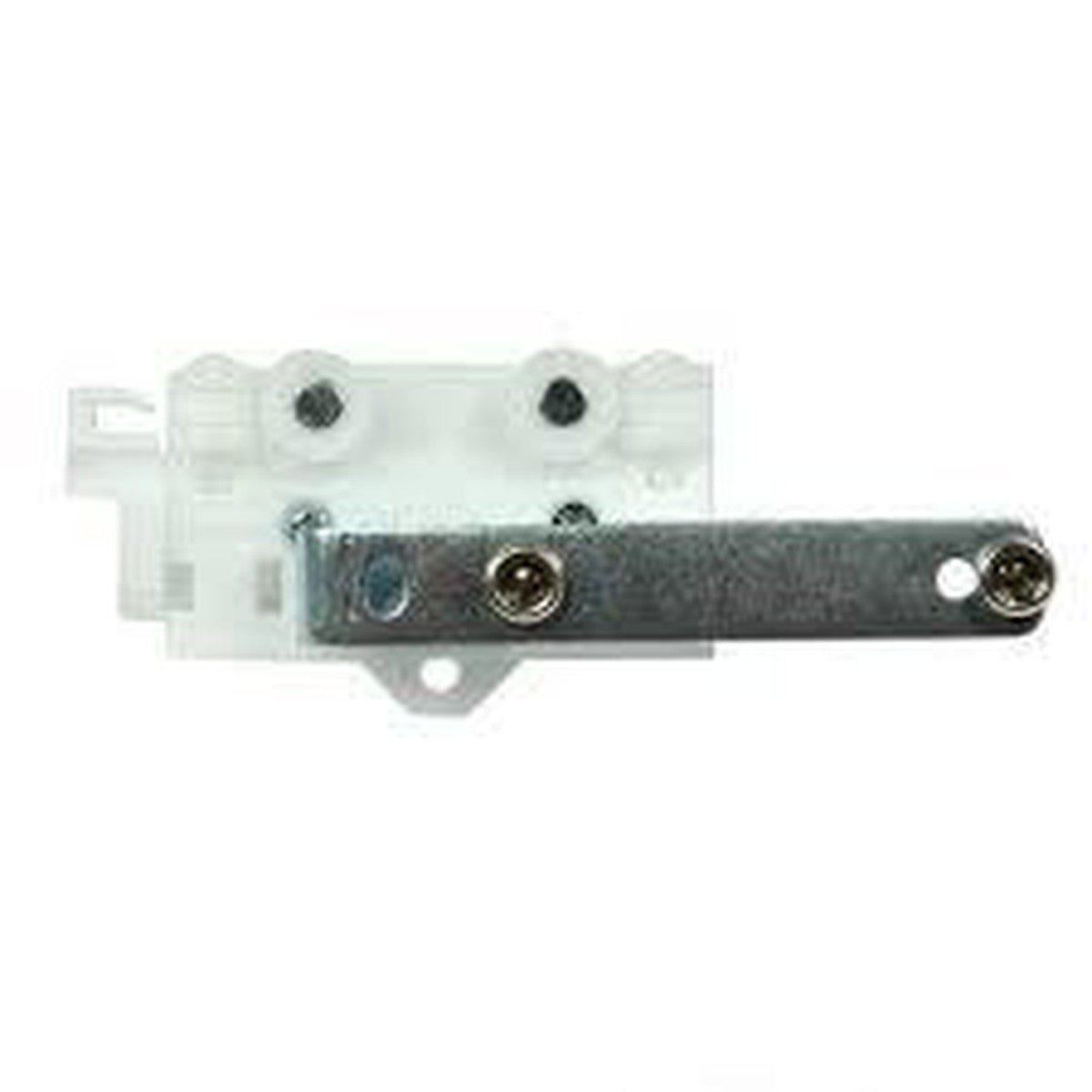

- Ripplefold Tape & Carrier Compatibility: Pair Architrac tracks with Ripplefold Snap Tapes & Carriers using hard-action 4-1/4" snap spacing and wheeled carriers in 60% (2-5/8" spacing), 80% (2-3/8"), 100% (2-1/8"), or 120% (1-7/8") fullness.

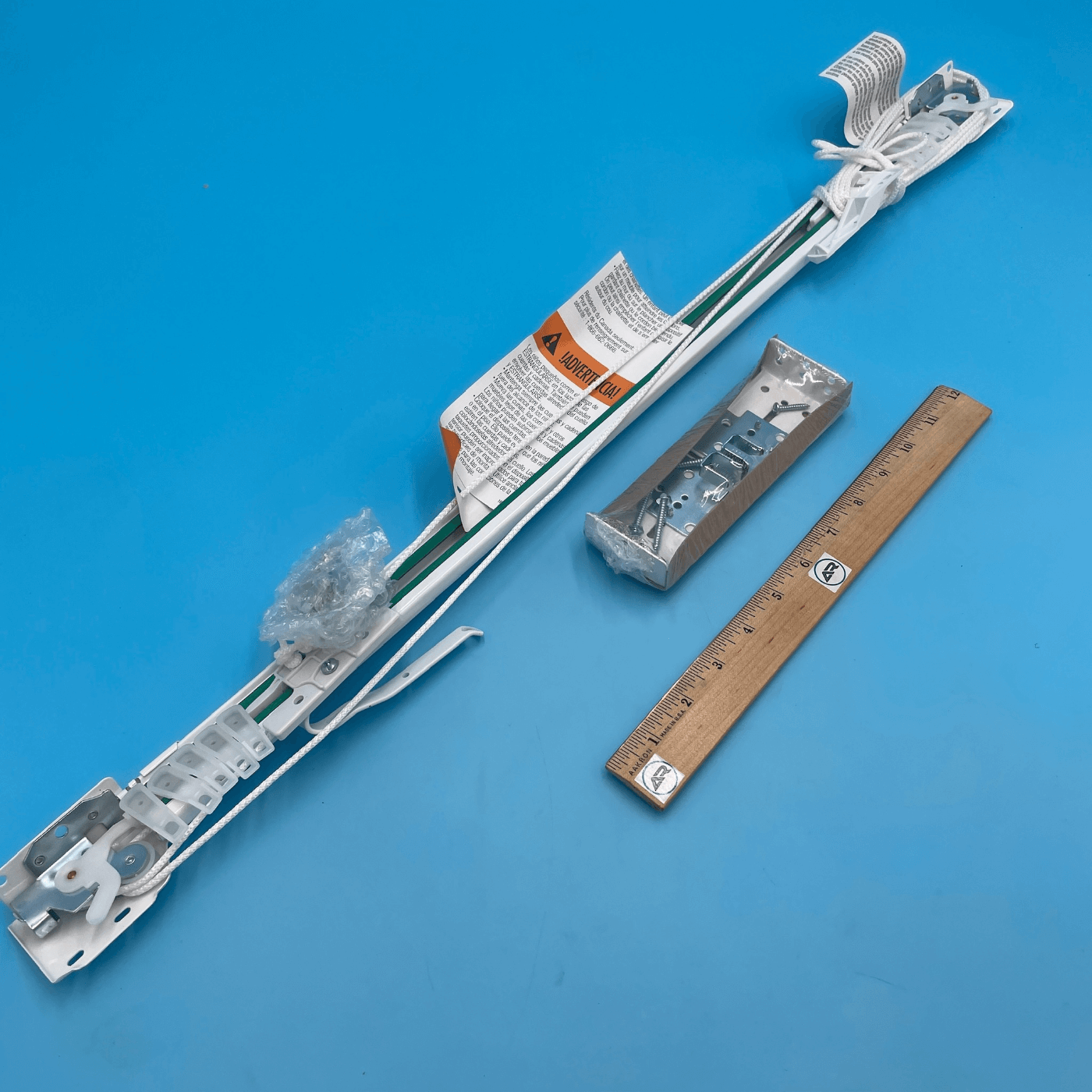

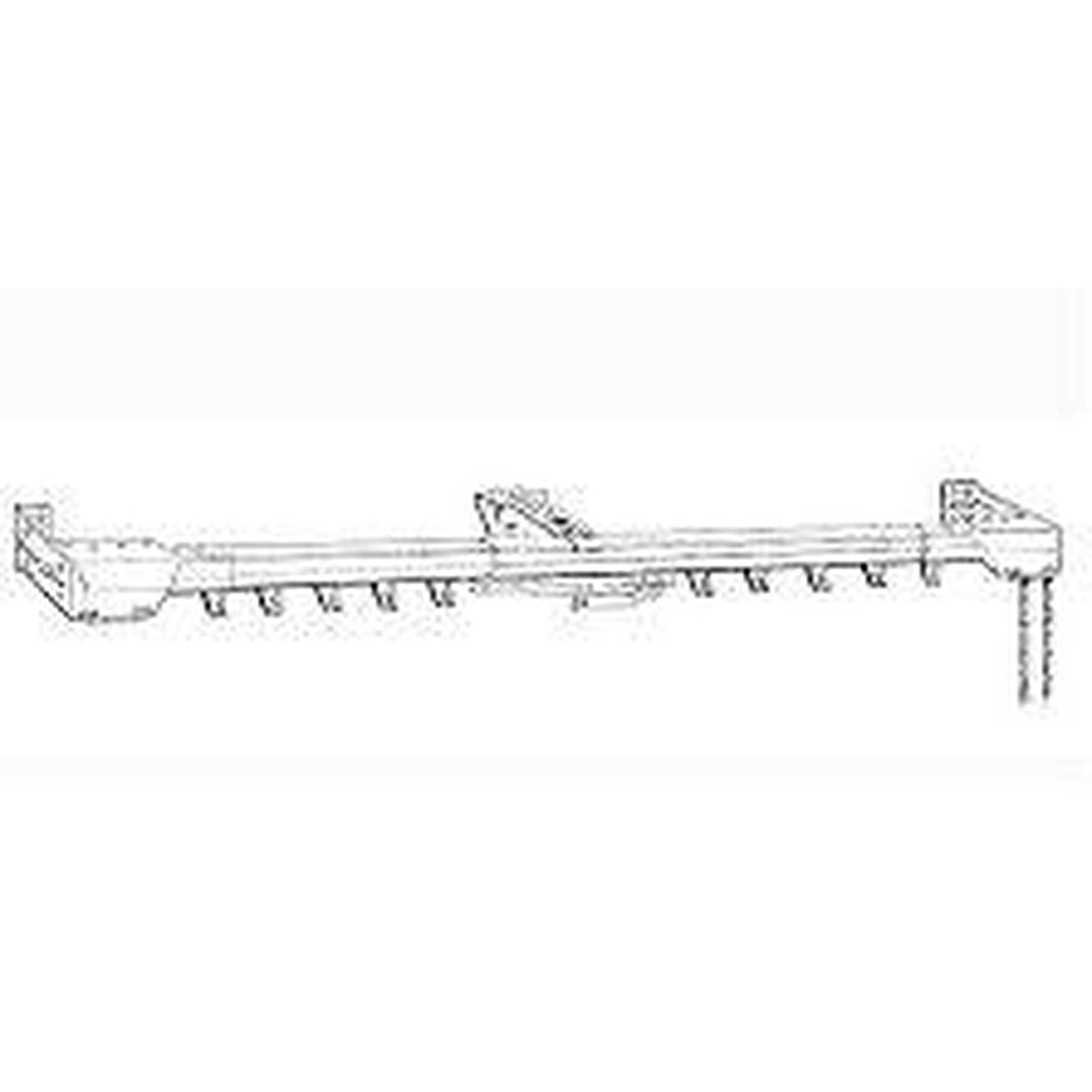

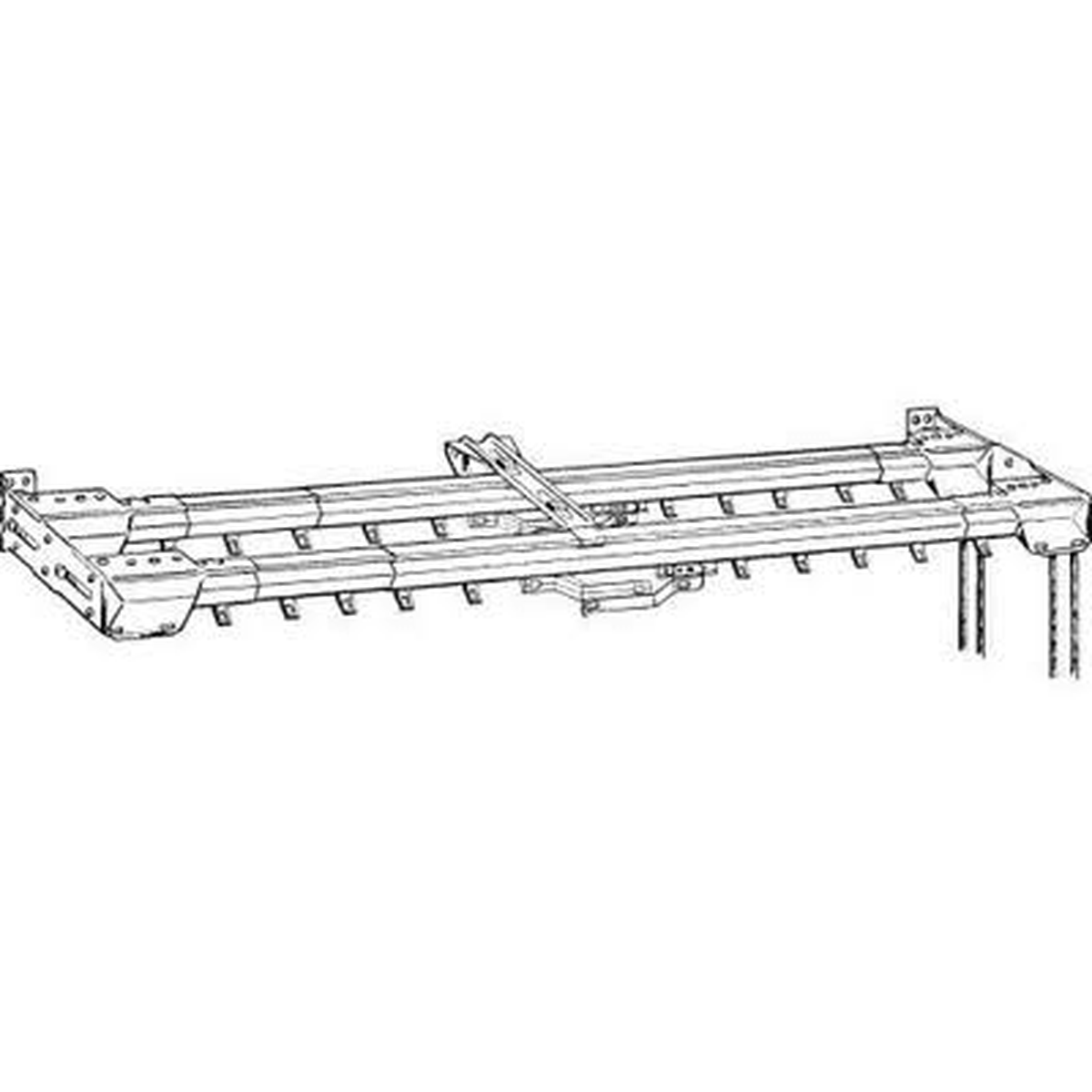

- Telescoping Traverse & Utility Rods: Stock Kirsch Superfine Traverse Rods and Kirsch Curtain Rods & Components for fast residential two-way center-draw or one-way stack installations.

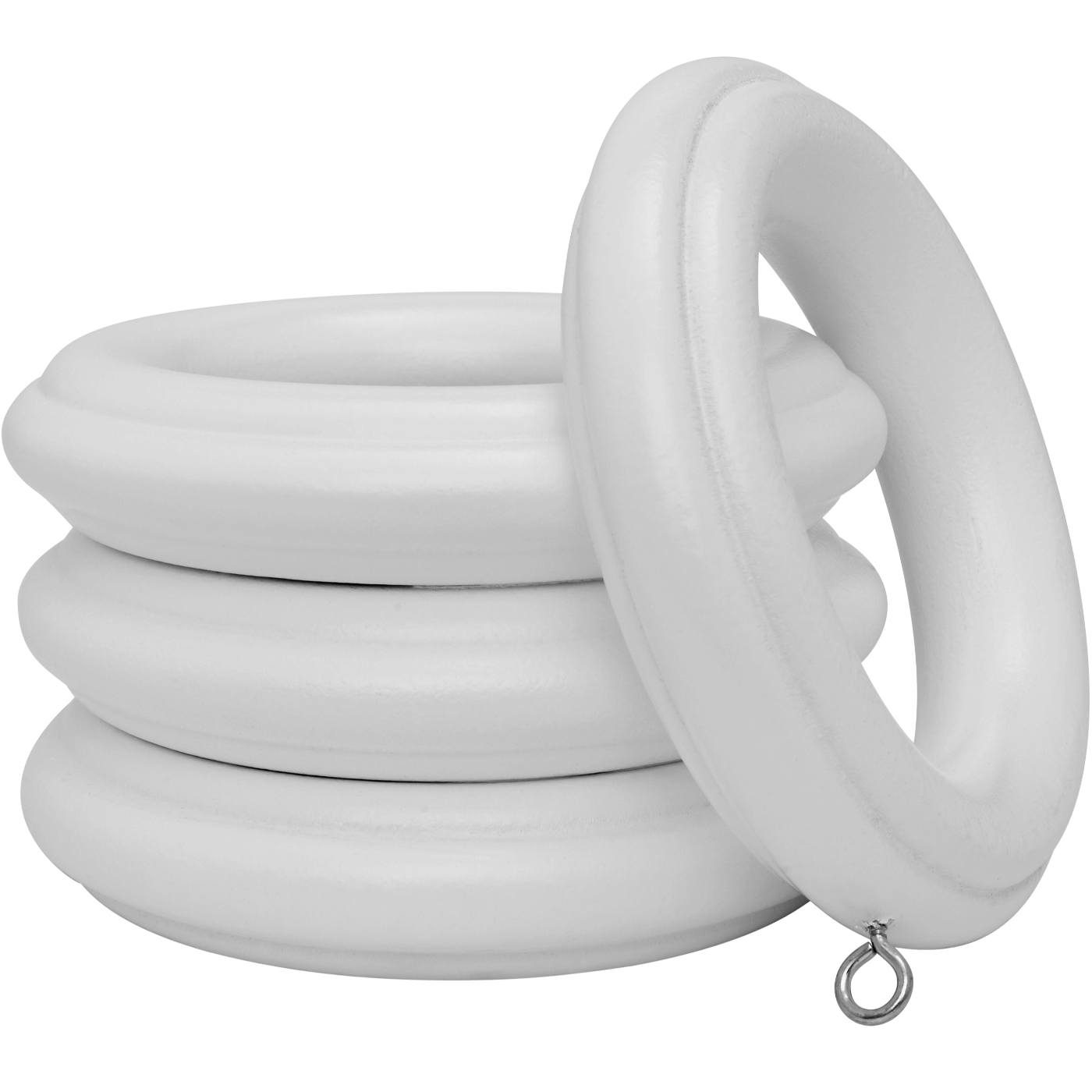

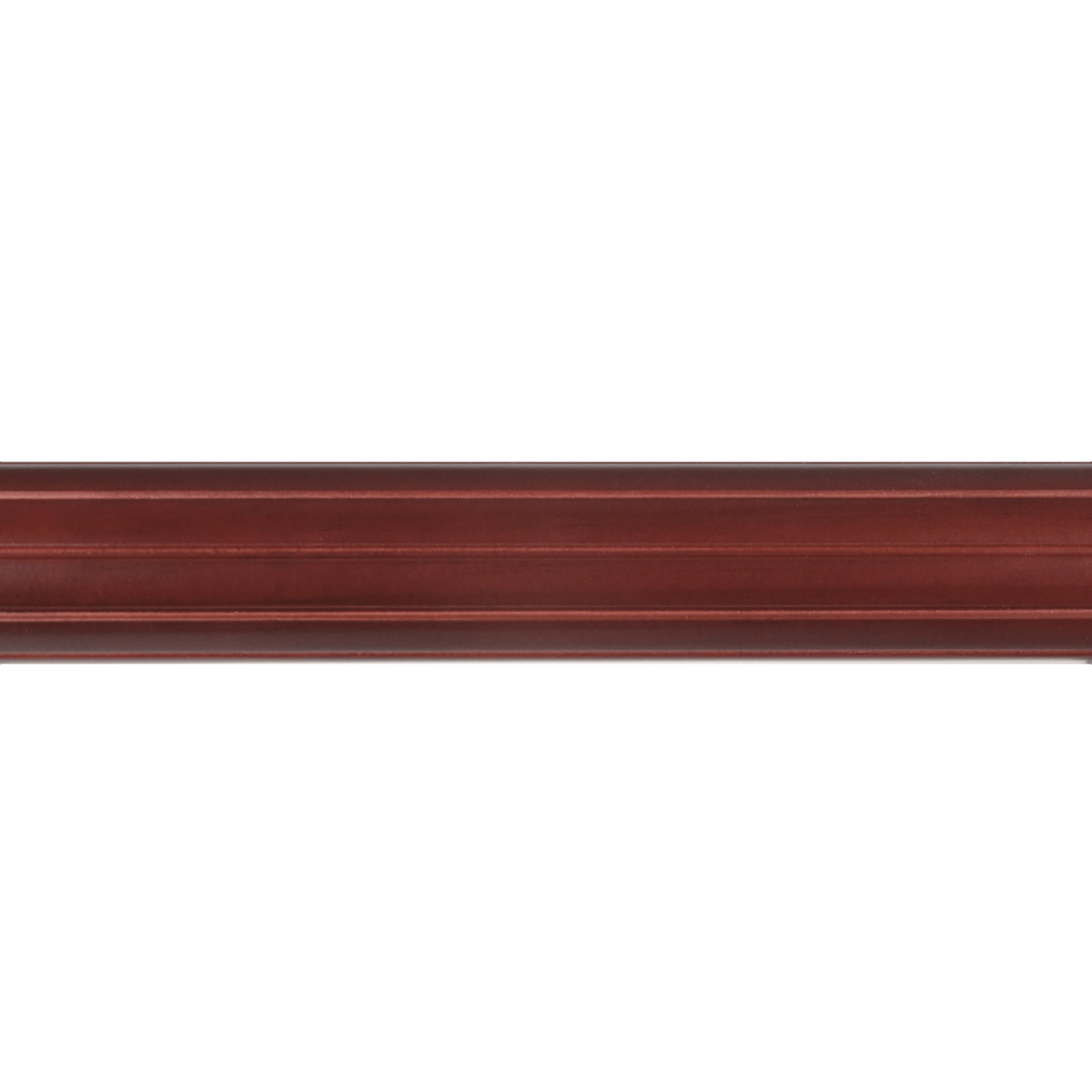

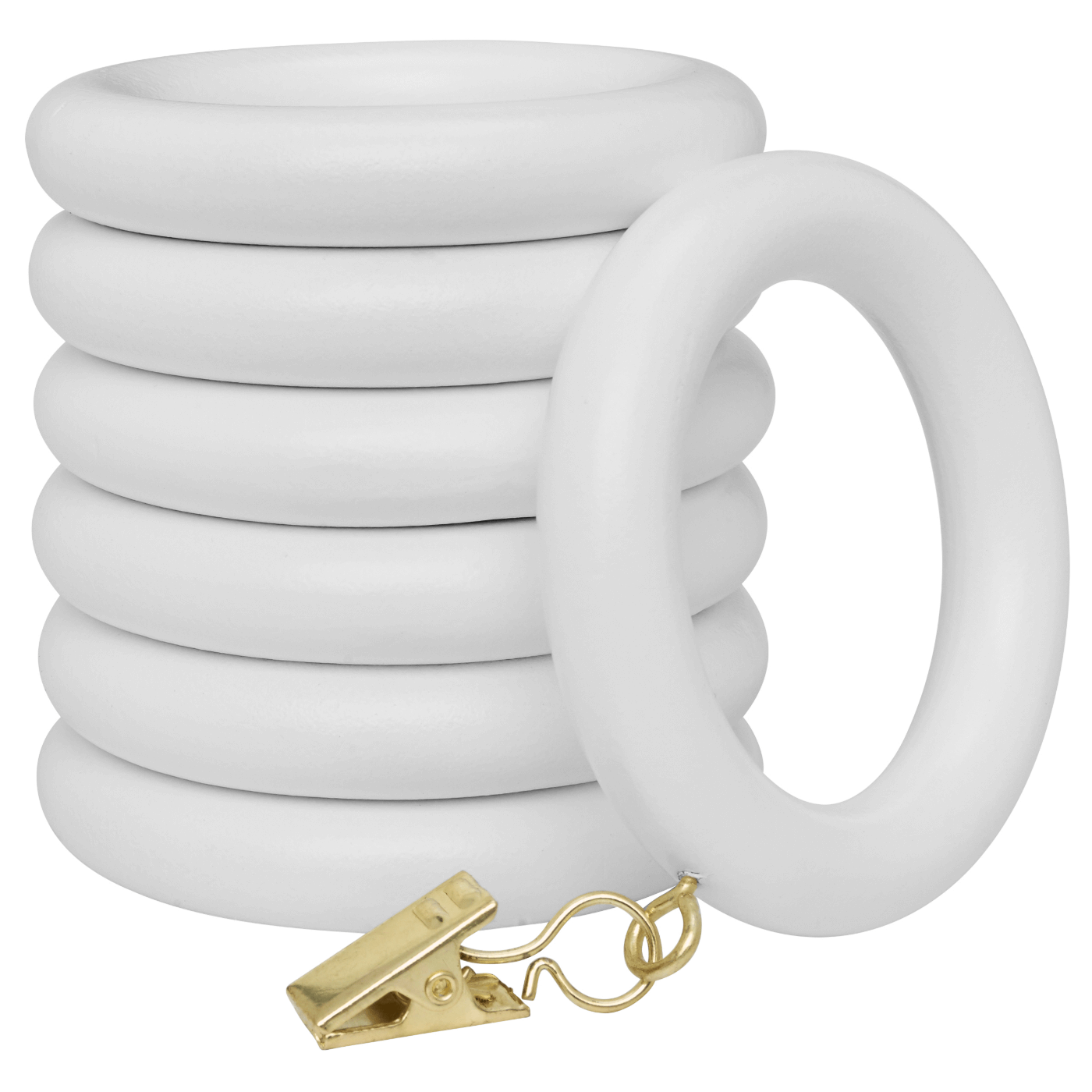

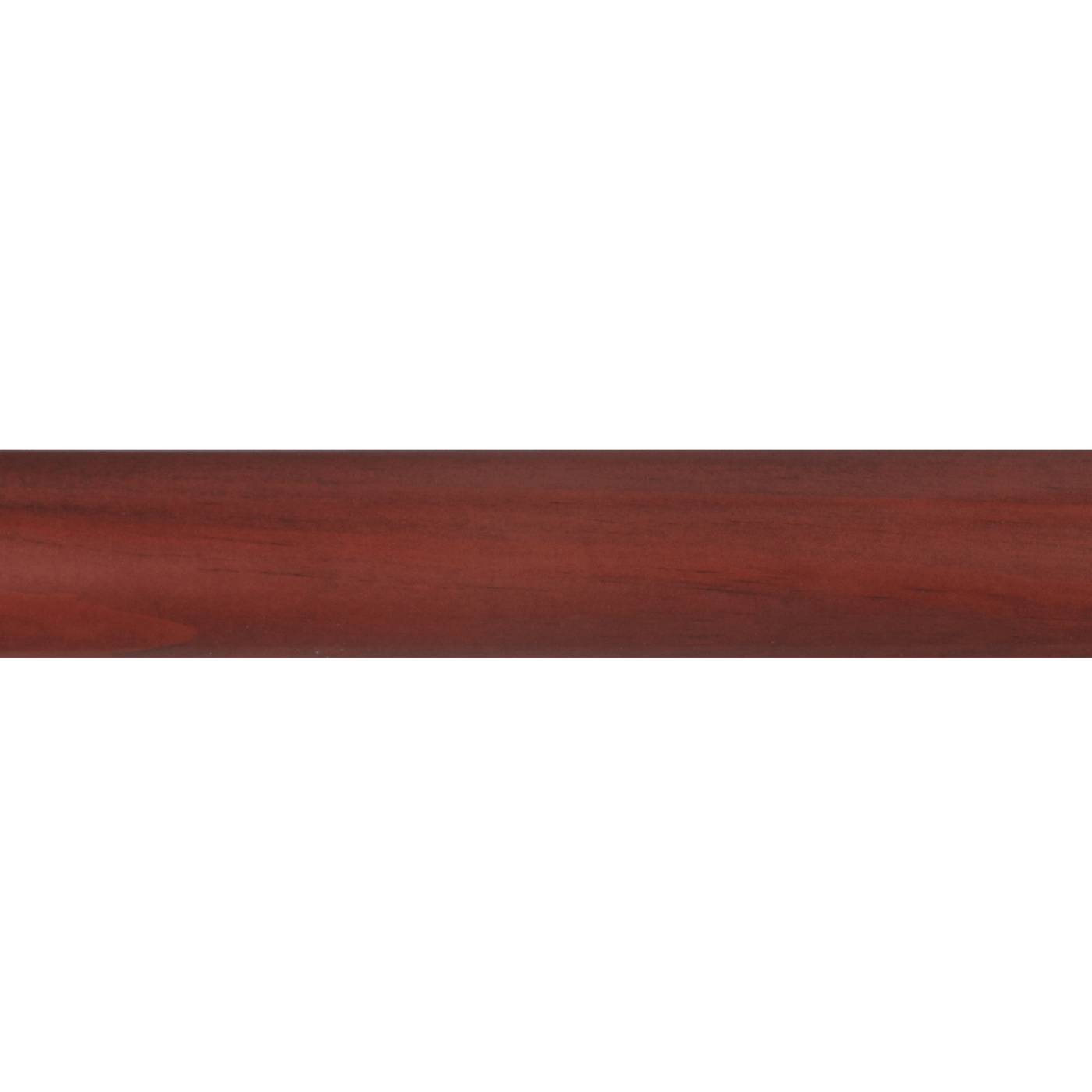

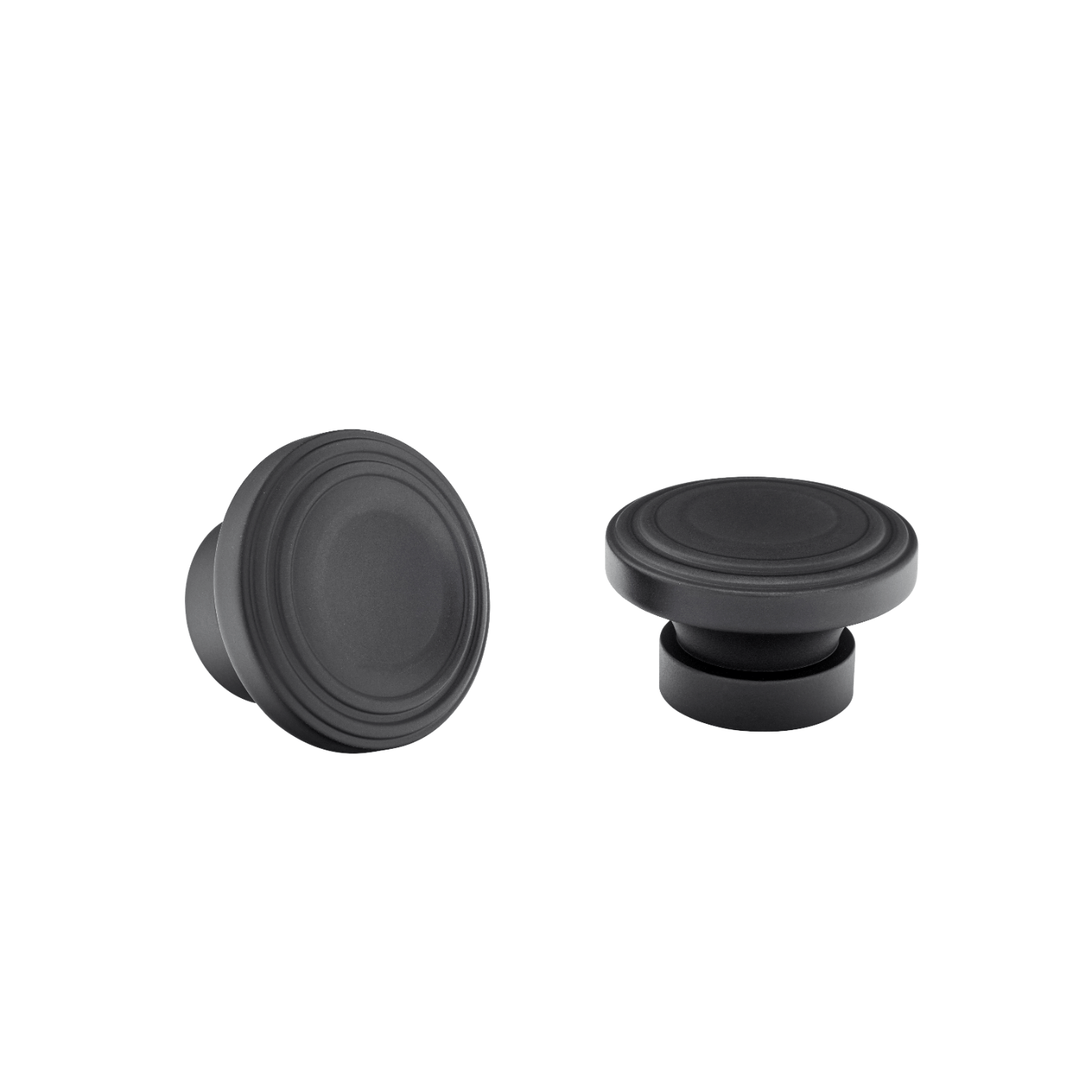

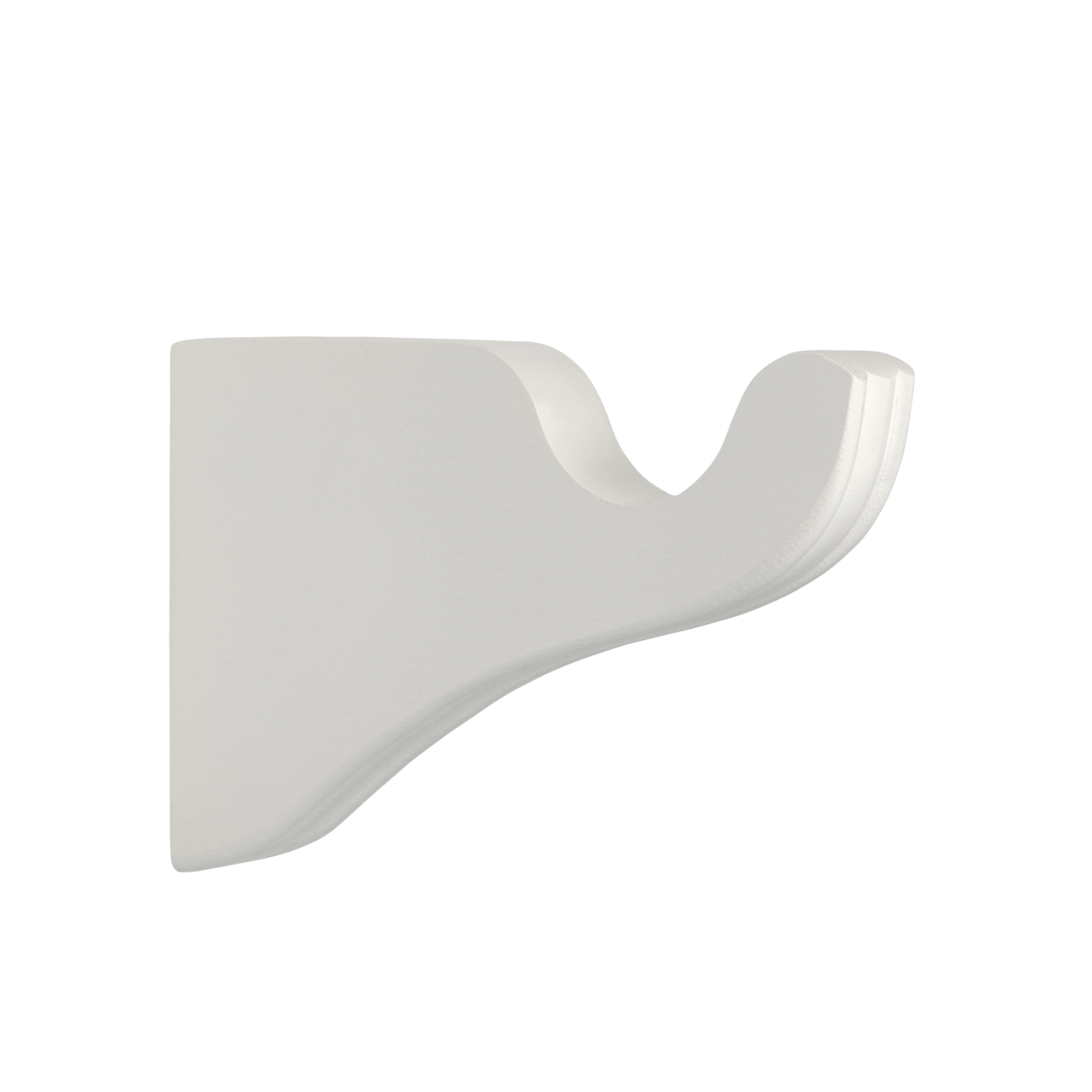

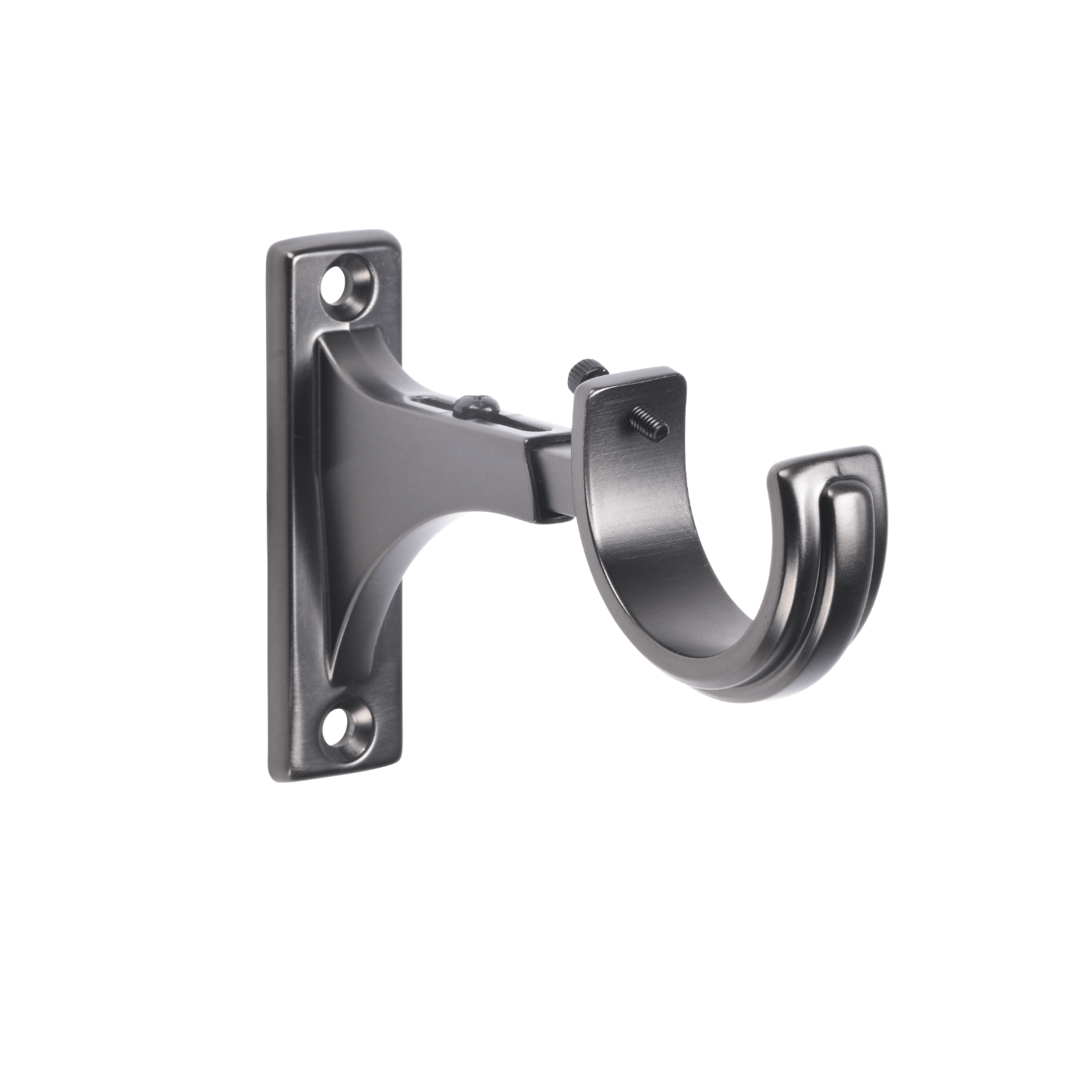

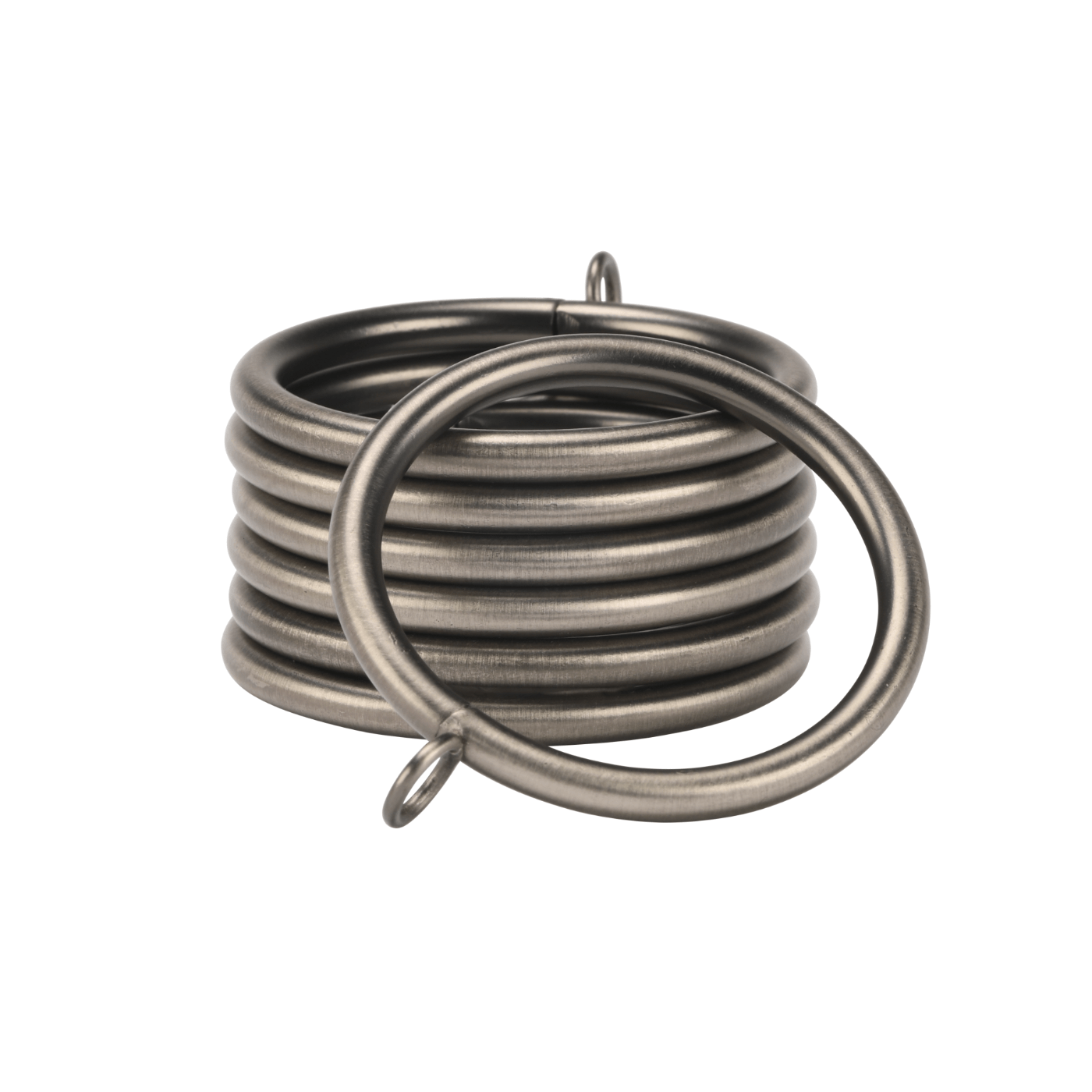

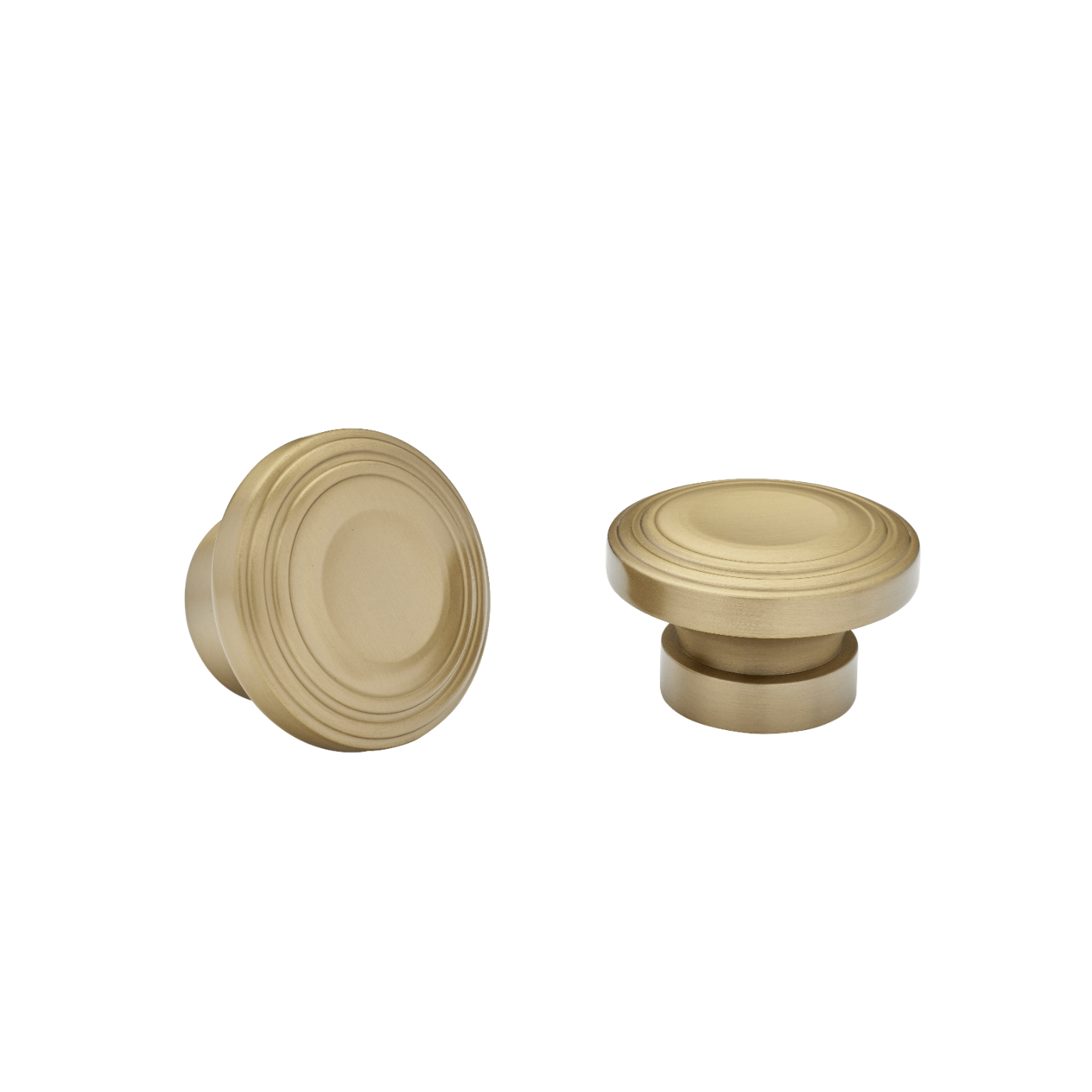

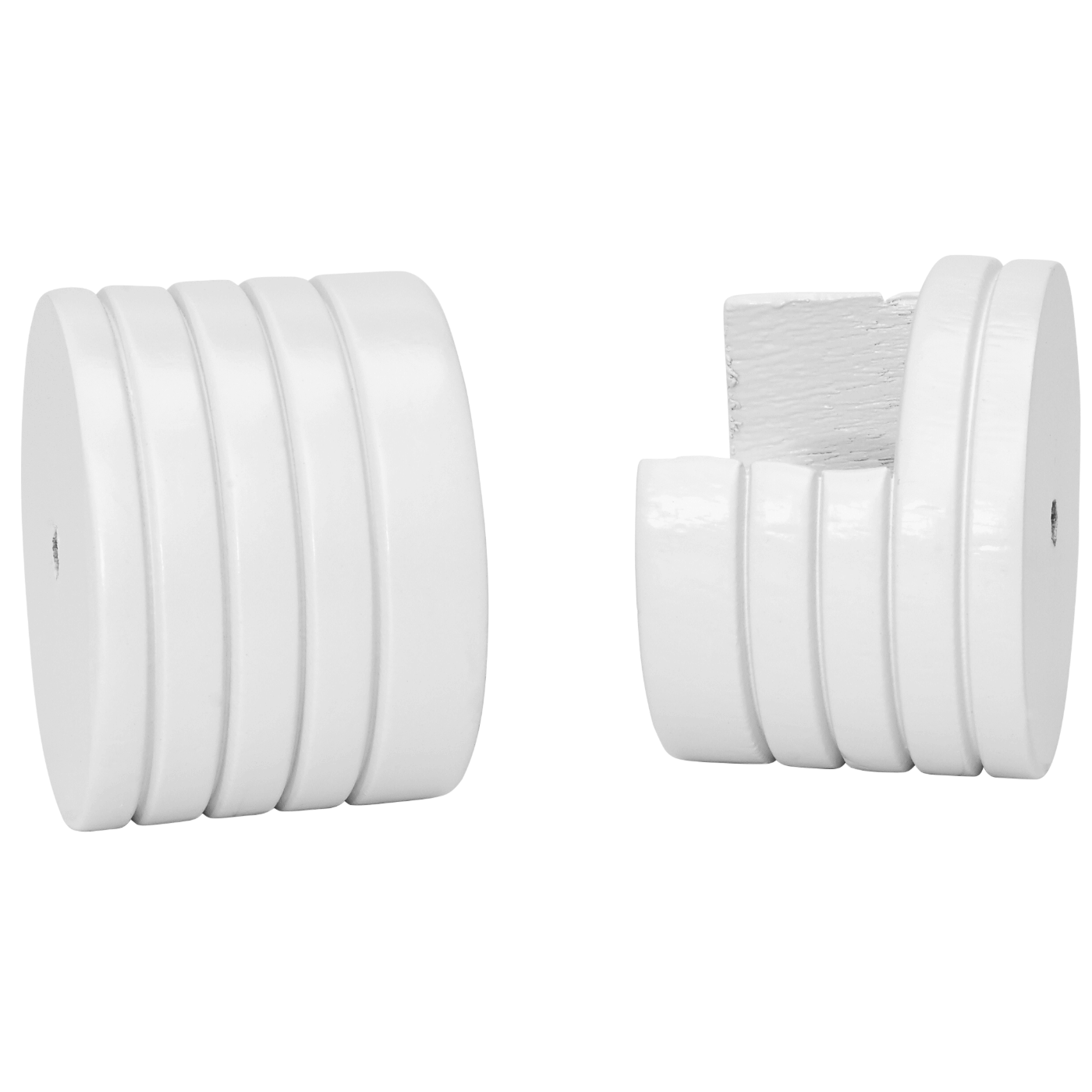

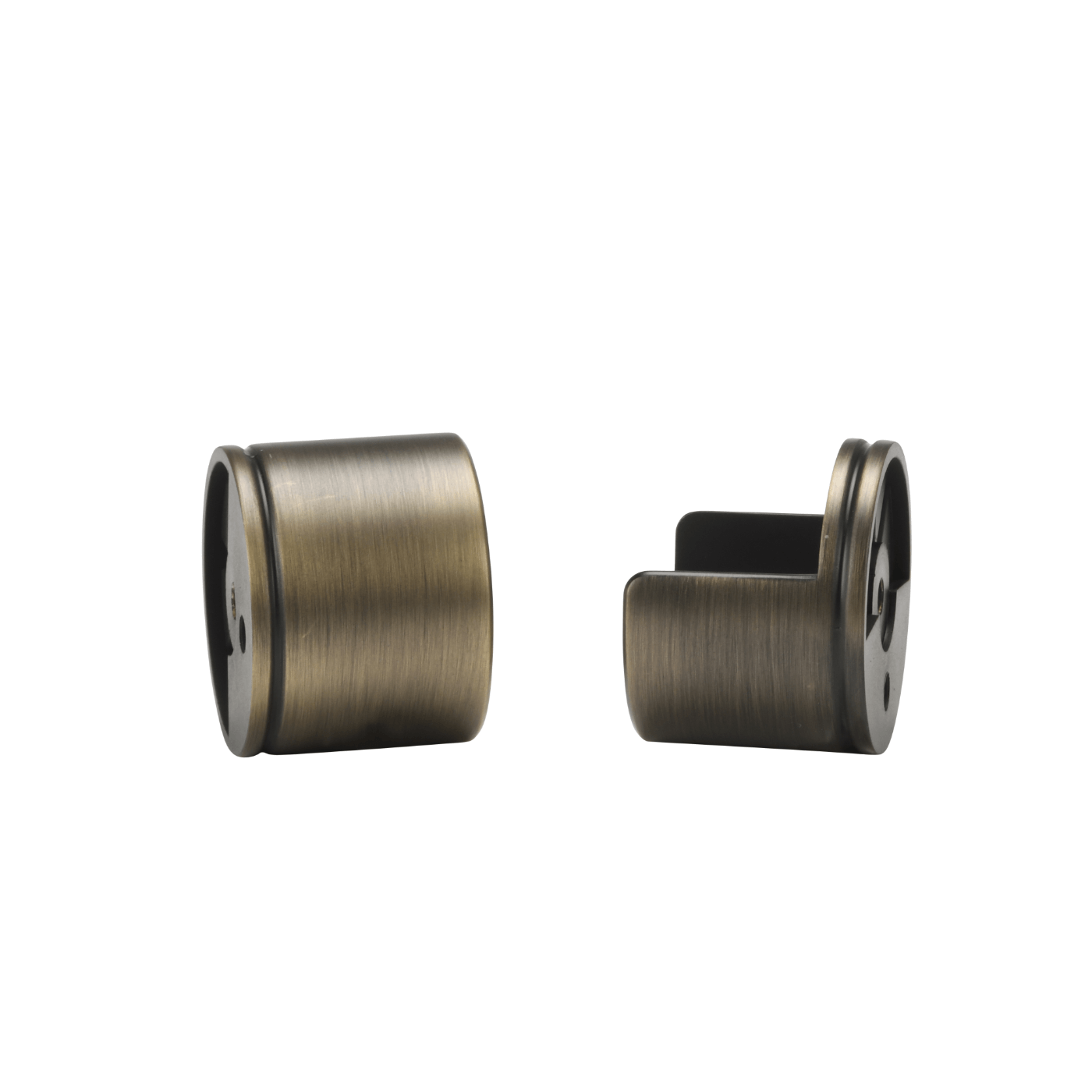

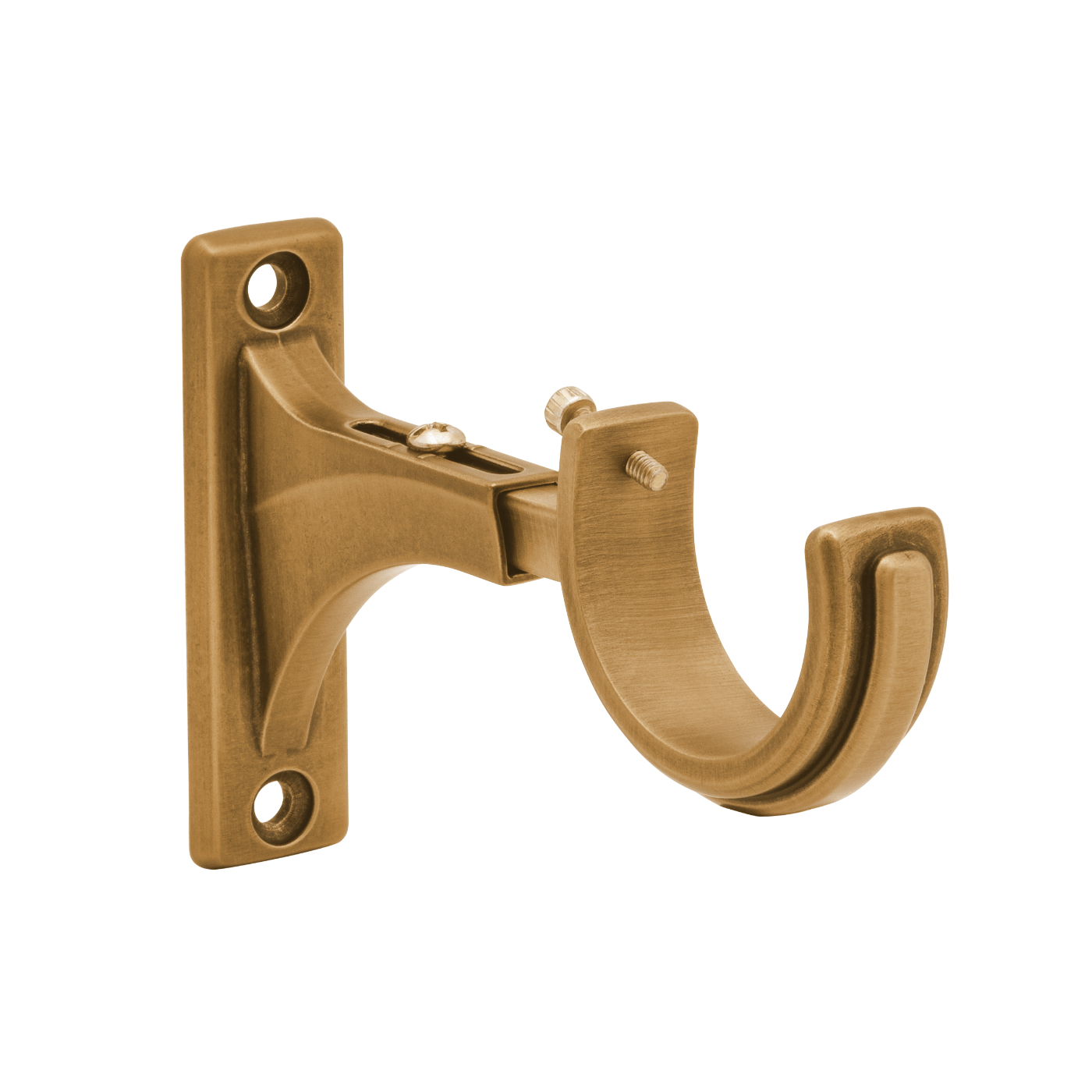

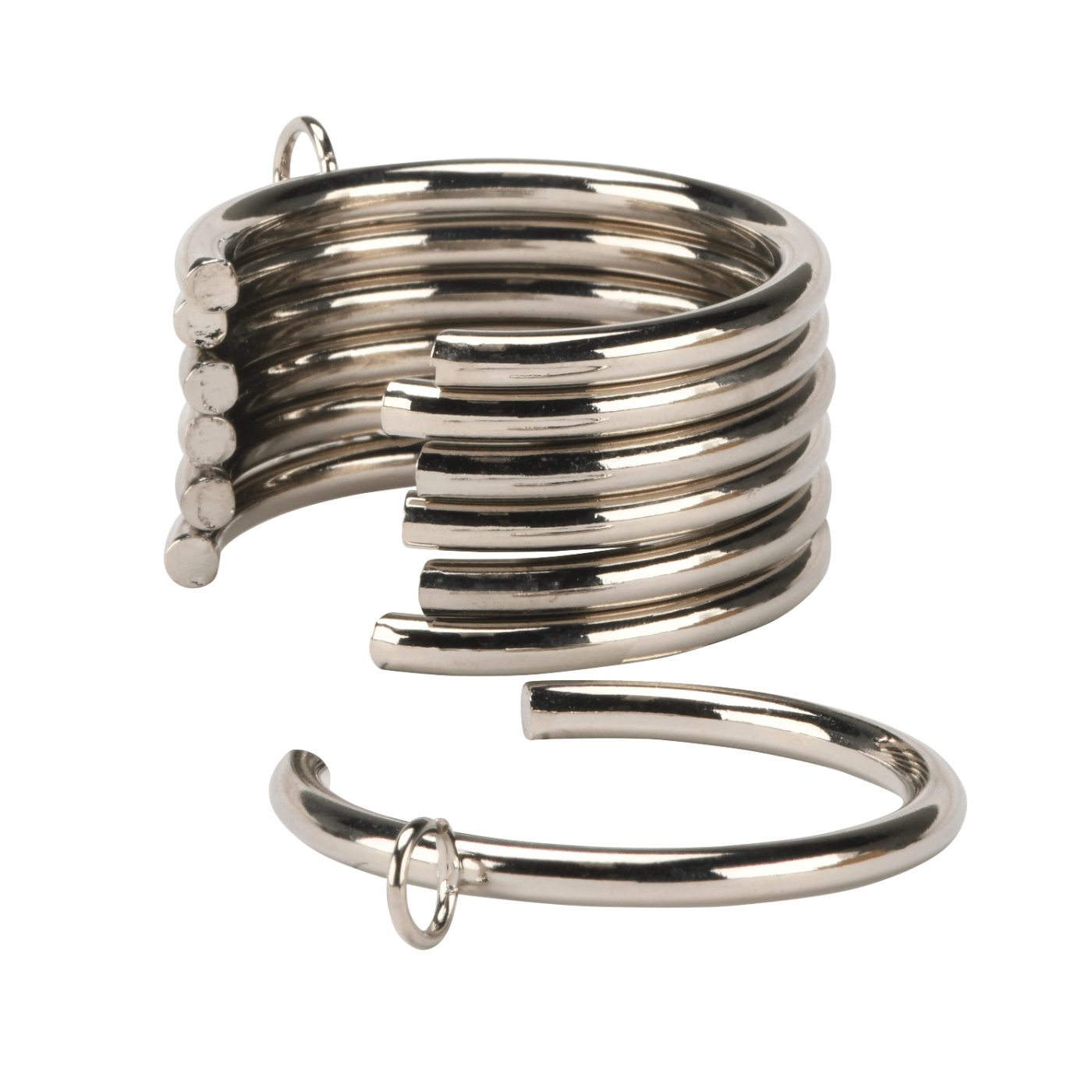

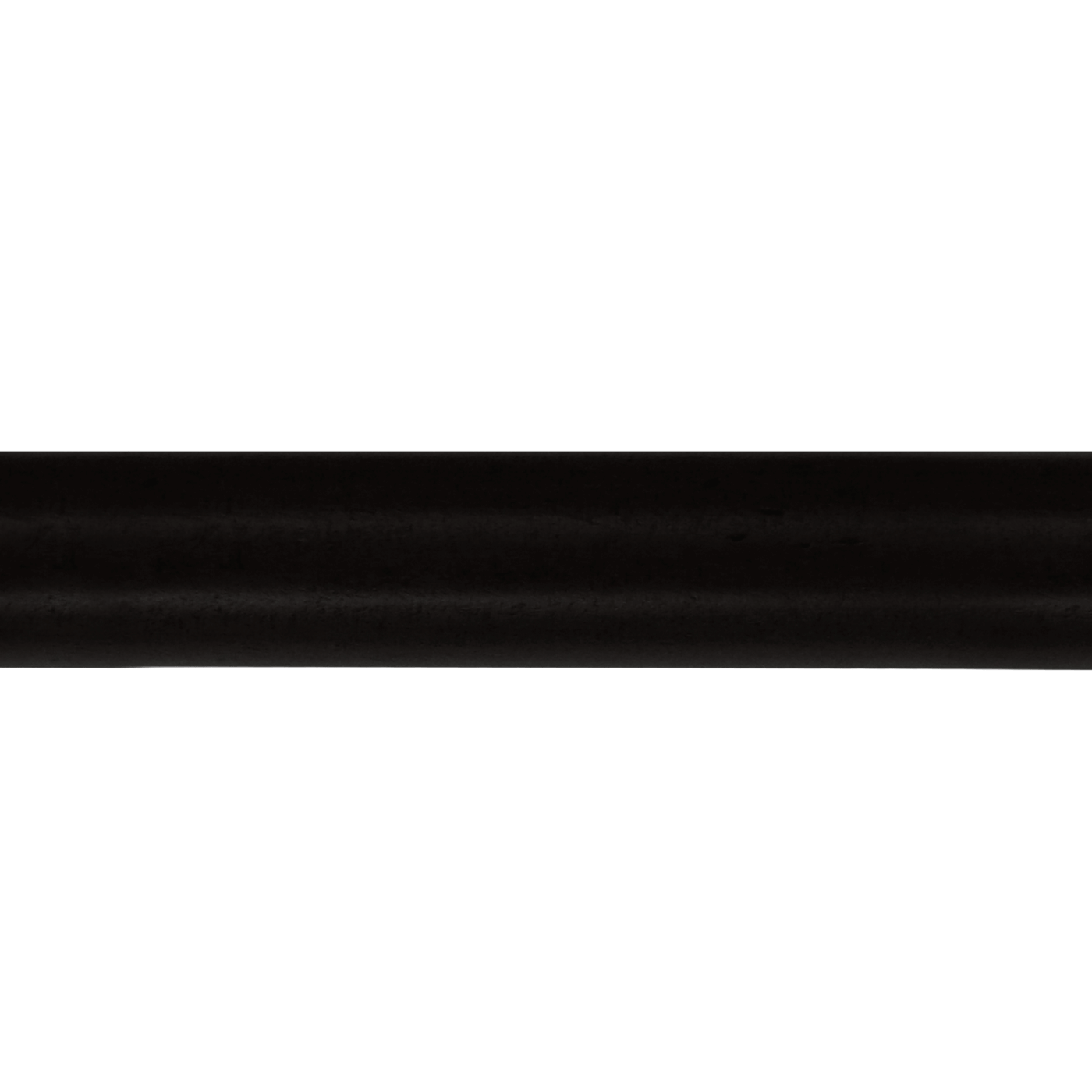

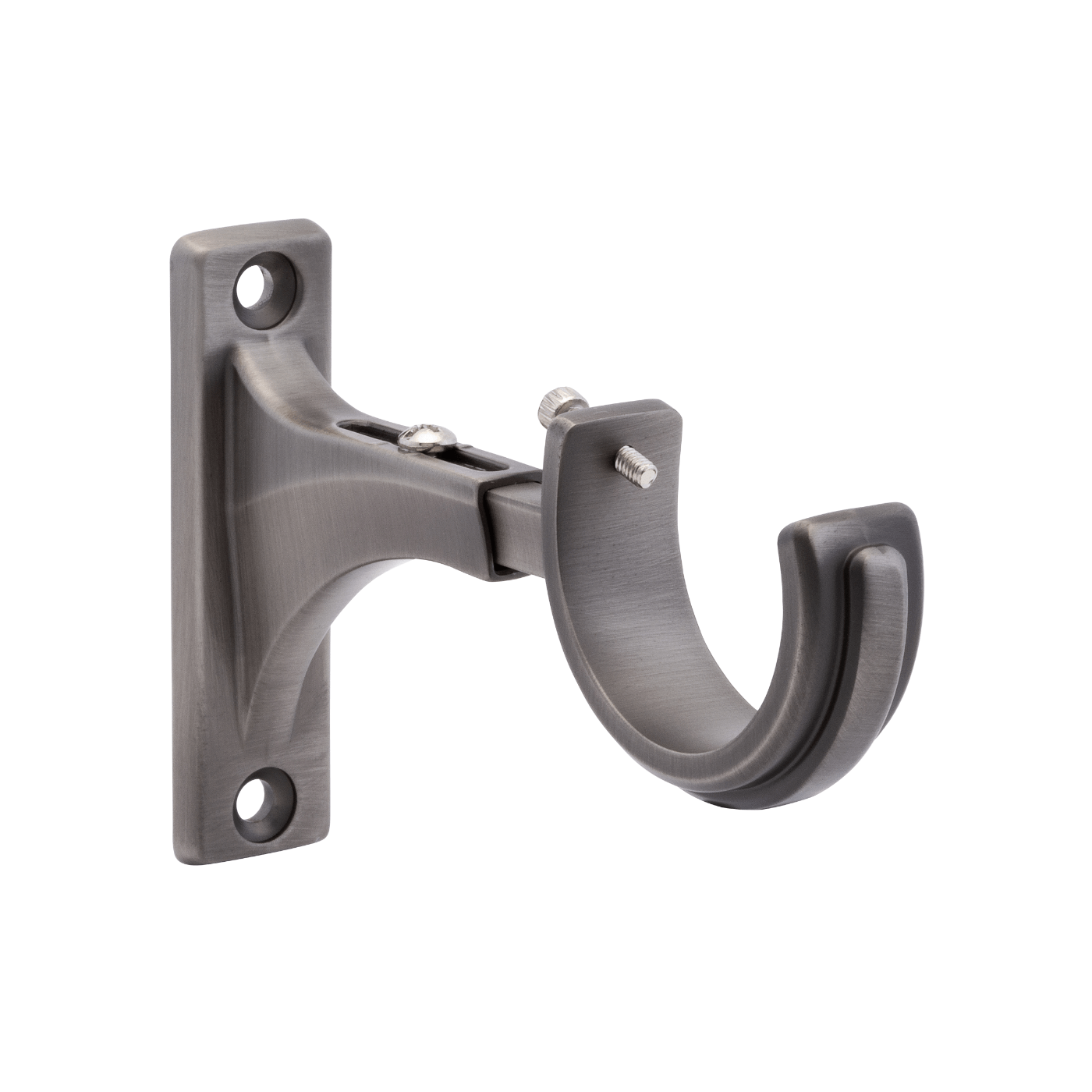

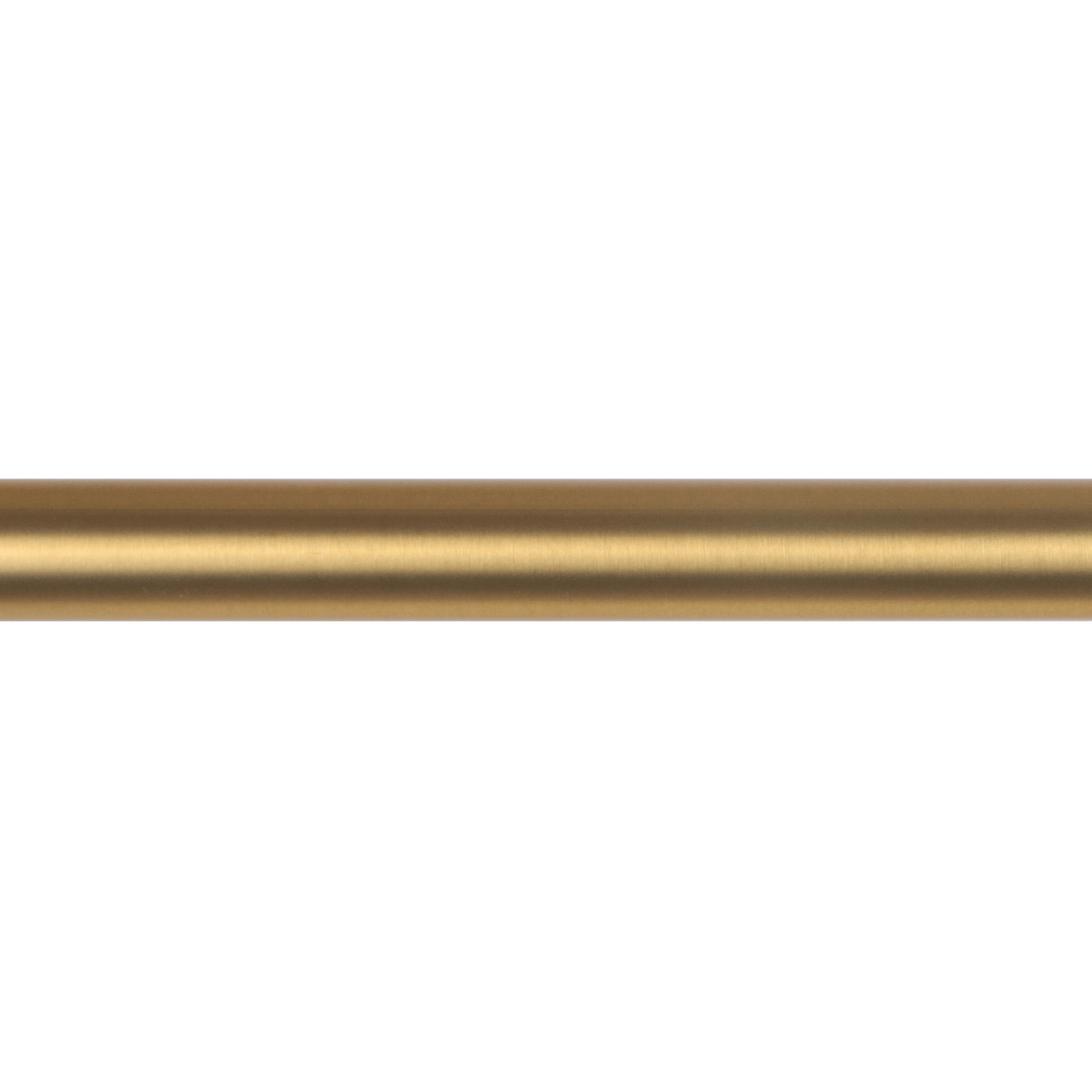

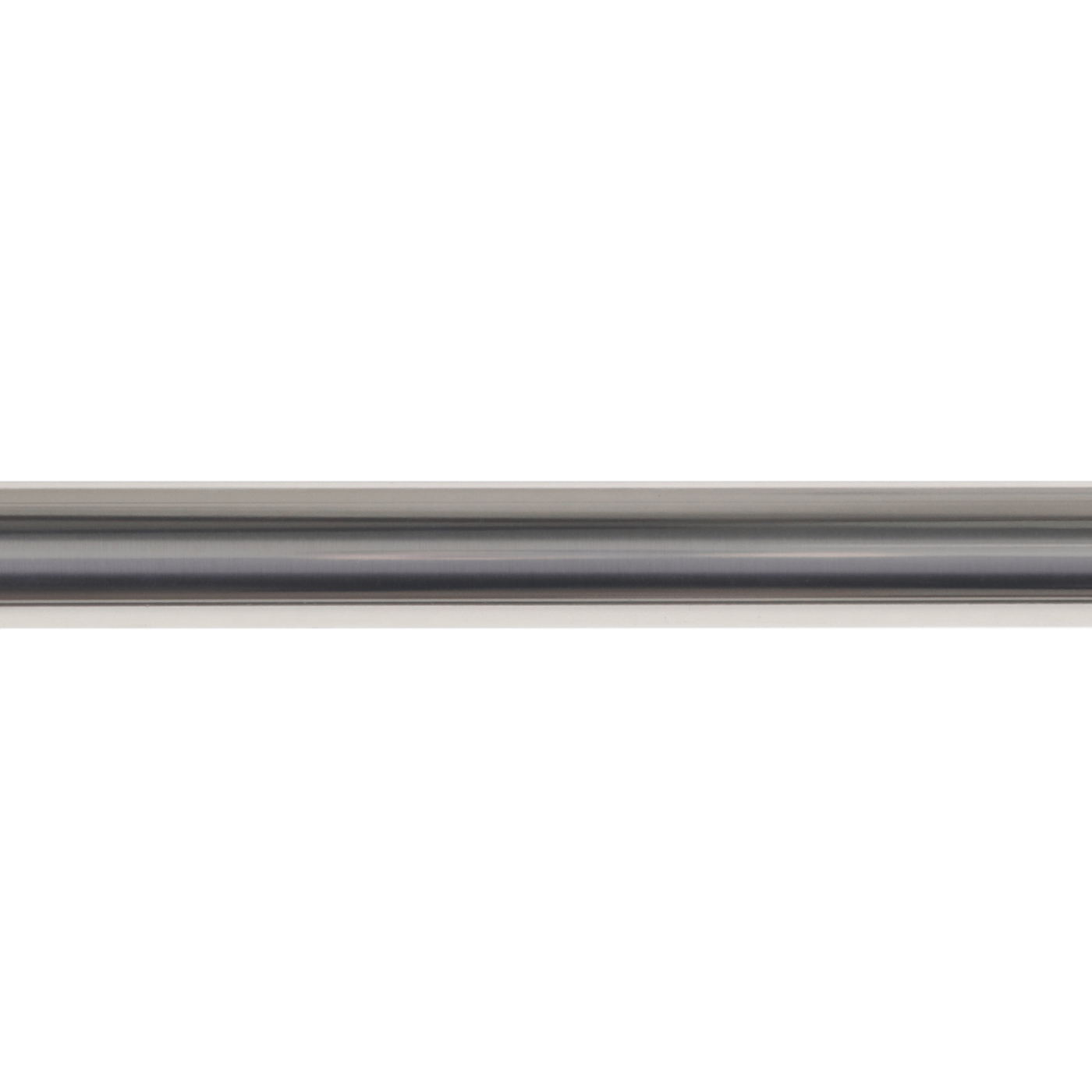

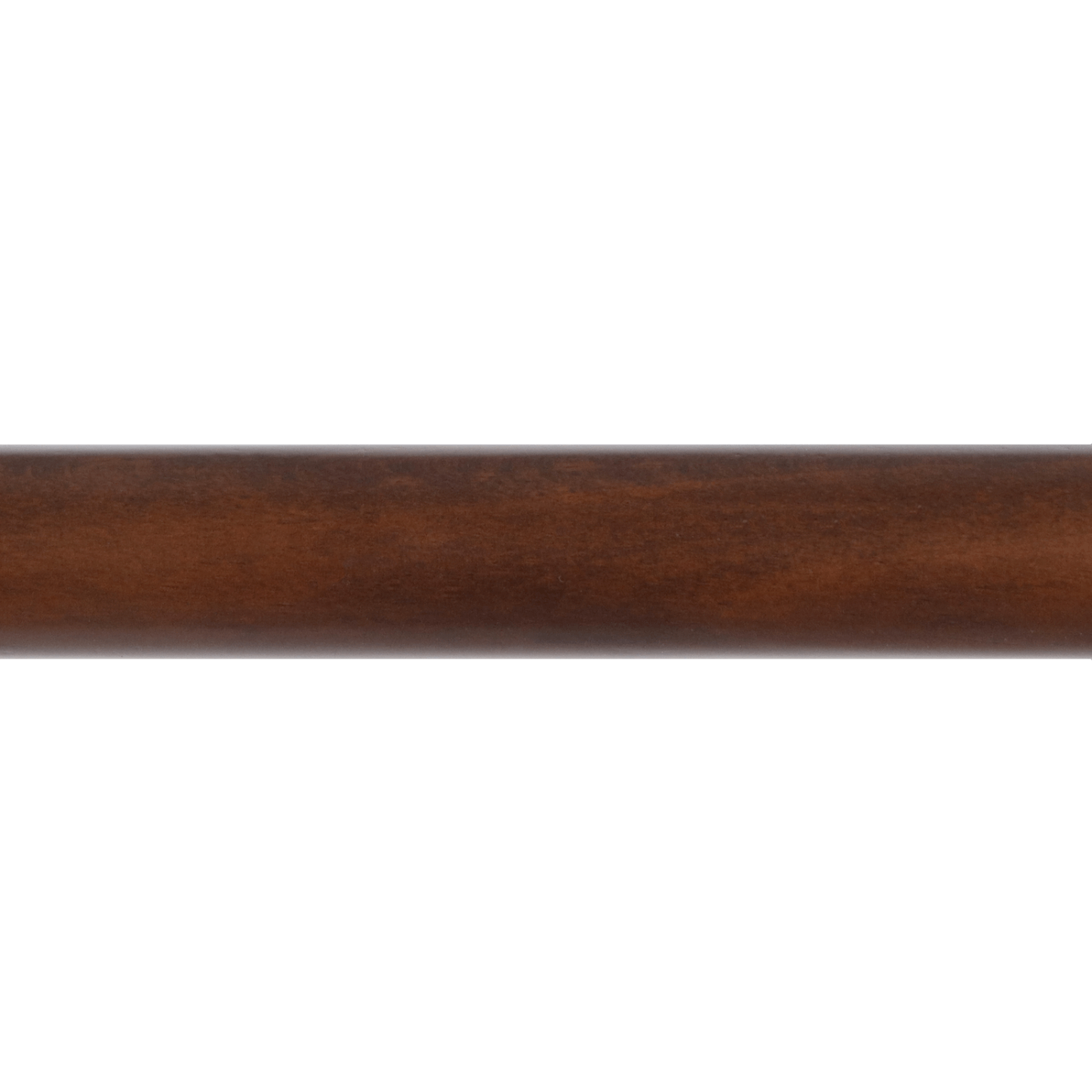

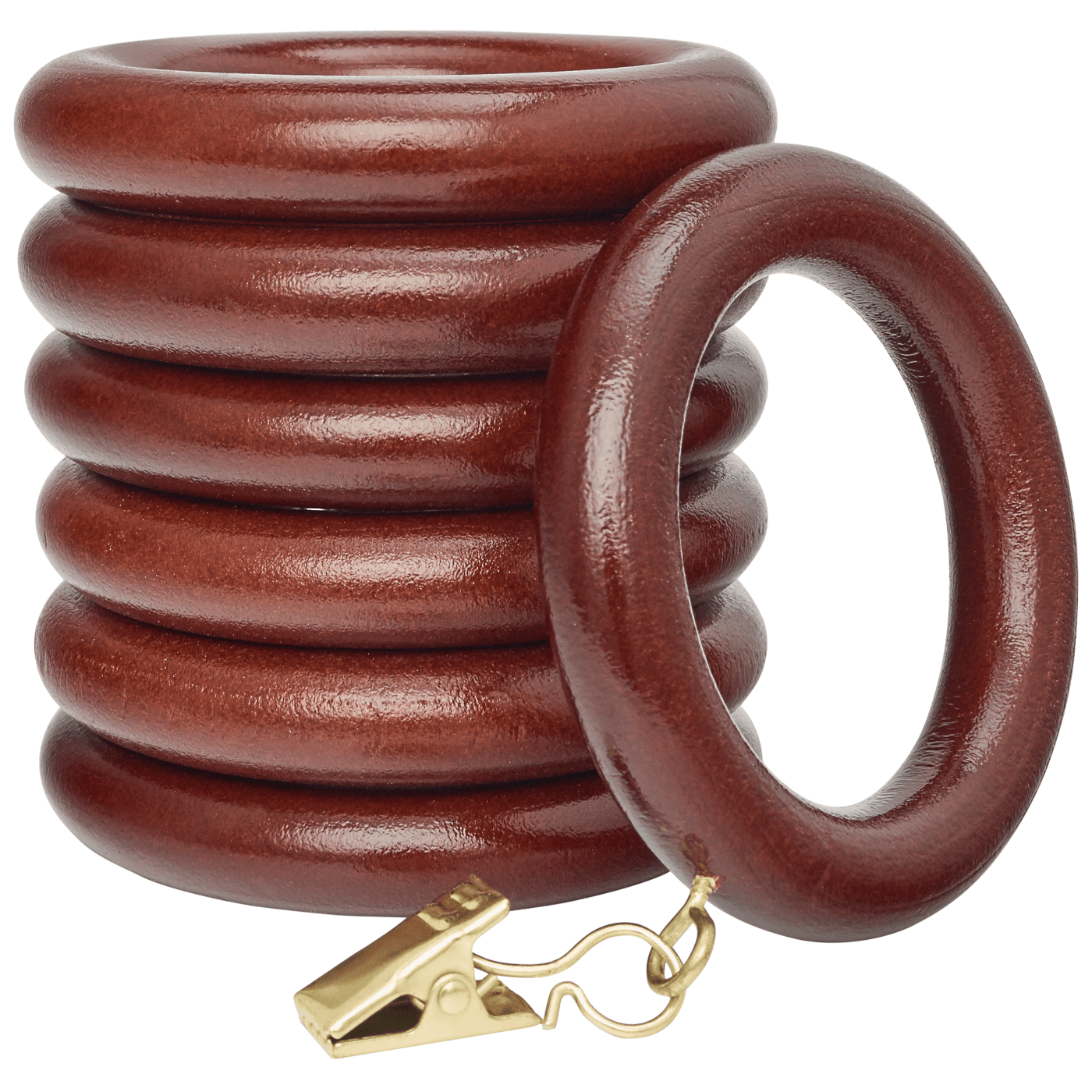

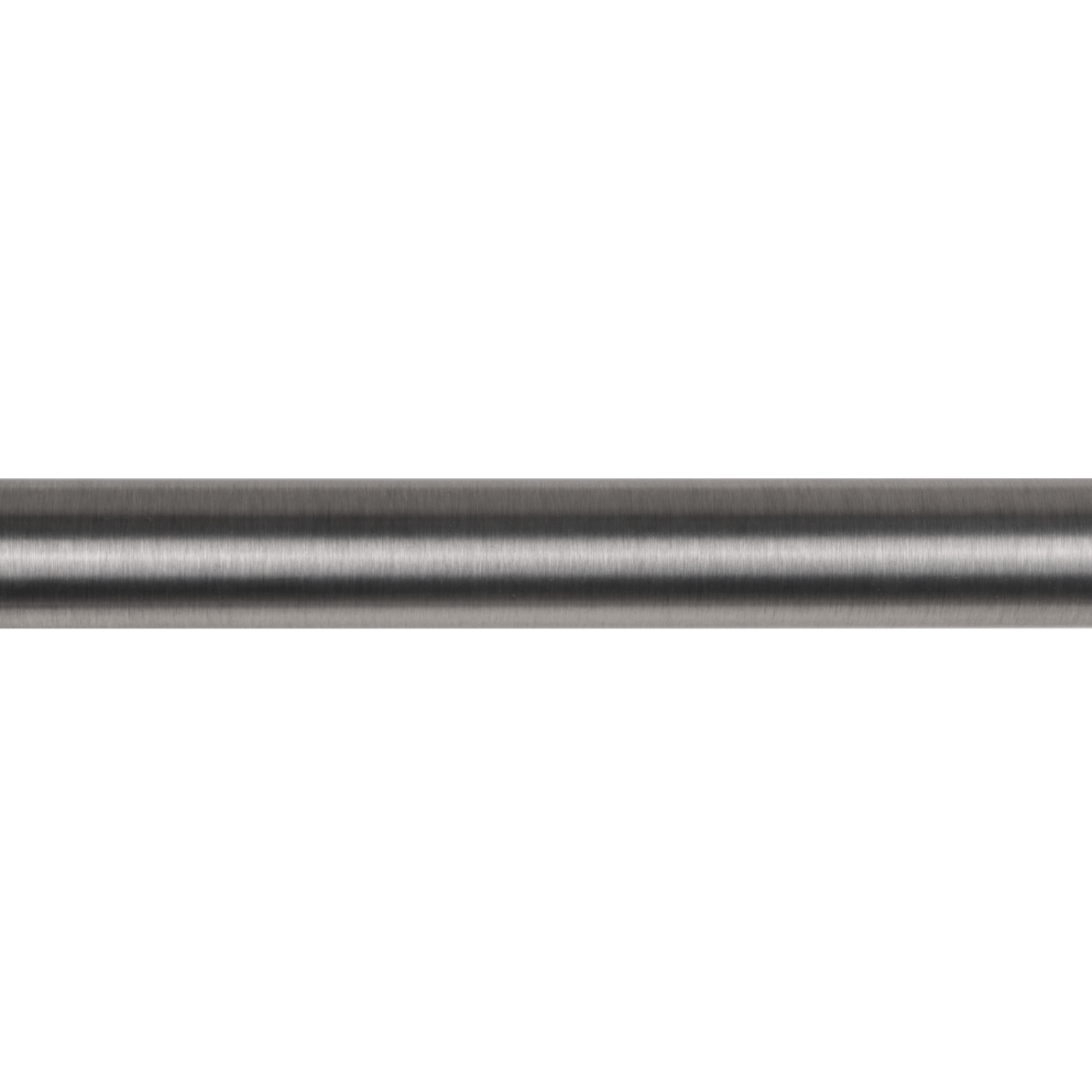

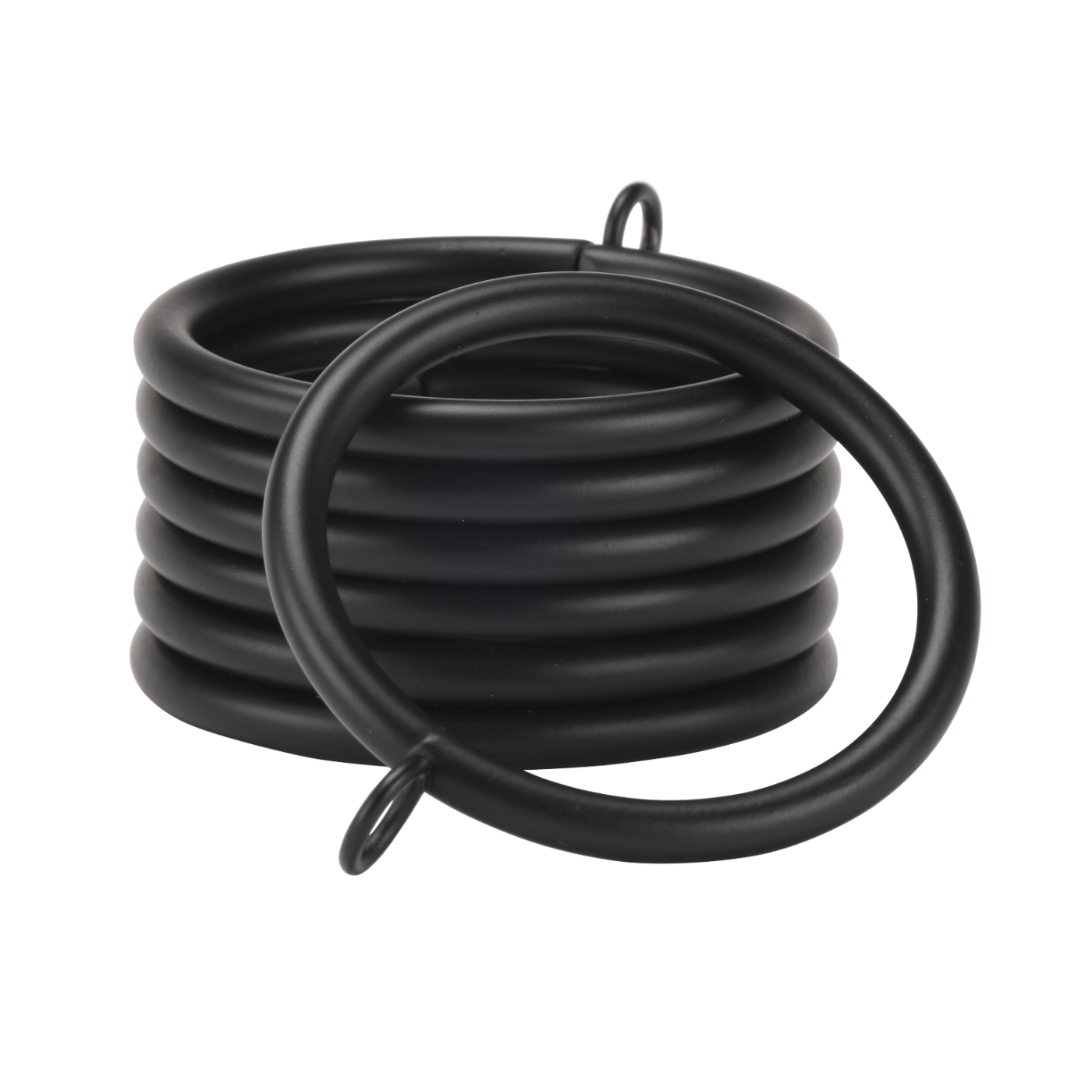

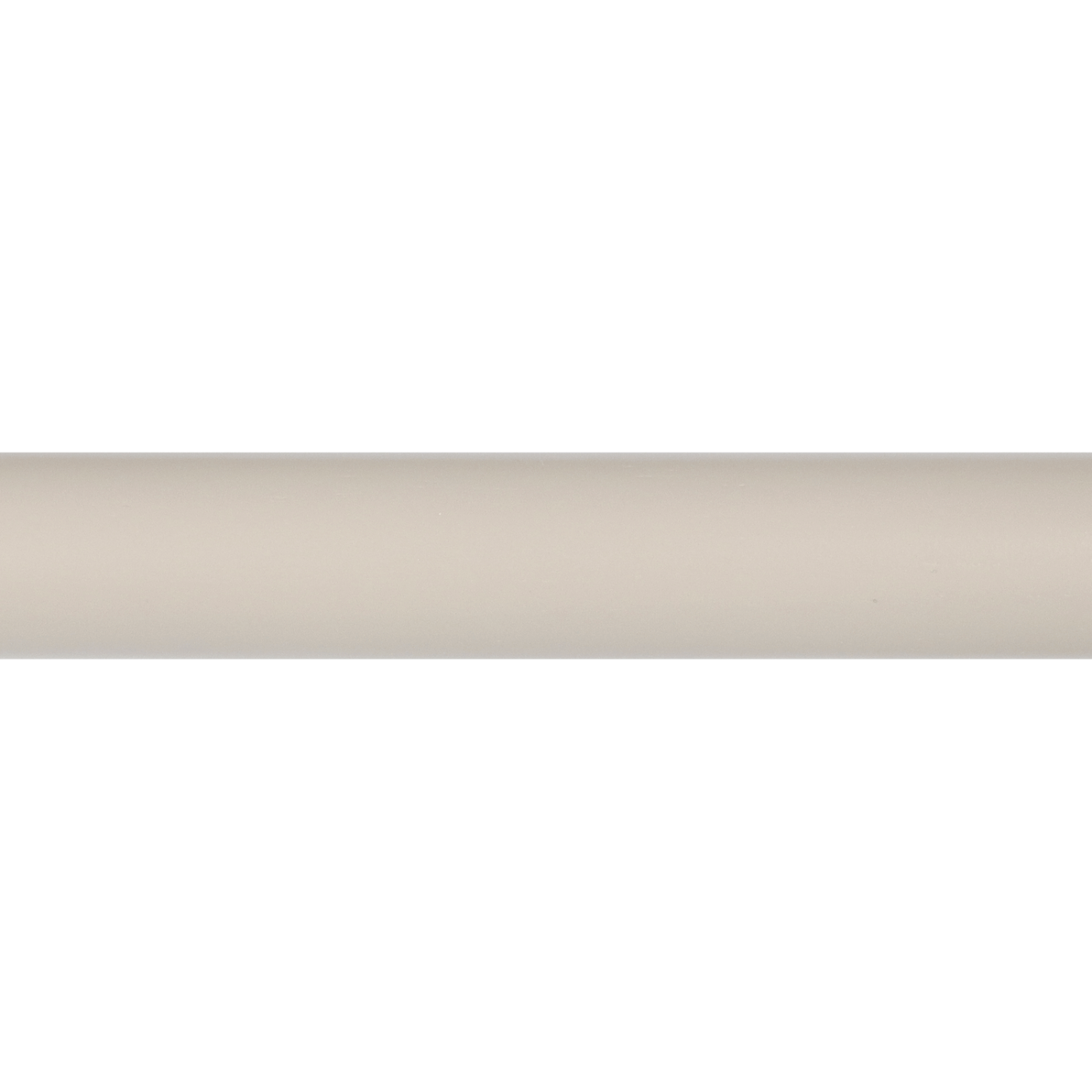

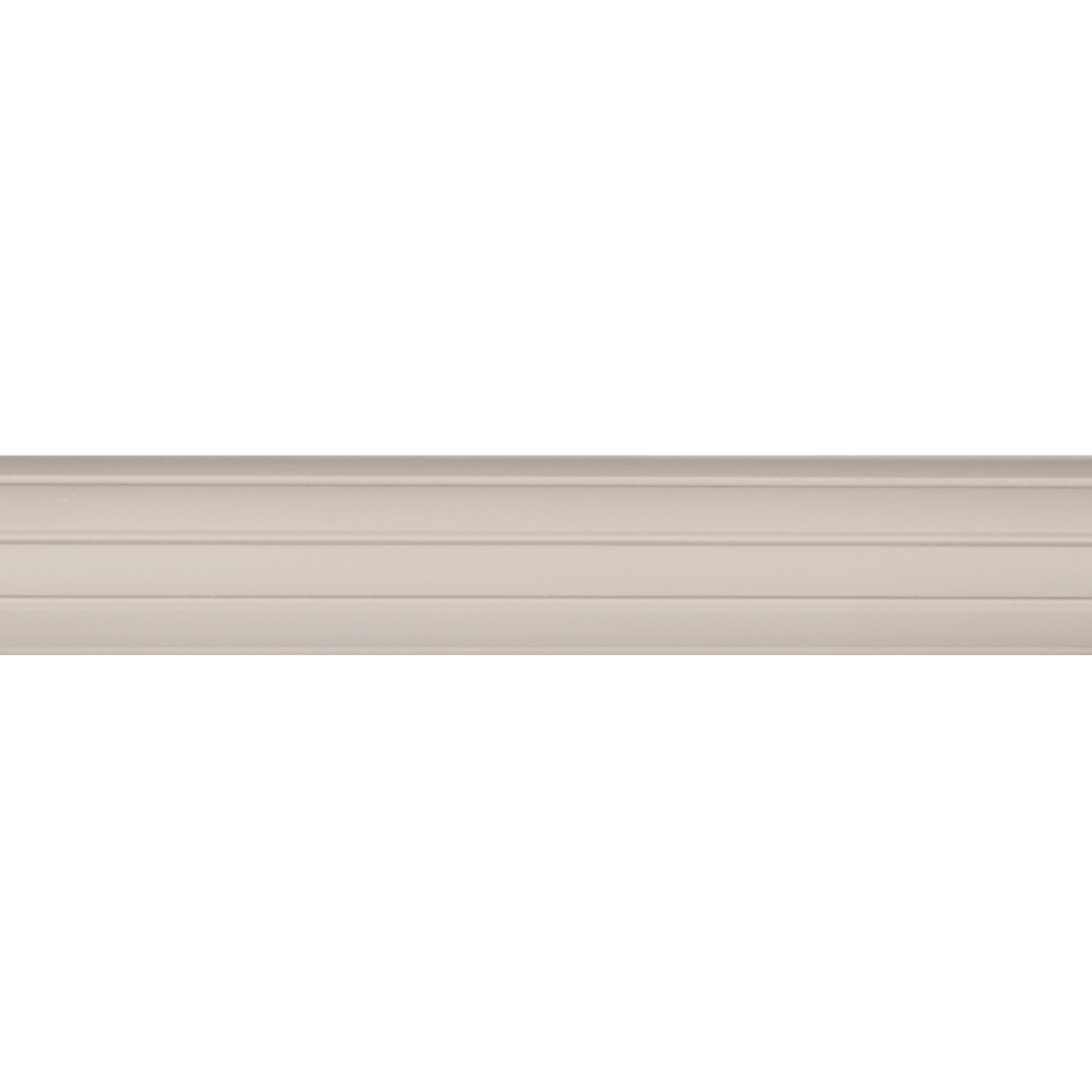

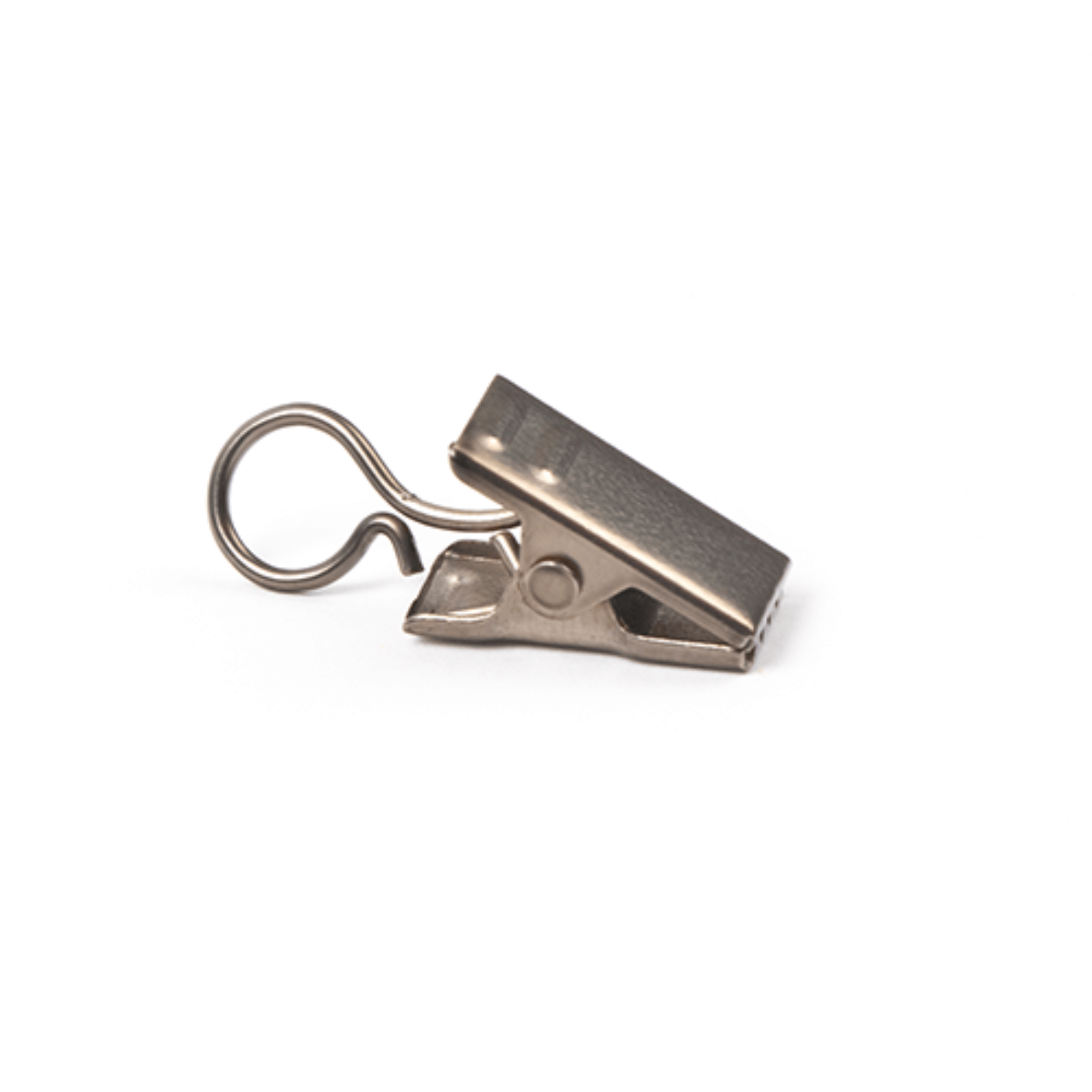

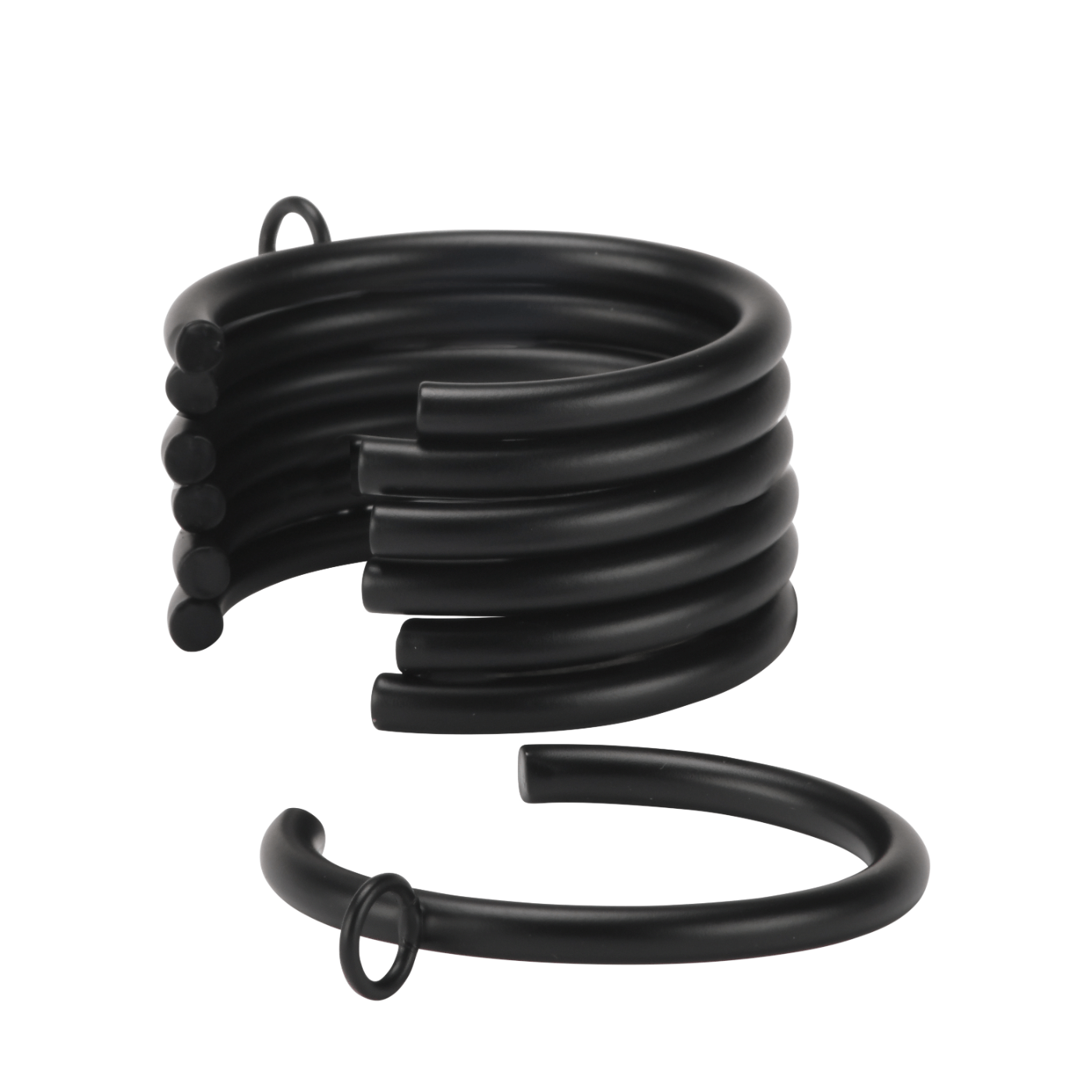

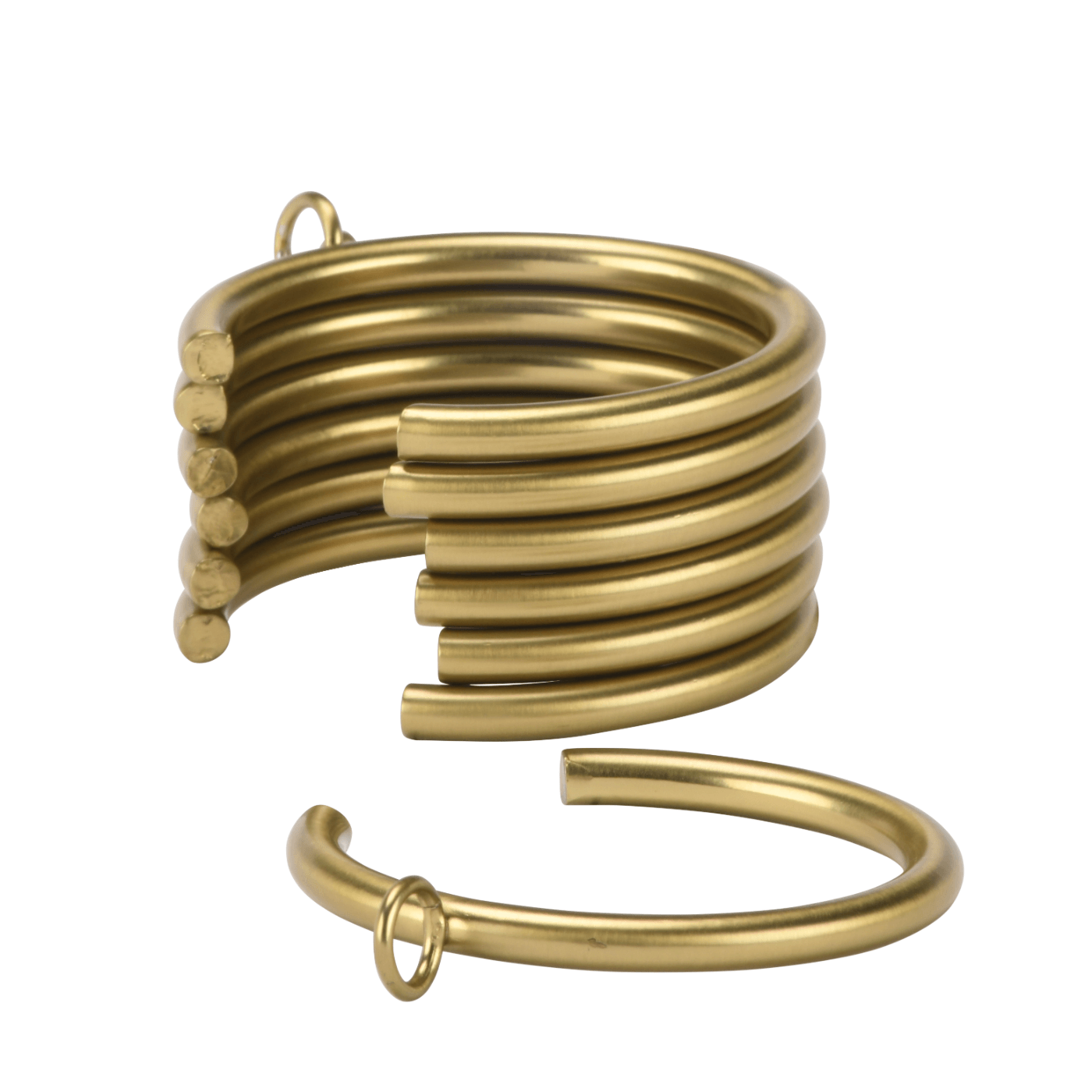

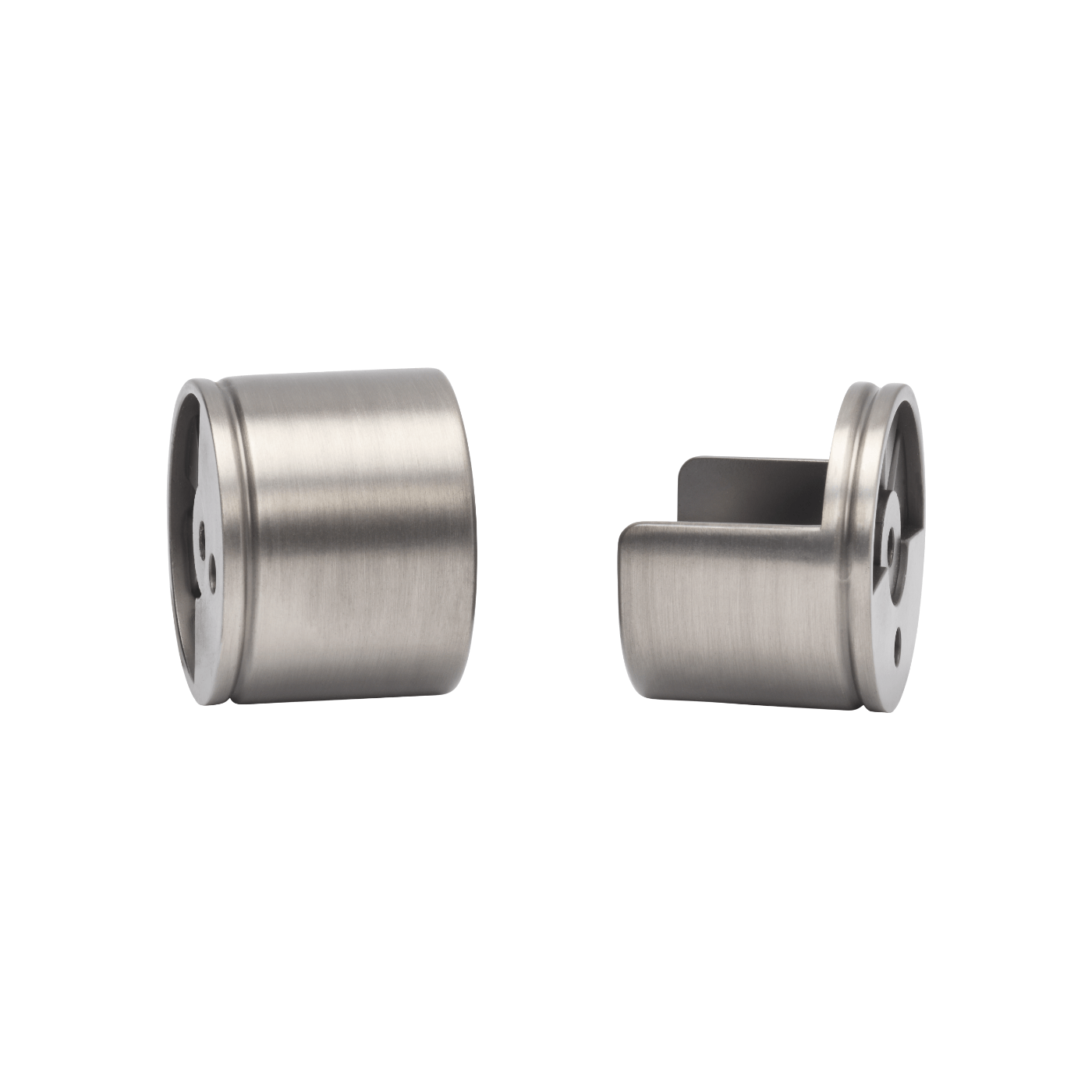

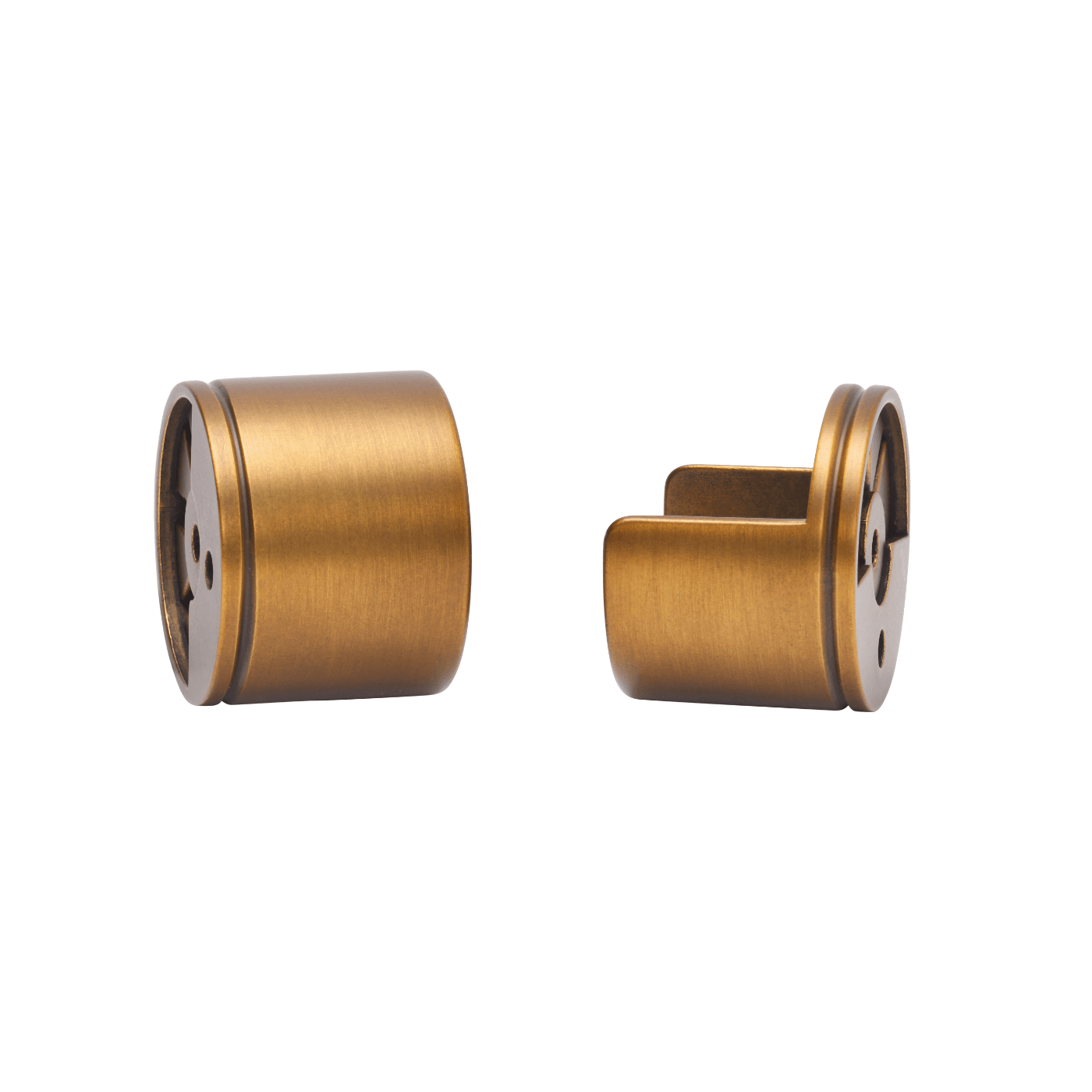

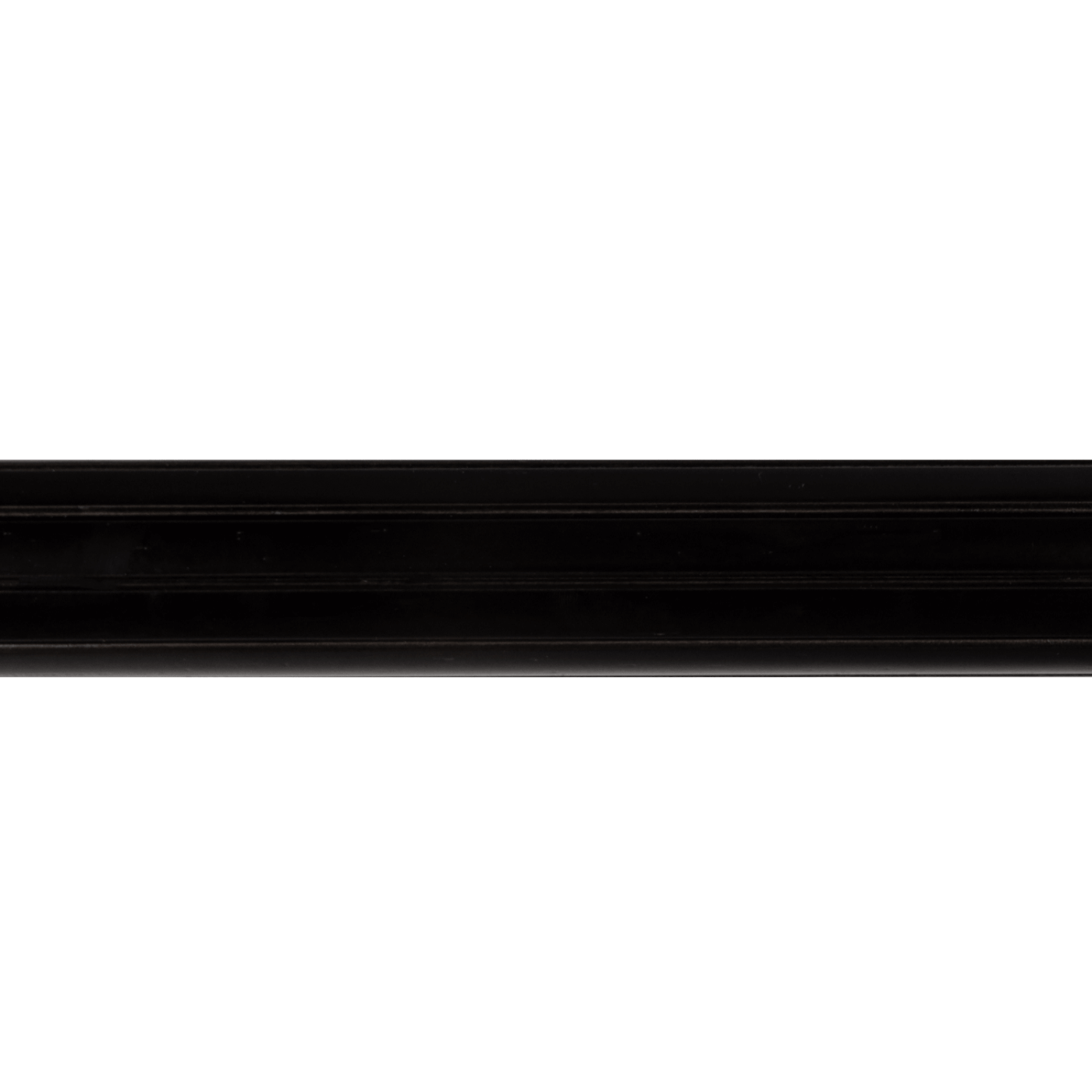

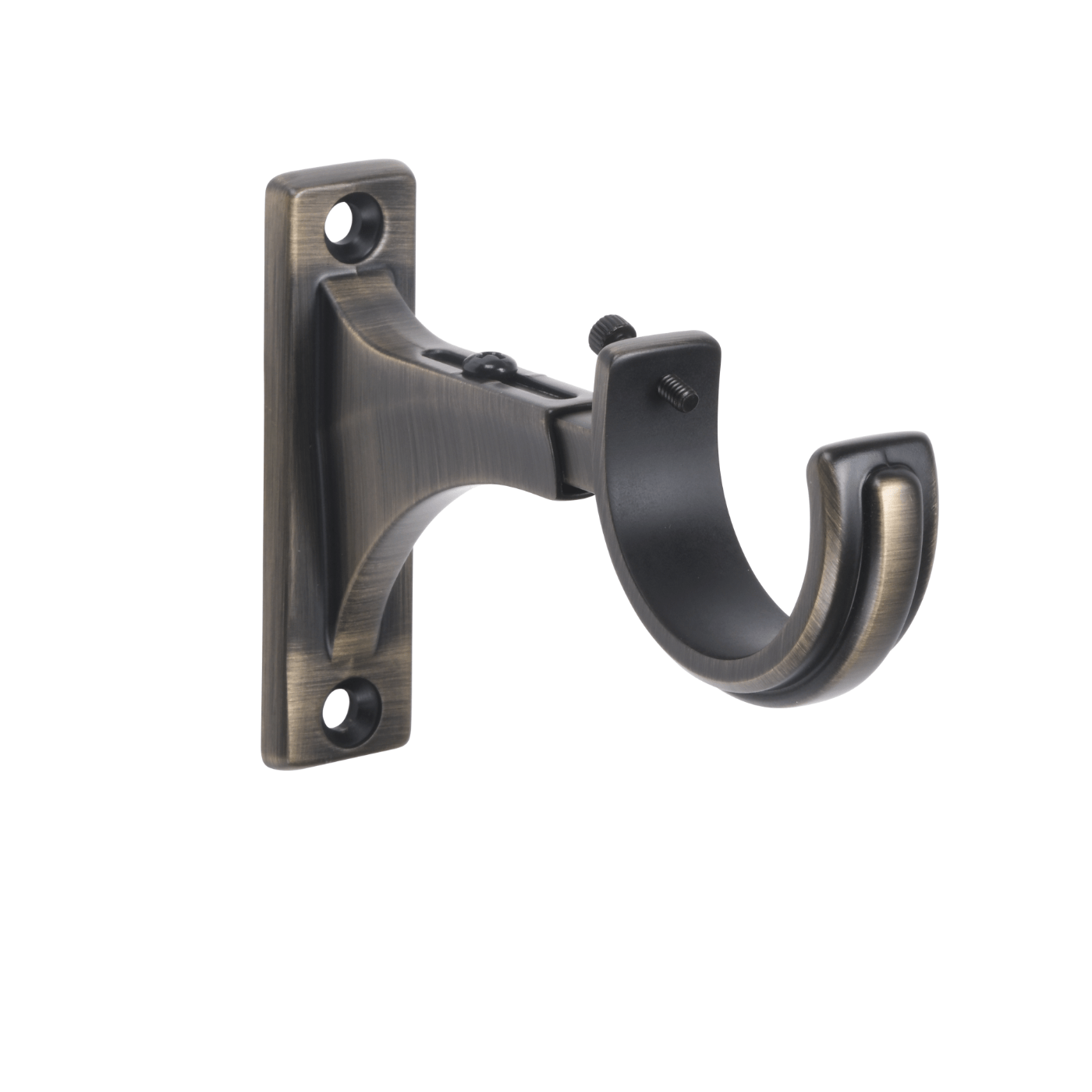

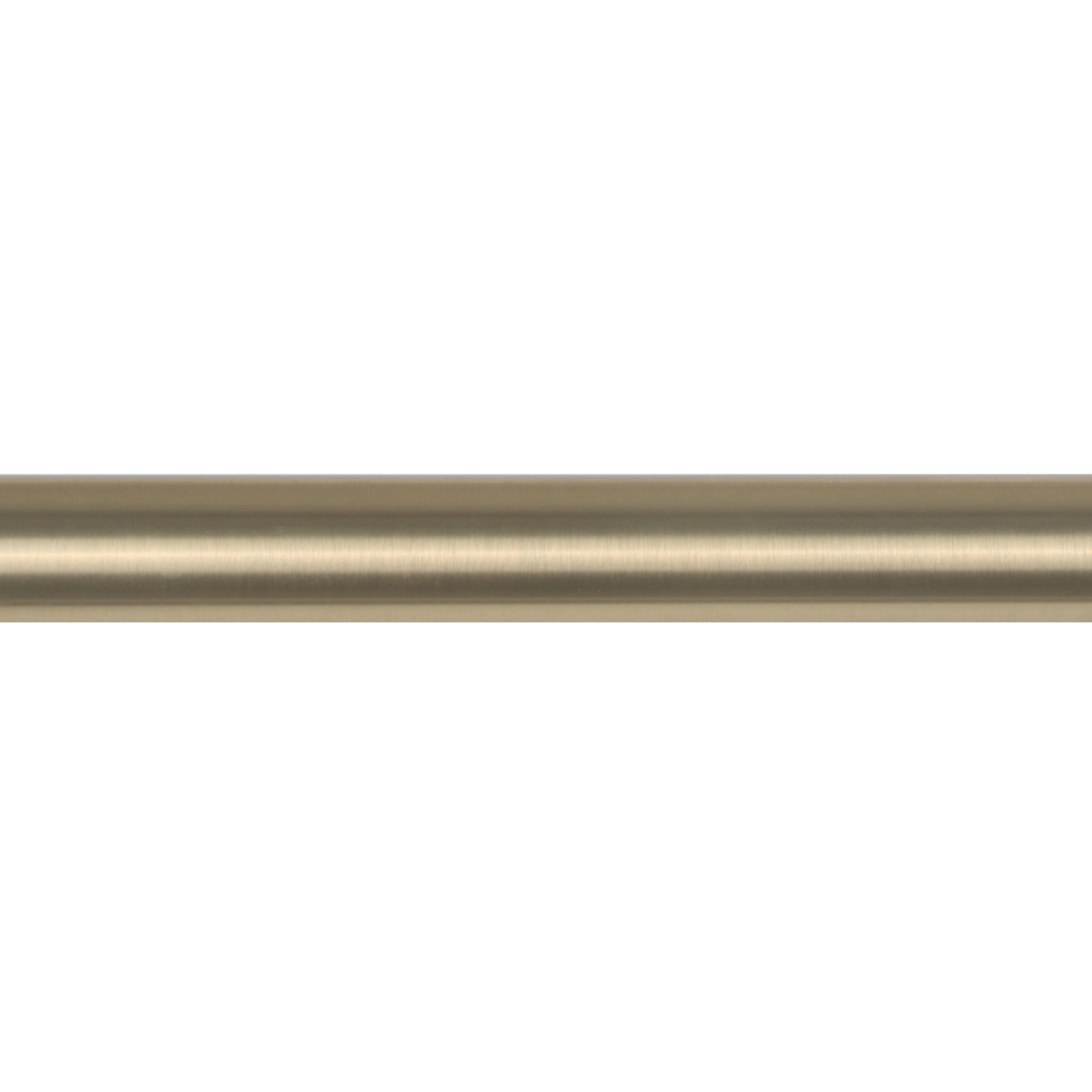

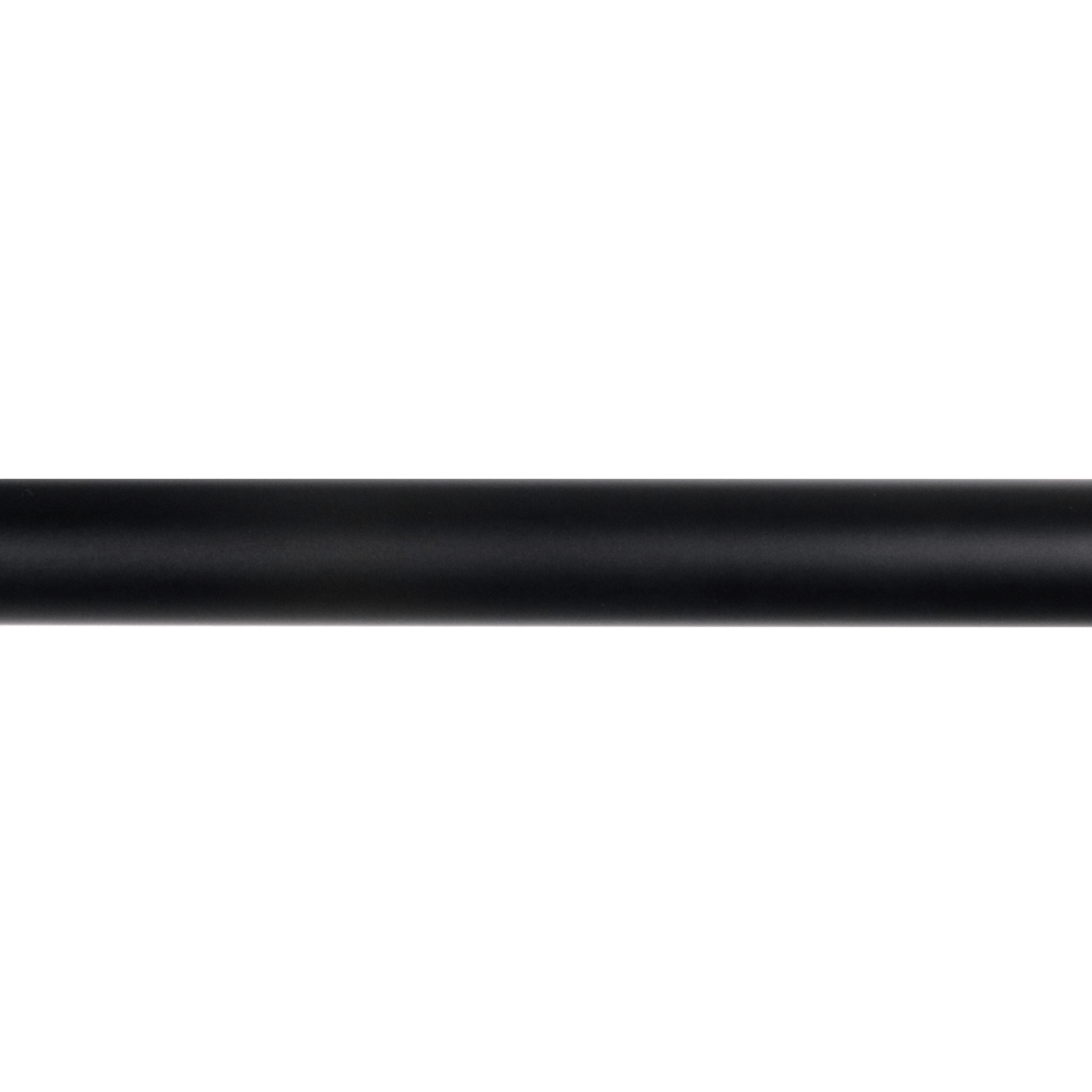

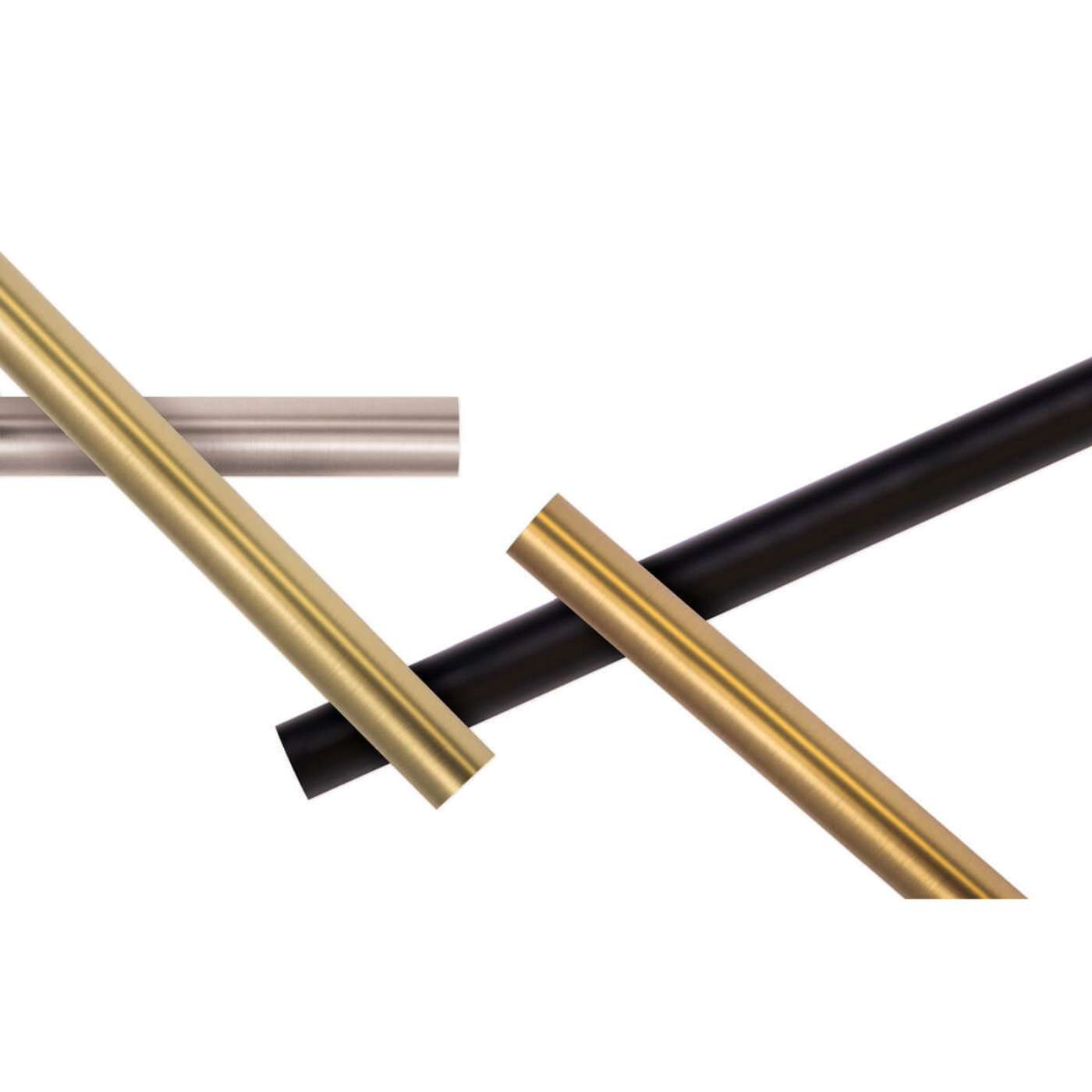

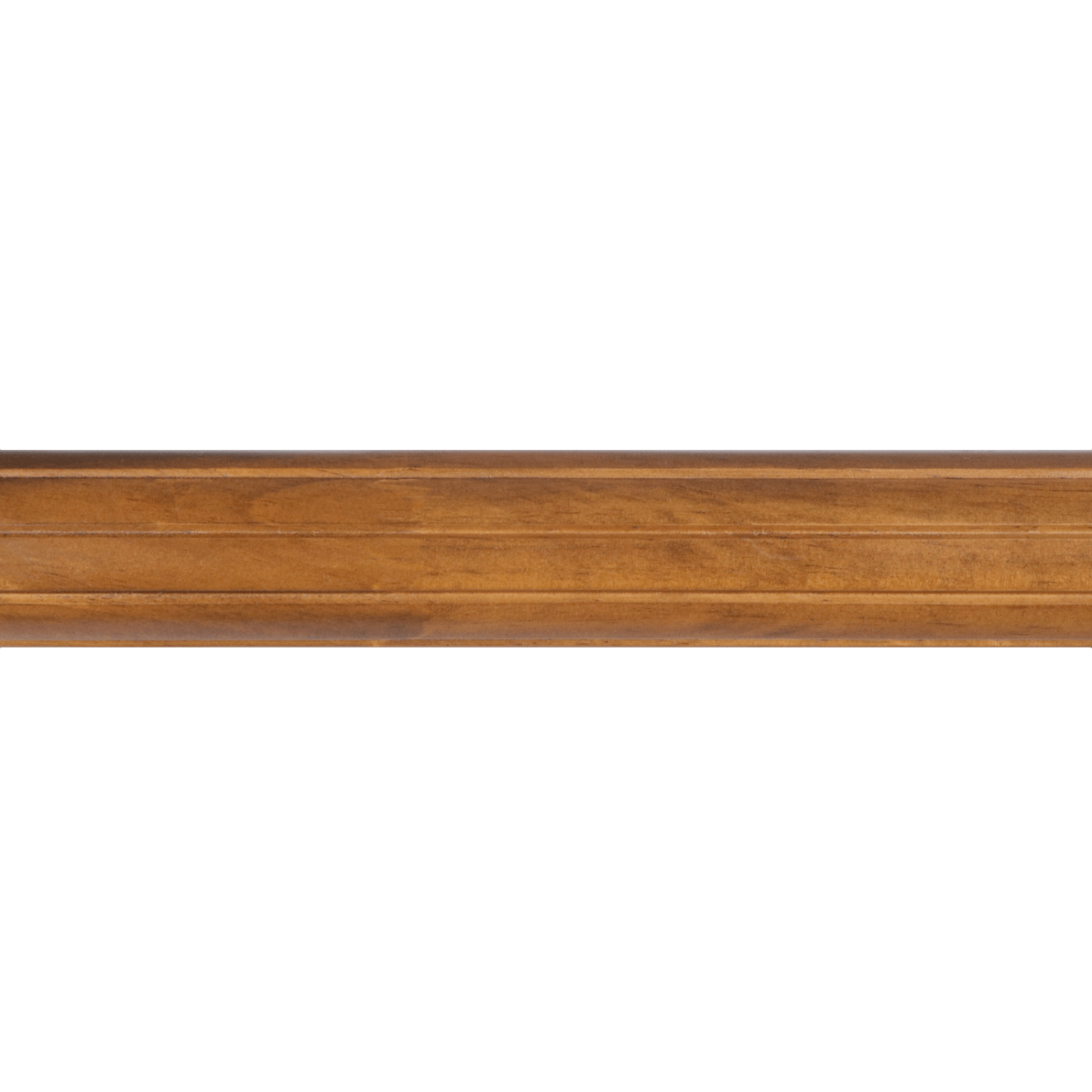

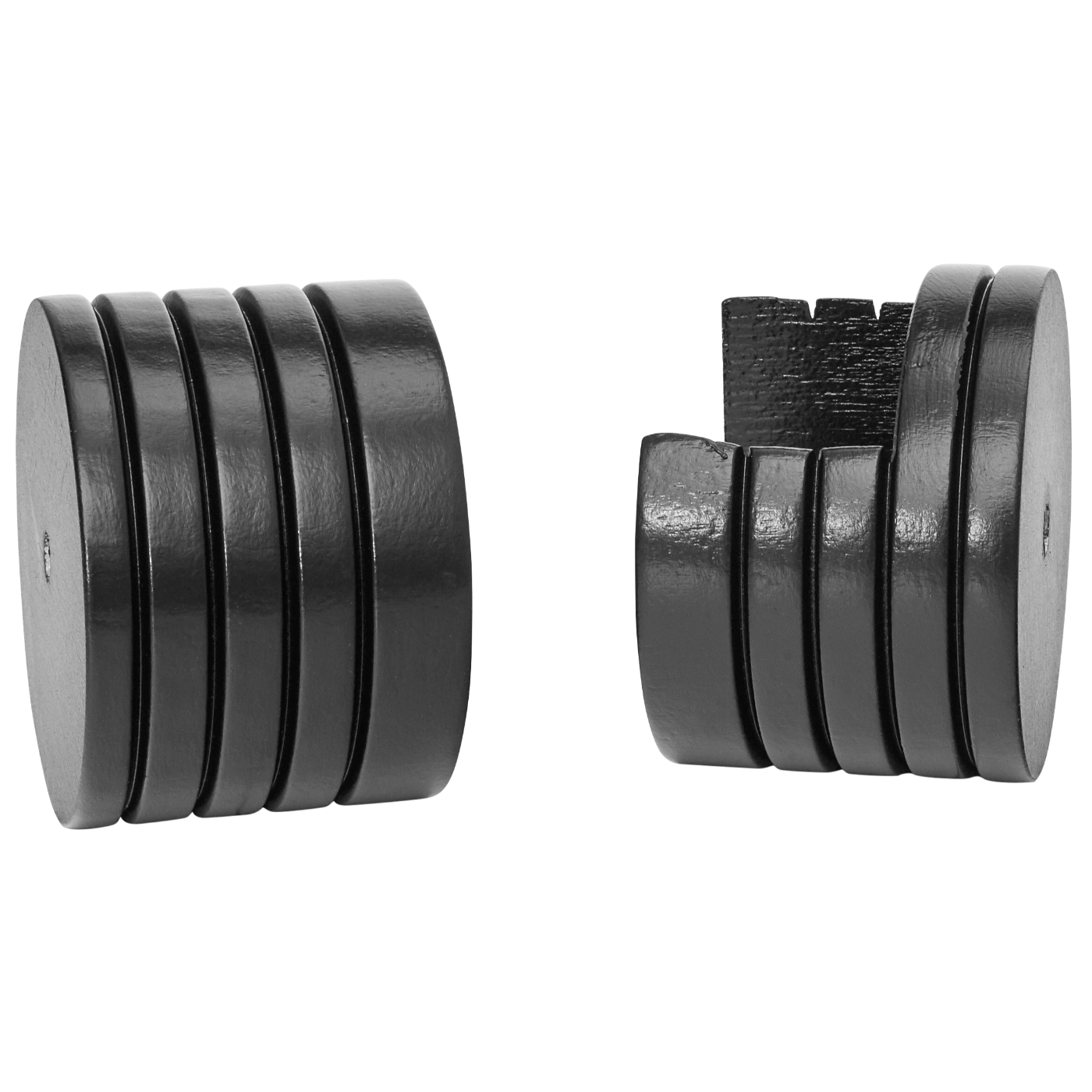

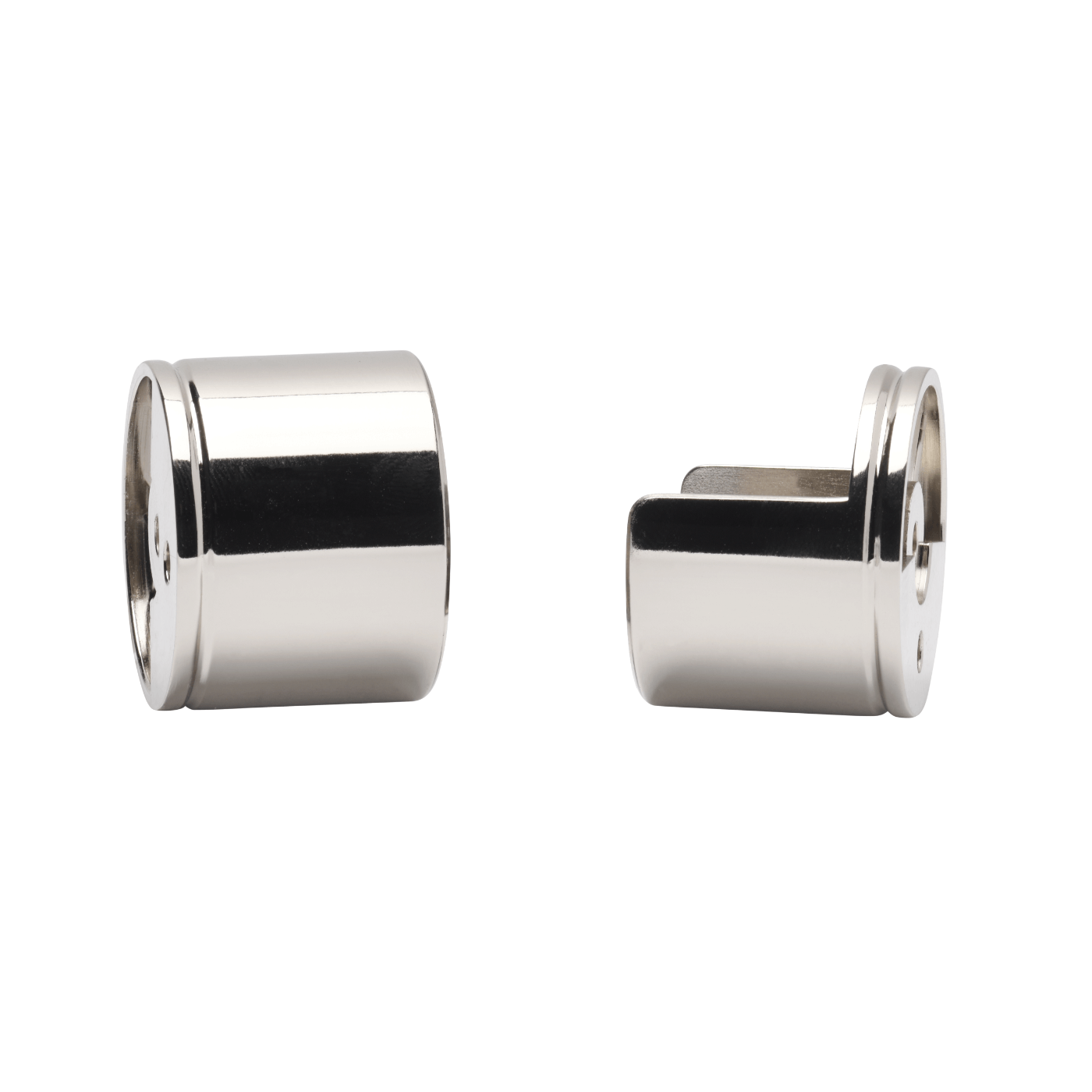

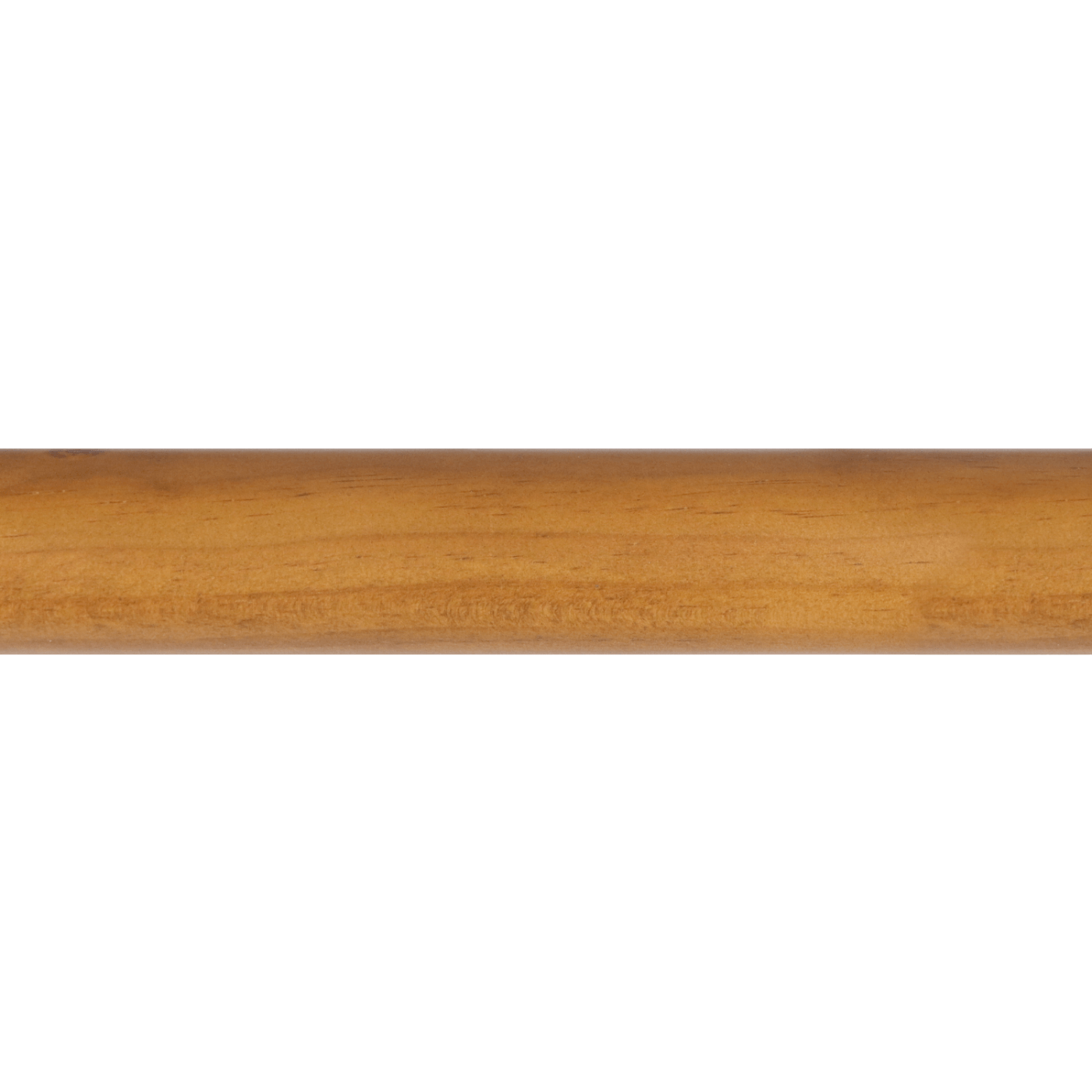

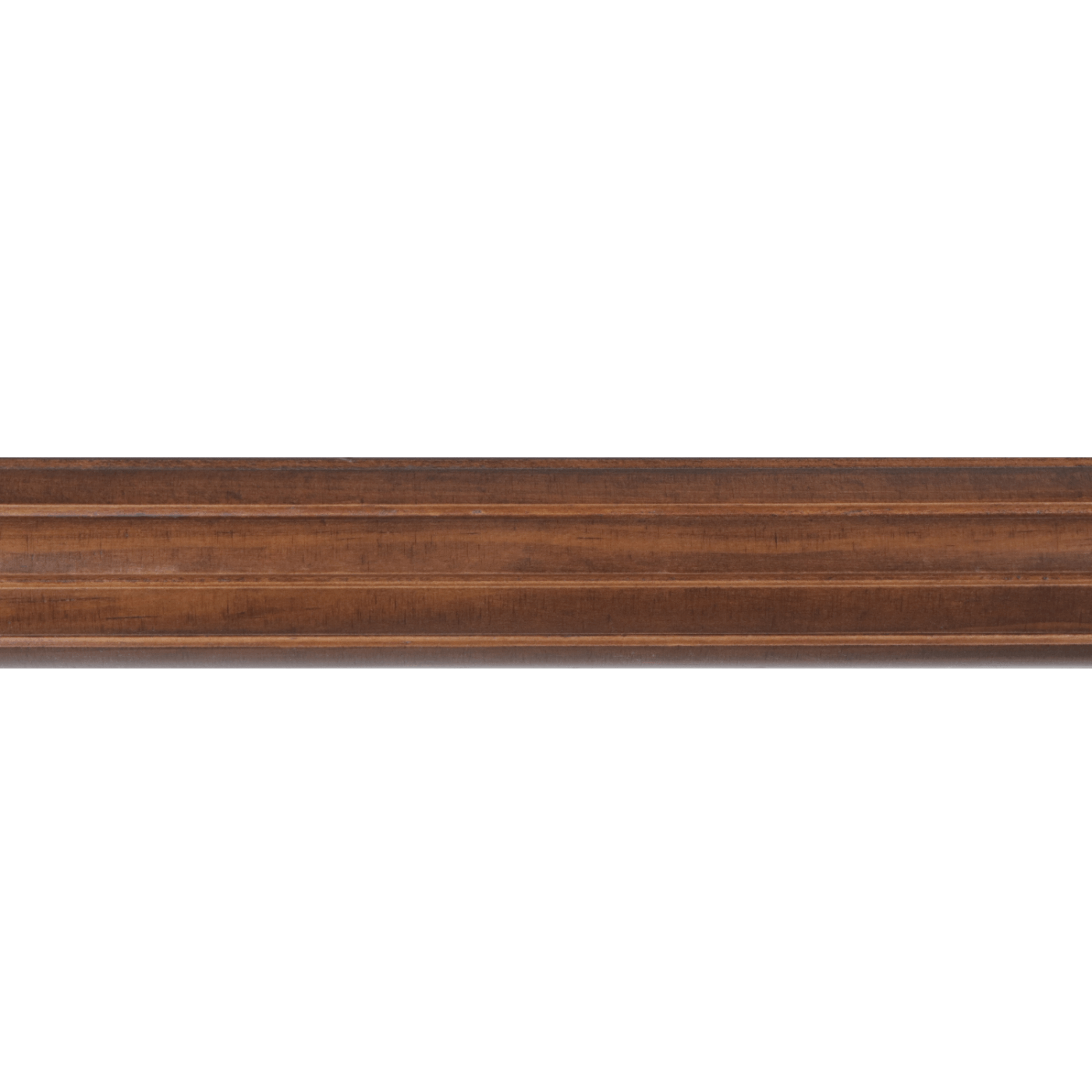

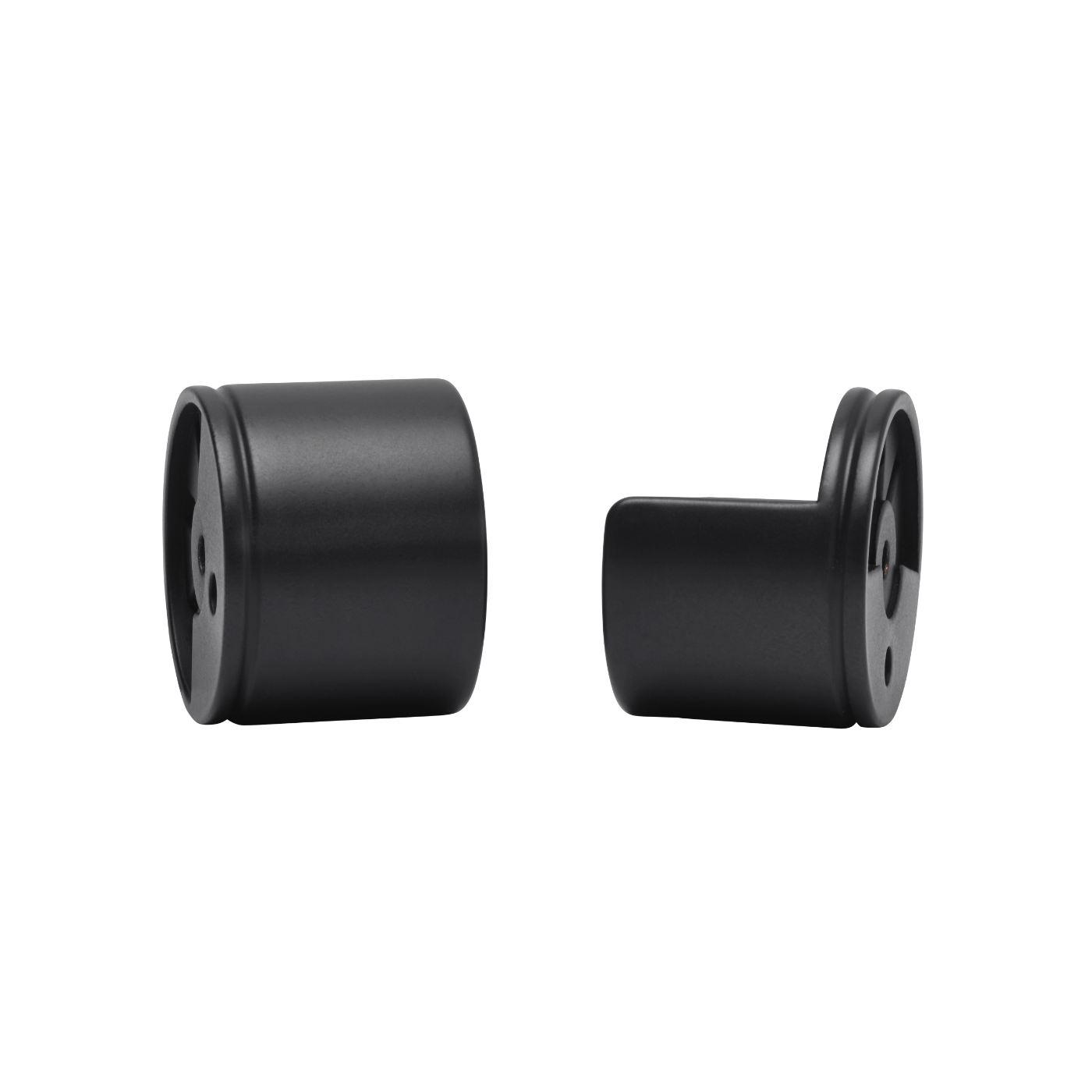

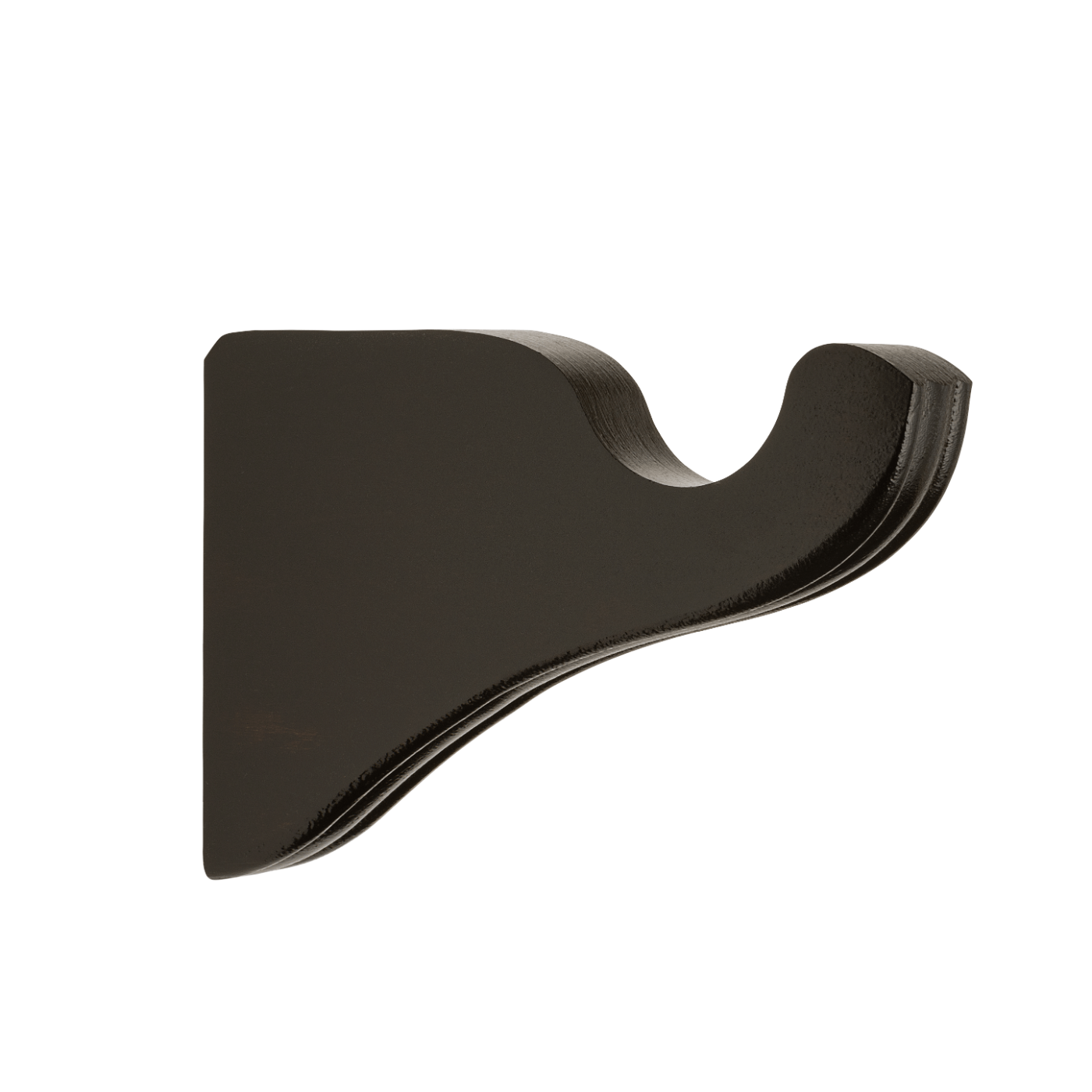

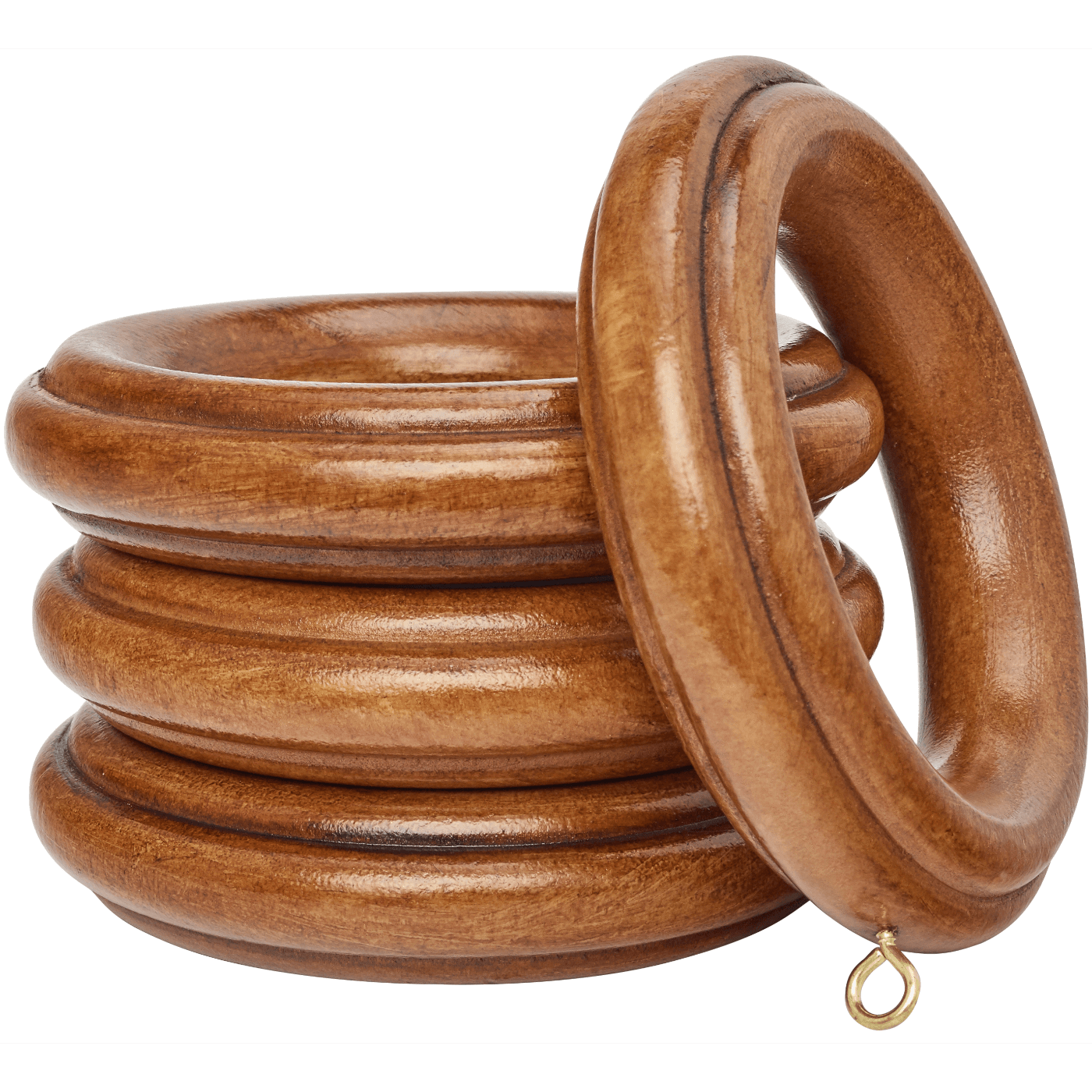

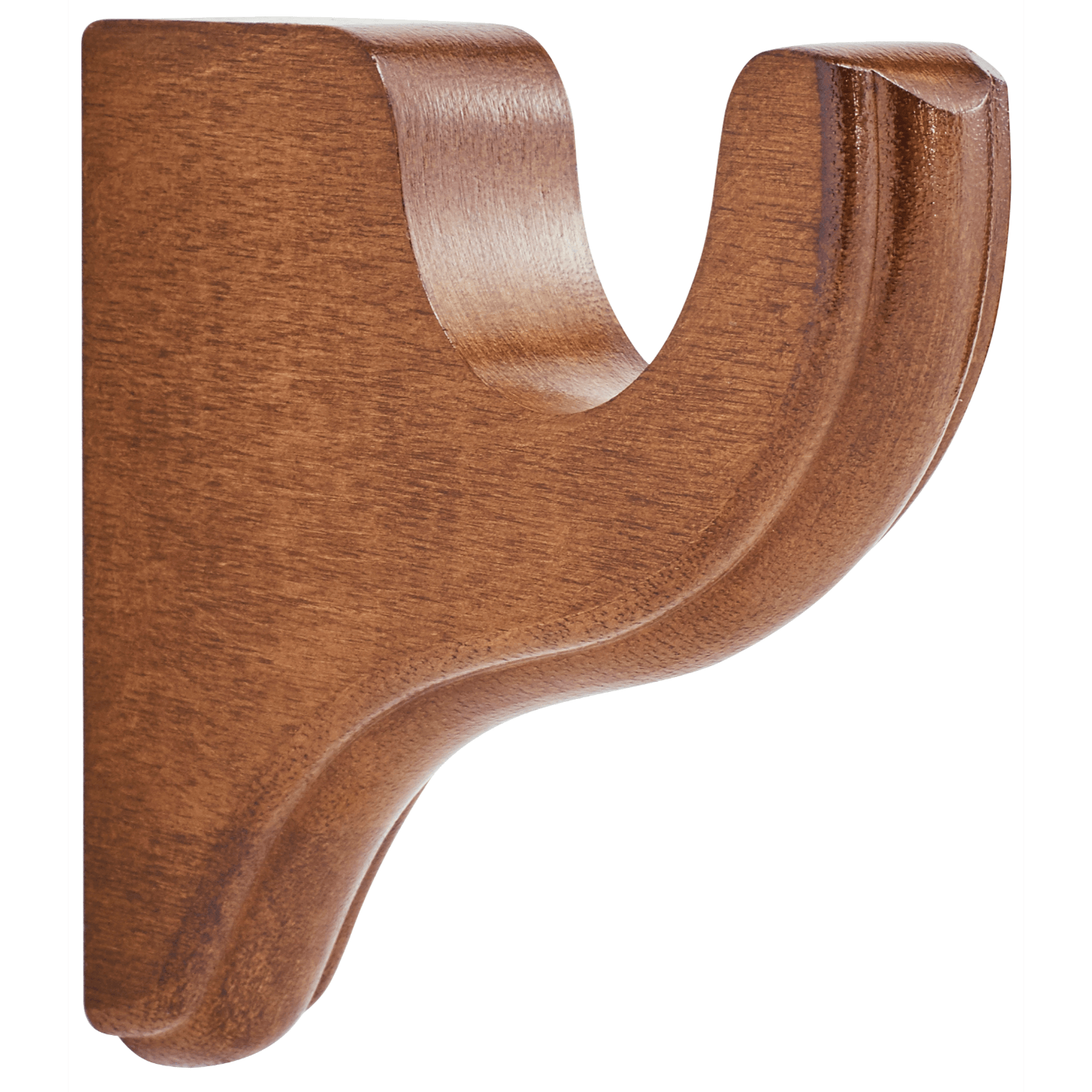

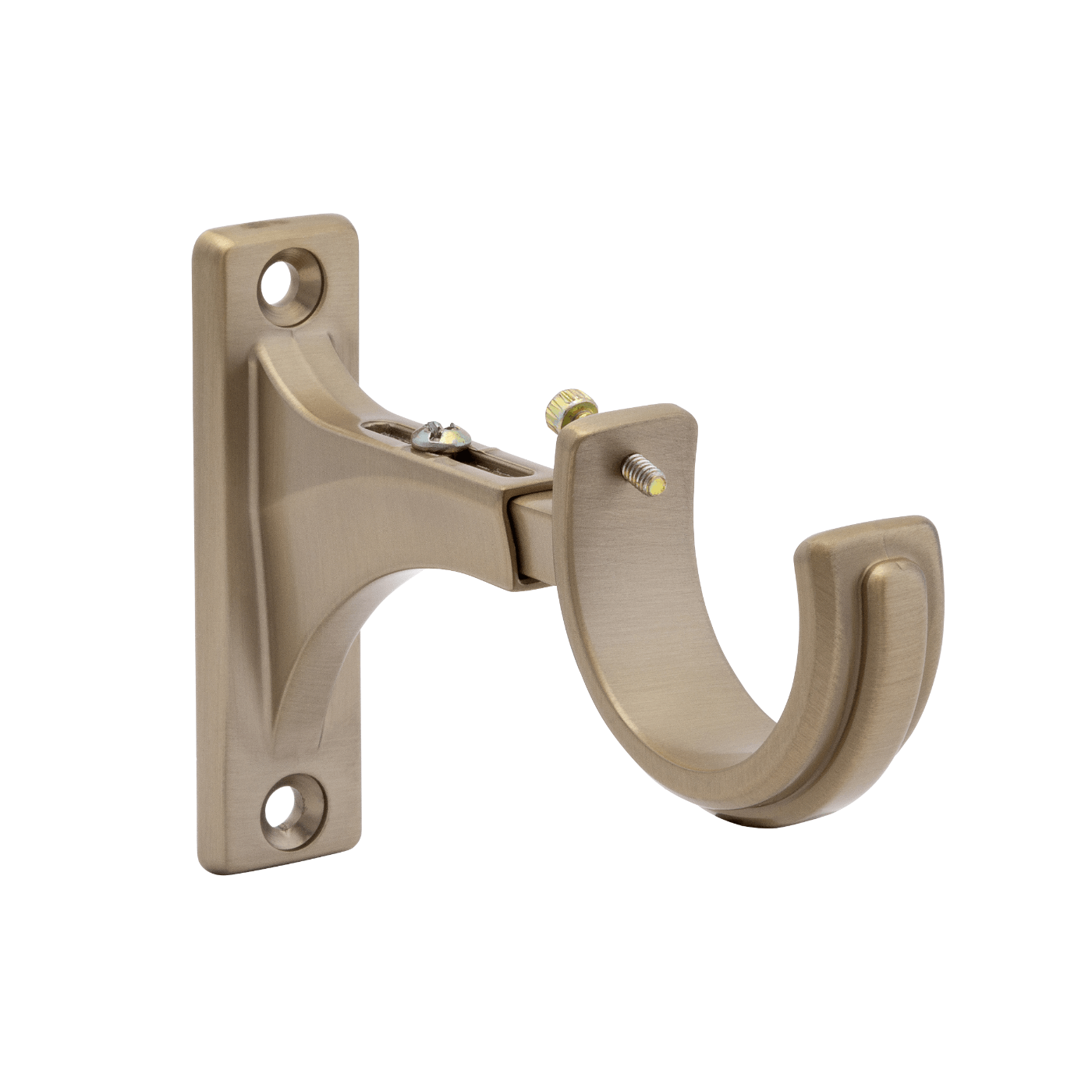

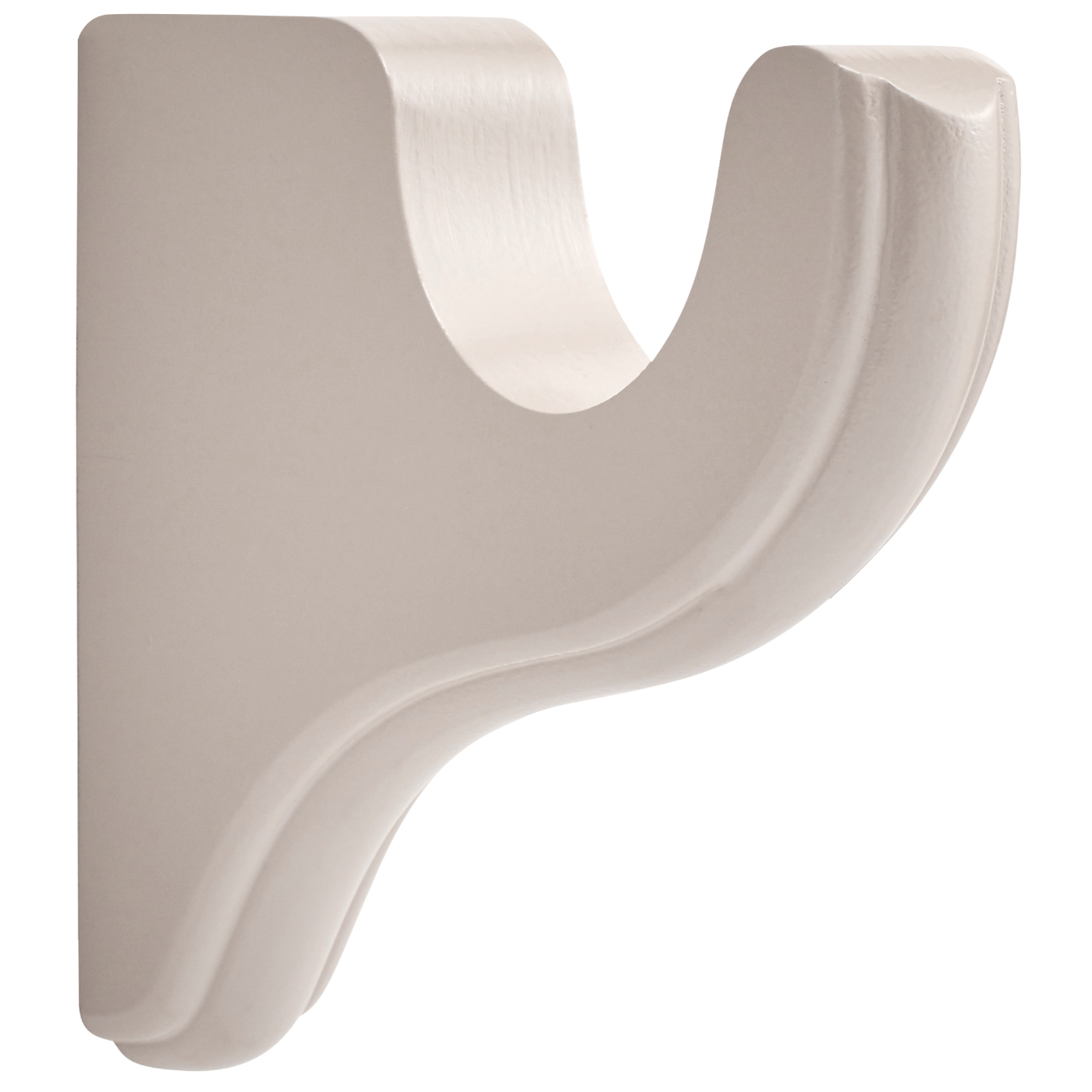

- Decorative Wood, Metal & Iron Collections: Elevate visible hardware designs with stained and painted Kirsch Wood Trends 1-3/8" and Kirsch Wood Trends 2" poles, contemporary Kirsch Designer Metals, artisan Kirsch Wrought Iron, or motorized Kirsch Briza Drapery Motors.
Frequently Asked Questions (FAQs):
1. Which Kirsch Architrac profile should I select for cord-draw vs. baton-draw draperies?

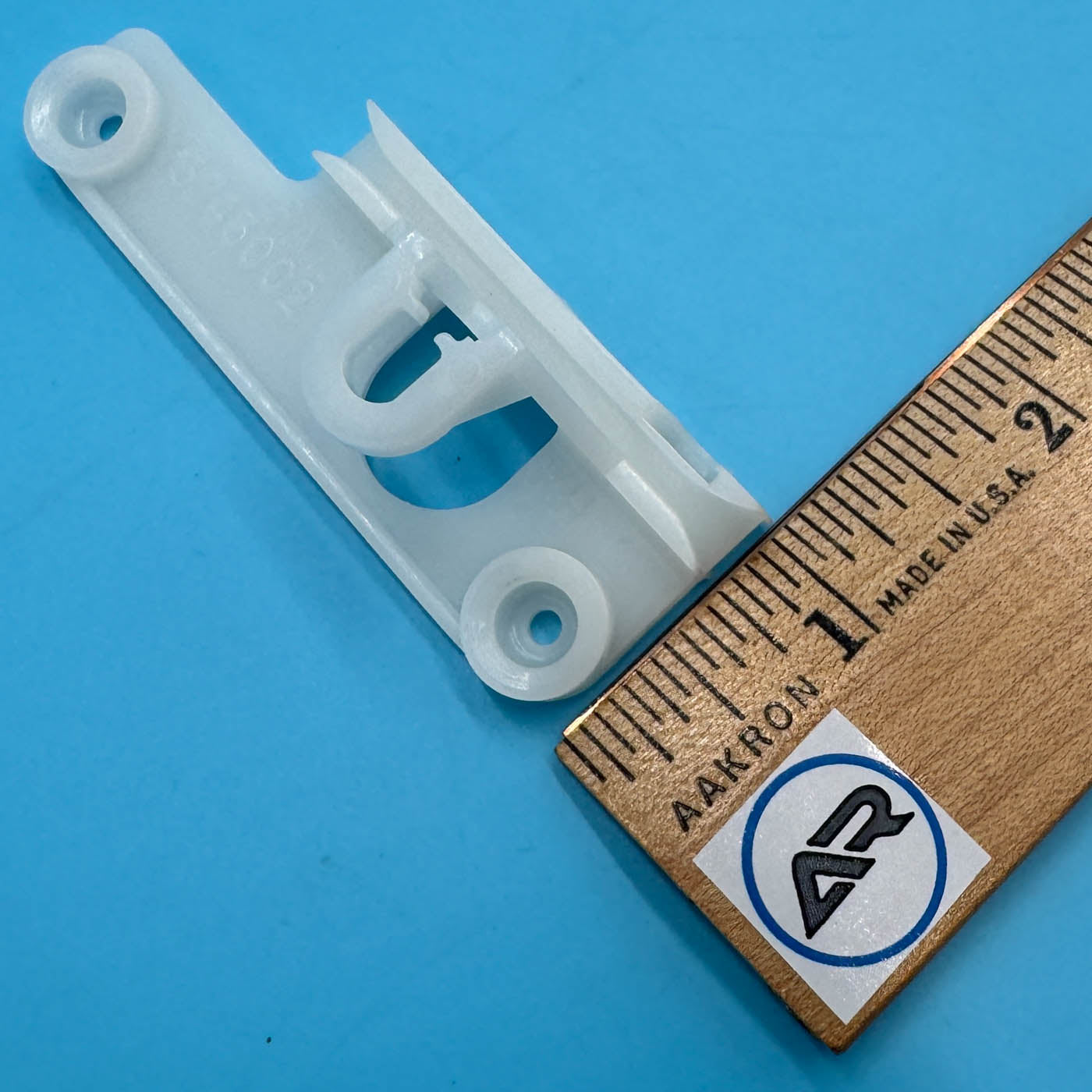

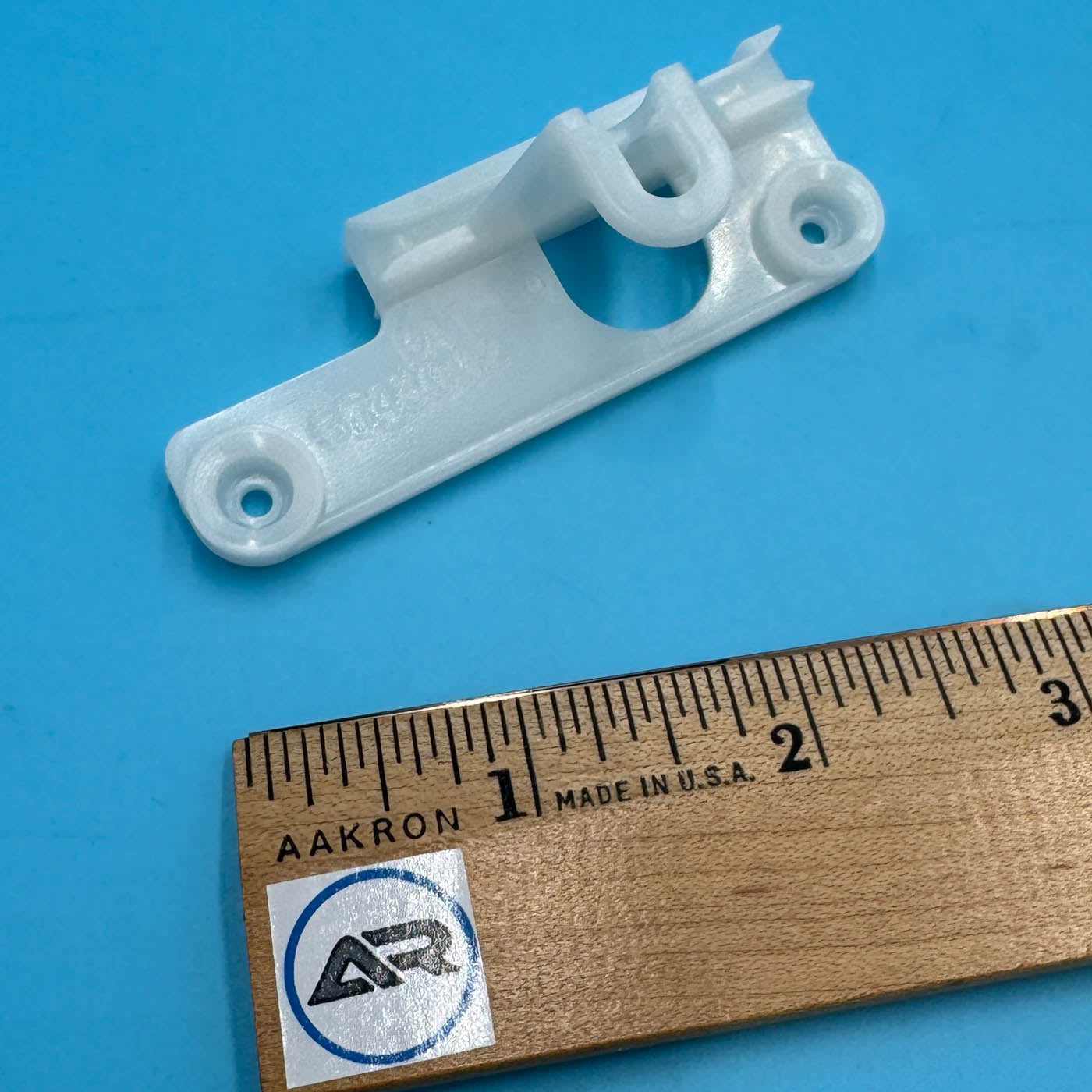

Specify Series 94001 when you want enclosed endless-cord pulley operation on tall windows or heavy draperies where reaching a wand is impractical. Specify Series 94003, 94004, or ceiling-recessed 9046 when you want cordless hand-drawn operation paired with fiberglass or acrylic Curtain Wands and Drapery Batons.
2. Should I use hard-action or loose-action Ripplefold snap tape with Kirsch tracks?
Kirsch Ripplefold pendant carriers are engineered specifically for hard-action 4-1/4" spacing nylon or transparent snap tape, which locks firmly onto Kirsch carrier pendants so heavy drapery headers never pop unsnapped when drawn. (Loose-action tape is primarily used on Graber systems.
3. What is the difference between 60%, 80%, 100%, and 120% Ripplefold fullness?
Fullness determines how much flat fabric width is required and how deep the S-curve wave appears by varying the cord spacing between wheeled carriers: 60% fullness uses 2-5/8" carrier spacing for shallow modern waves, 80% uses 2-3/8", 100% uses 2-1/8", and 120% uses 1-7/8" spacing for deep, dramatic folds.
4. How do Kirsch Architrac tracks and decorative poles longer than 8 feet ship?

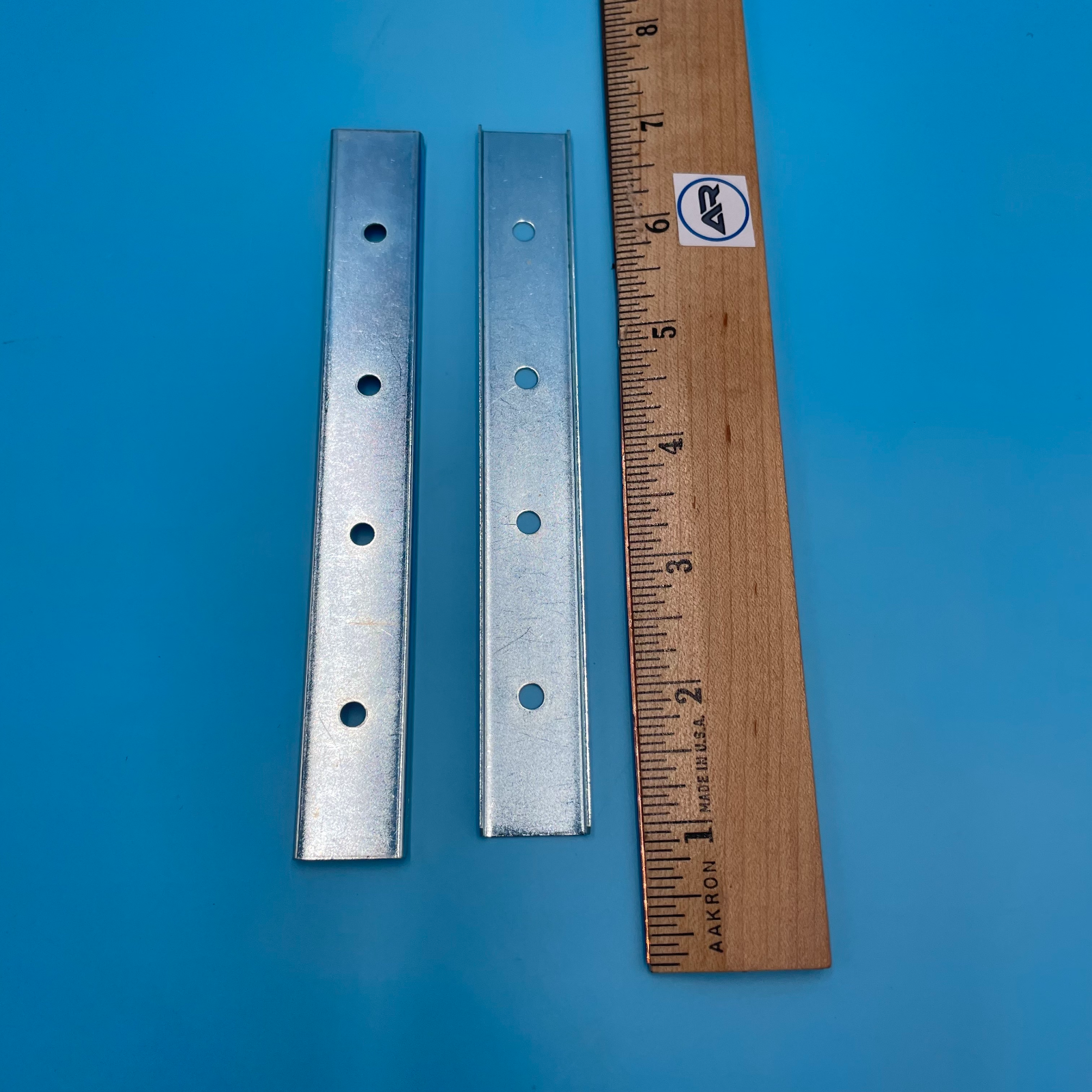

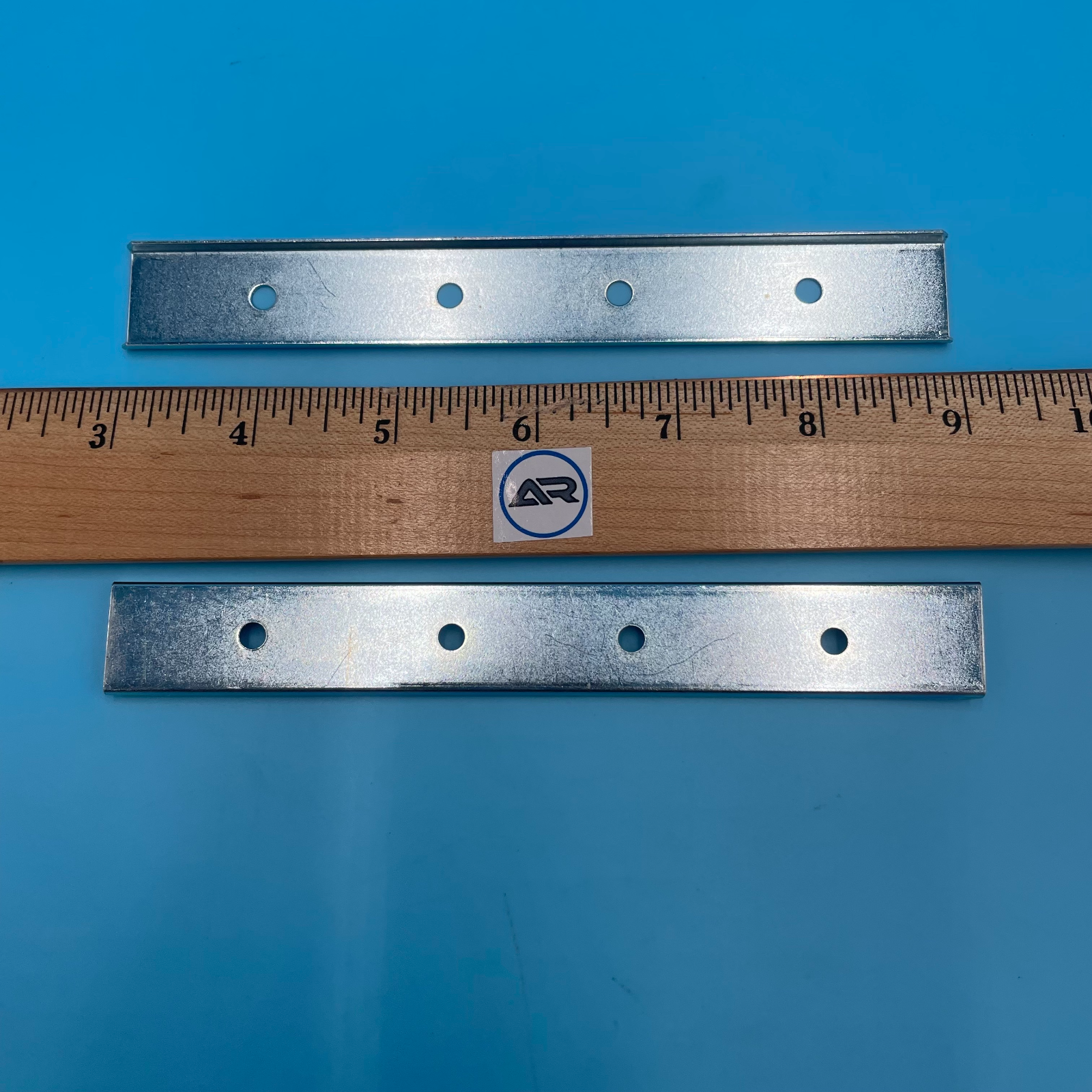

Extruded tracks and poles up to 94 to 95 inches ship economically via standard UPS ground parcel. Continuous 12-foot and 16-foot uncut lengths ship via LTL freight, or they can be cut in half for parcel shipping and joined seamlessly above a center support bracket using a hidden internal Kirsch splice.

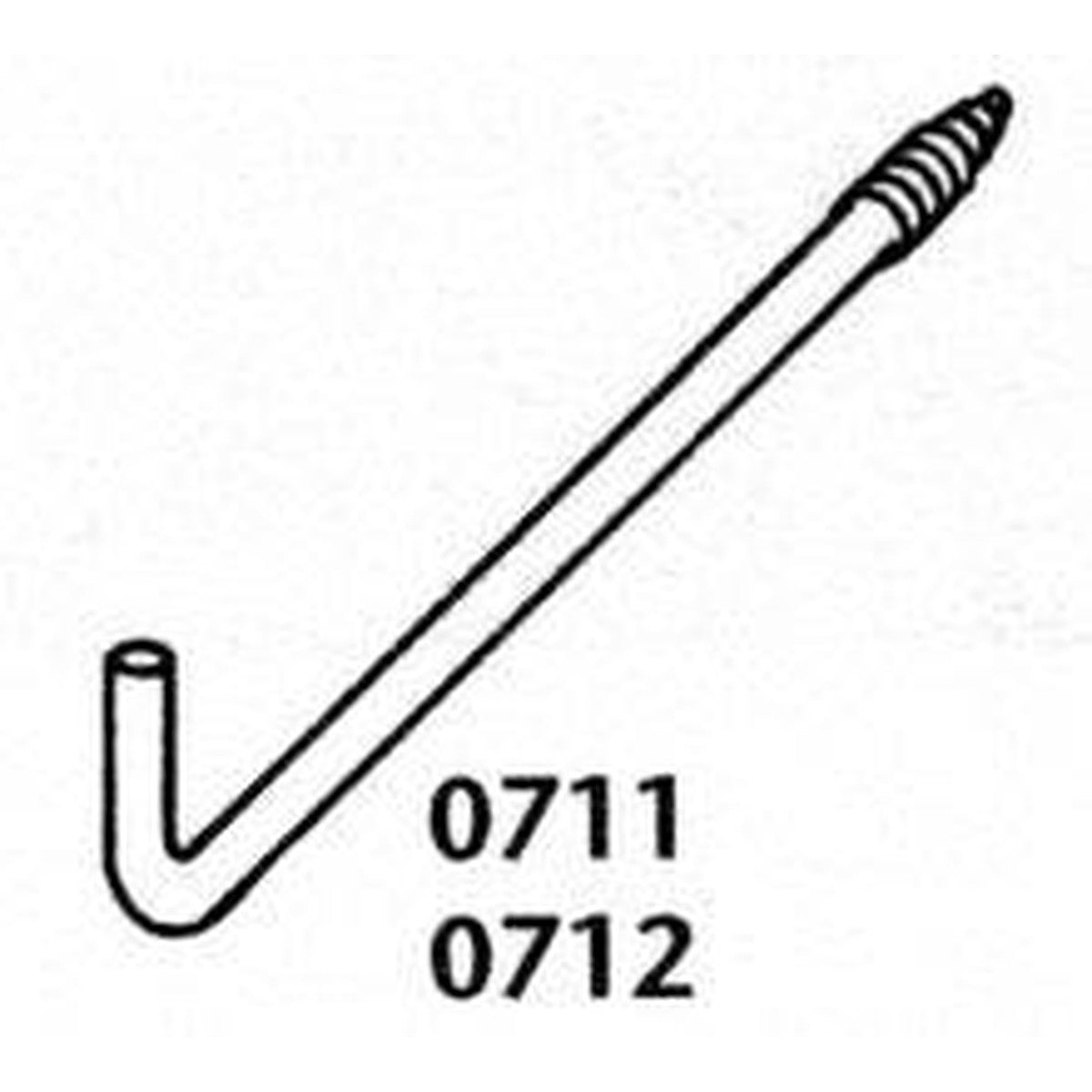

5. How far apart should mounting brackets be spaced on heavy Kirsch drapery rods?

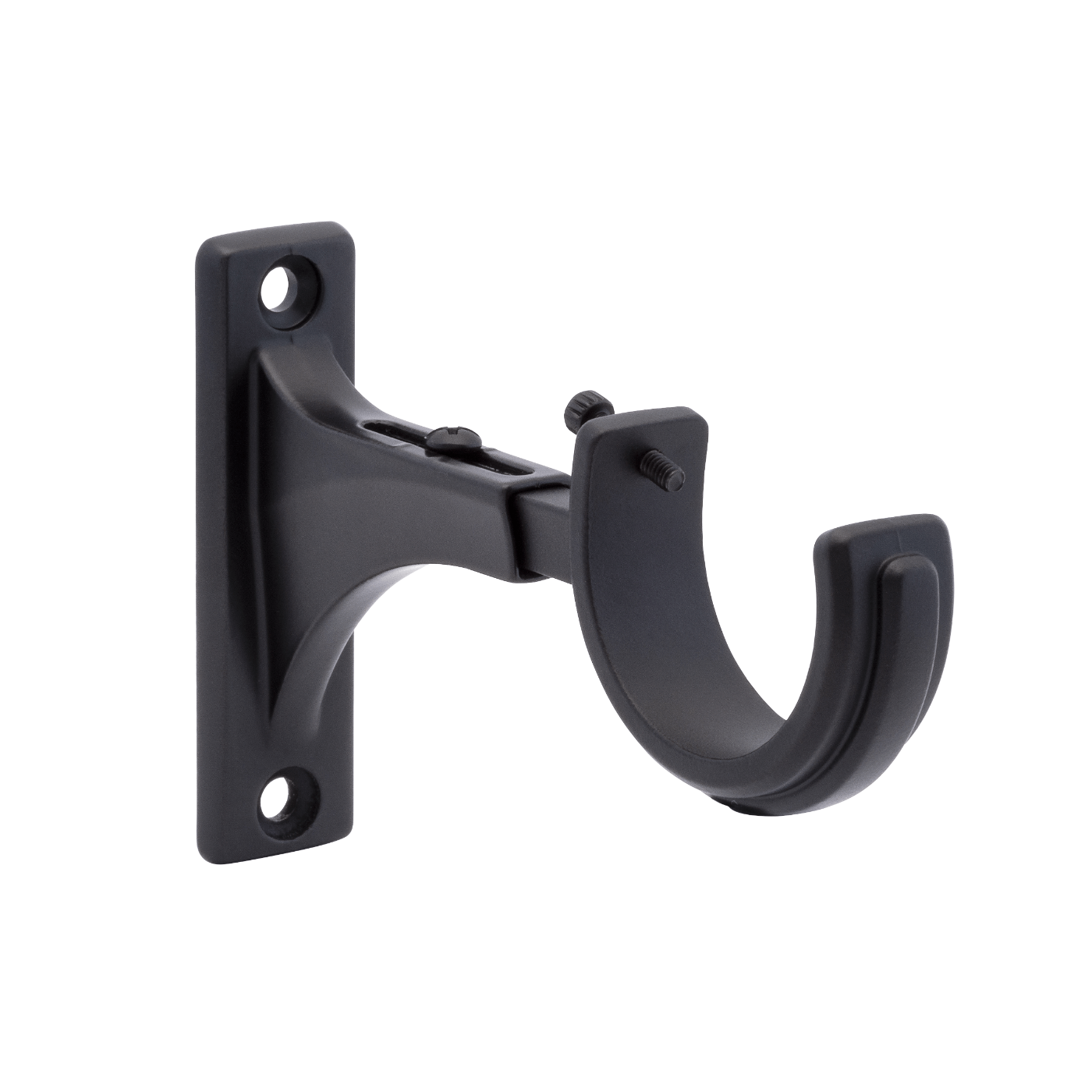

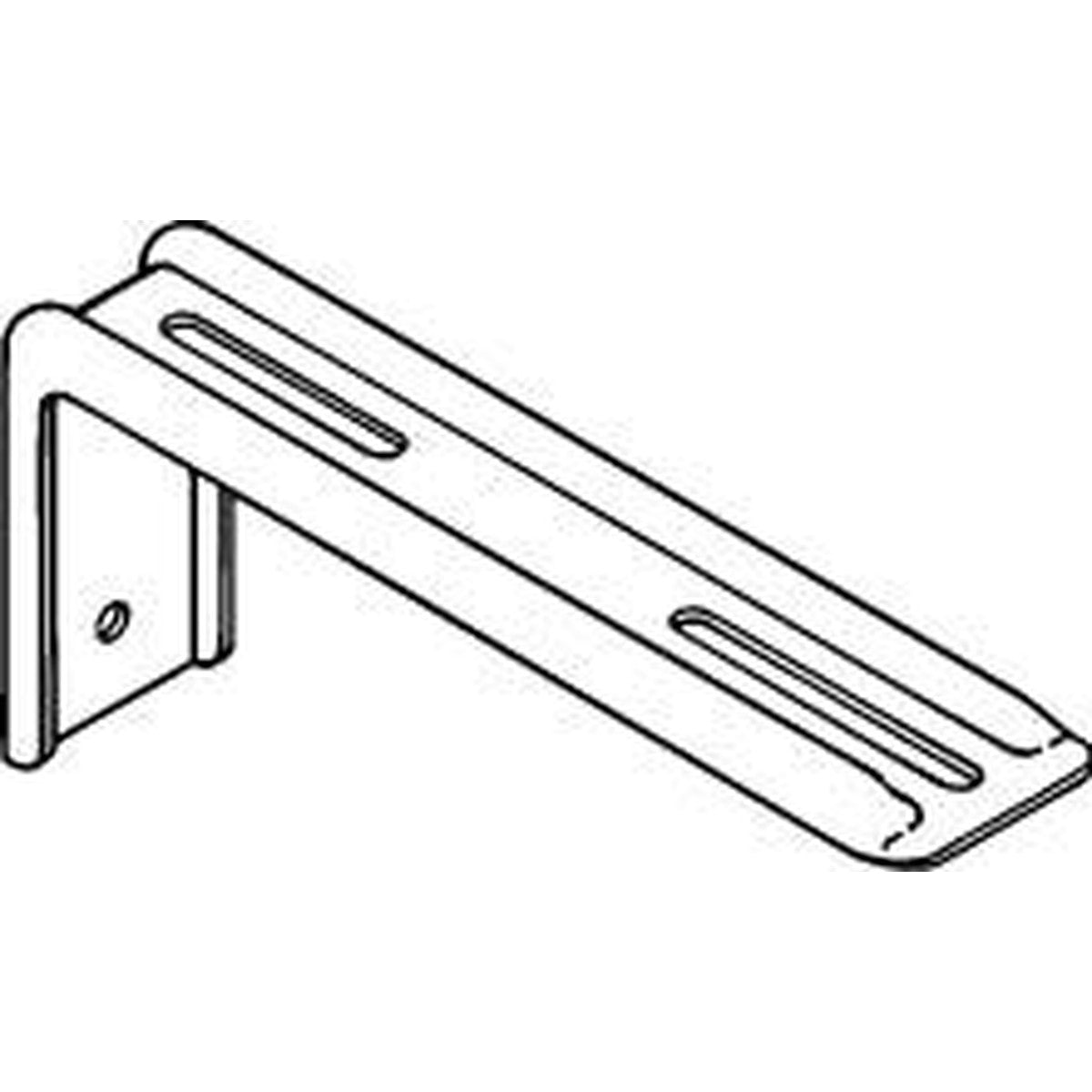

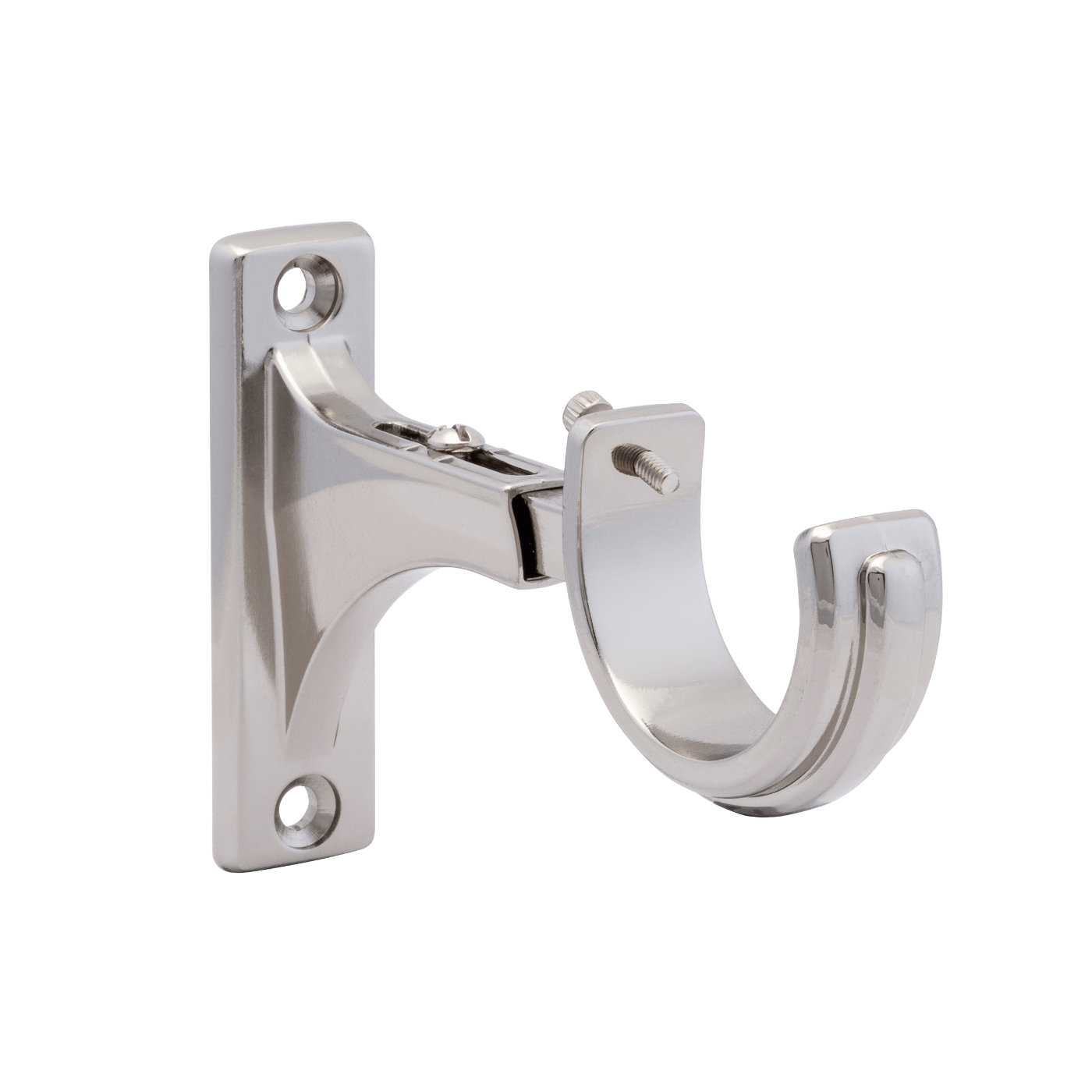

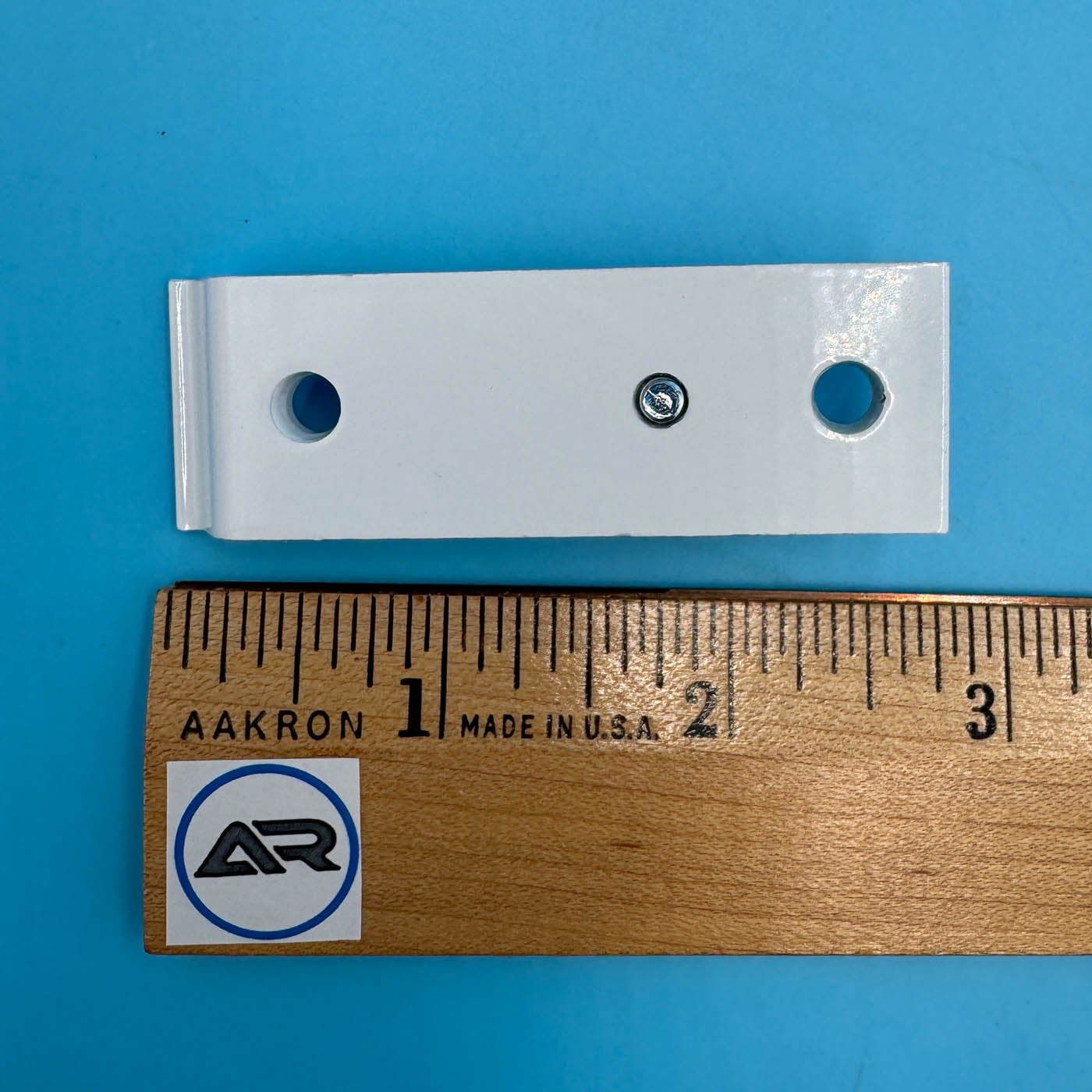

On Architrac aluminum tracks, install wall or ceiling brackets within 4 inches of each end pulley and every 36 to 48 inches across the span (closer at stacking zones). On decorative Wood Trends and Designer Metal poles, add a center support bracket on any span exceeding 60 to 72 inches.
