Somfy Sonesse® 30 RTS 24V DC Motor - 1241142

SKU: SOM-1241142
Power Supply: No Thank You
Crown and Drive Set: No Thank You
Brackets: No Thank You

Sale price
$328.68
Regular price
$360.00
You save
$31.32 (9%)
Taxes and shipping calculated at checkout

Frequently Bought Together

Somfy Sonesse ST30 RTS 24V DC Motor

Torque 17.7" Ibs. 2Nm 25 rpm

Benefits

Comfort, Convenience and Privacy

  • Convenient solution to reduce glare on TVs and computers
  • Superior quiet performance

Simple and Effortless

  • Move your blinds effortlessly and remotely thanks to radio control
  • Move your blinds to your favorite "my" position with one click

Compatible

  • Compatible with Situo Variation for incremental blind slat control
  • Compatible with solar functions to automatically protect interiors

Protect your blinds

  • Soft stop and soft start protects the fabric
  • Provides a precision look

Discreet Integration and Home Harmony

  • Ideal for small, narrow windows to maximize viewable window area
  • Thin, discreet round head with optional, interchangeable motor head covers to match decor.
  • Low-voltage wiring that is safely out of sight

Expand Opportunities for Success

  • Improved sound level that meets our Designed for Silence criteria.
  • Fully UL listed motor, meets safety & inspection requirements.

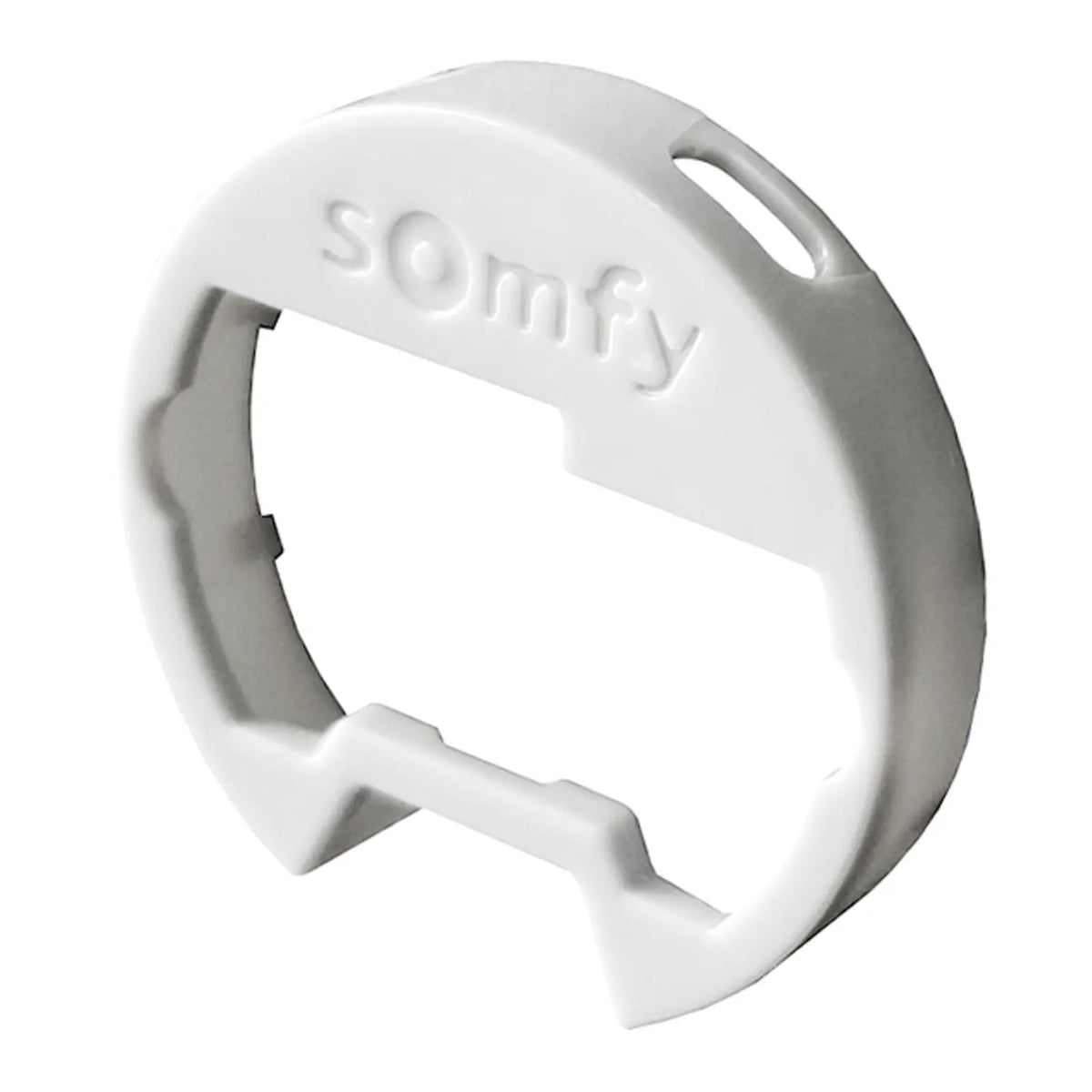

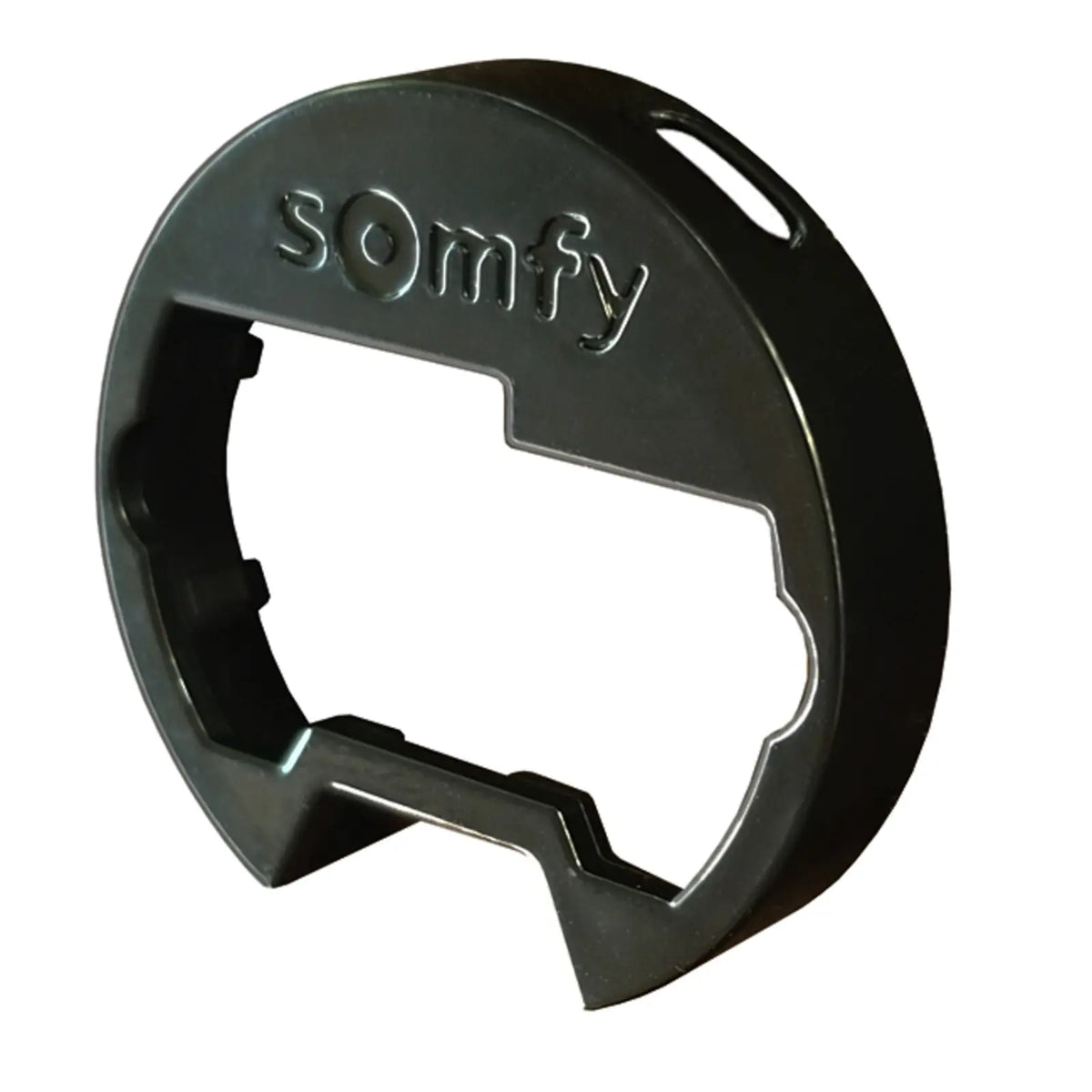

  • New style motor head with interchangeable head covers available in 3 different colors (white, grey, and black).
  • Ideal for small, narrow windows to maximize viewing area.
  • Local control via a simple press of a button directly on the motor head.

Easy to Fabricate & Install

  • Low-voltage (24V) for safe and easy wiring.
  • Ergonomically friendly manual programming button on the motor head allows easy access and provides local control.
  • LED lights provide visual feedback to confirm communication.
  • Thin motor head minimizes the light gap.

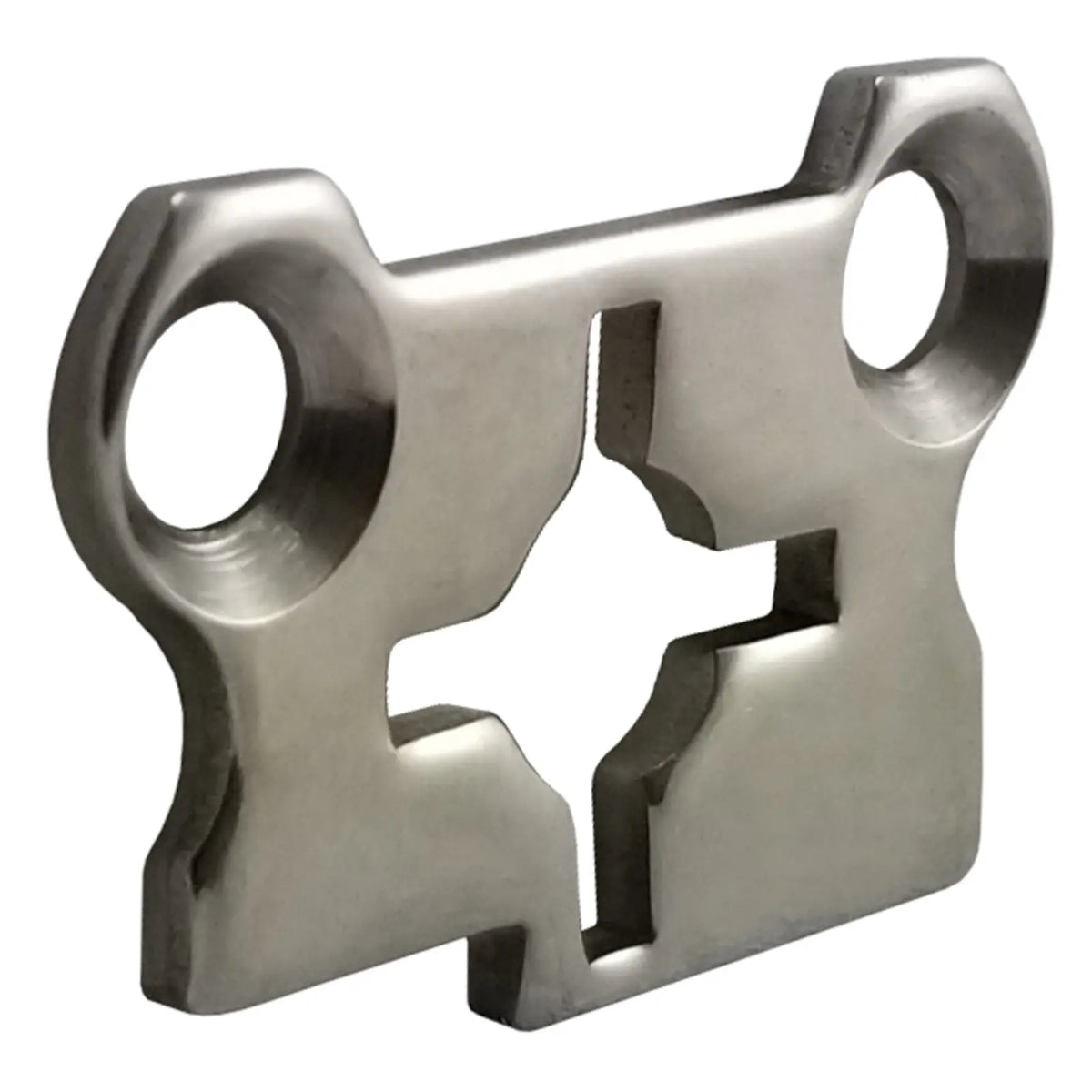

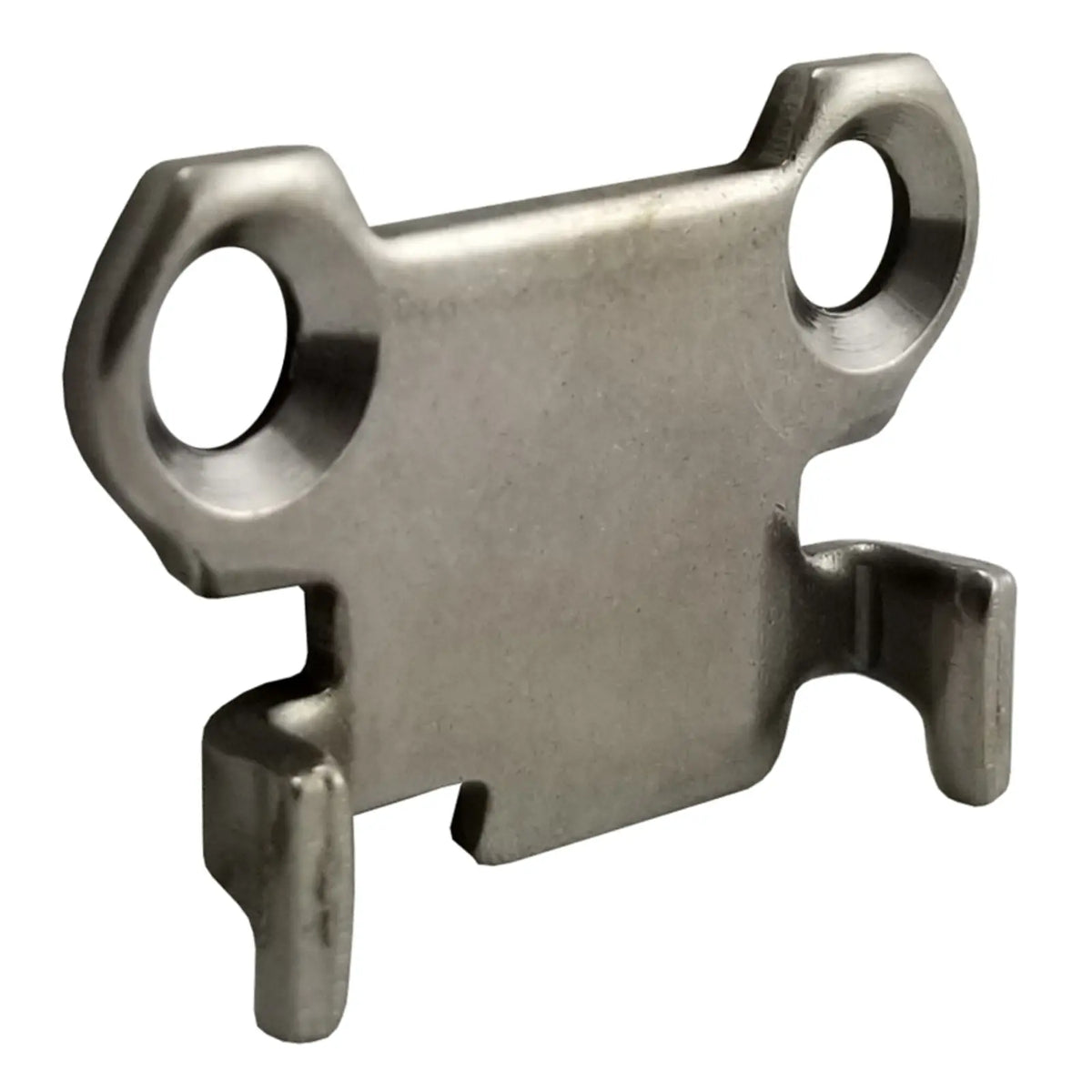

  • Recessed, interchangeable metal adaptor plates are compatible with industry-leading hardware and maintain the reduced light gap.
  • Allows wireless radio control of motorized applications via the RTS family of controls.

The motor replaces part # 1001524  - The Price is the Same - But it requires a new Crown & Drive

Technical information

STANDARD

Protection Index: IP 30

Insulation class: III

DIMENSION

Thickness: 0.31 in

Unwrapped product weight: 1.32 lb

Unwrapped length: 17.61 in

Minimum internal diameter: 1.13 in

External Diameter: 1.97 in

Diameter: 1.18 in

TECHNOLOGY

Radio Frequency: RTS 433.42 MHz

Number of channels: 12

Range in open field: 656.2 ft

Memory capacity: 12

Coding: Rolling code 16 million of possibilities

Number of cycles per day (in cycles): 2

ELECTRICAL

Consumption during operation: 15 W

Minimum voltage: 21.6 V

Maximum voltage: 26.4 V

Rated current: 0.625 A

Power supply: DC - RGE 8 24V

Antenna: External 175 mm

MECHANICAL

Speed: 25 rpm

Torque: 2 Nm

Type of limit switch unit: Electronic RTS

Capacity of the limit switch unit (turns): 100

Power scale: DC MOTOR 0W TO 37,5W

Repeatabilty: +/- 5

Head type: ROUND

CABLE

Cable type: 2464

Cable length: 0.82 ft

Cable color: WHITE

Number of wires of the cable: 2

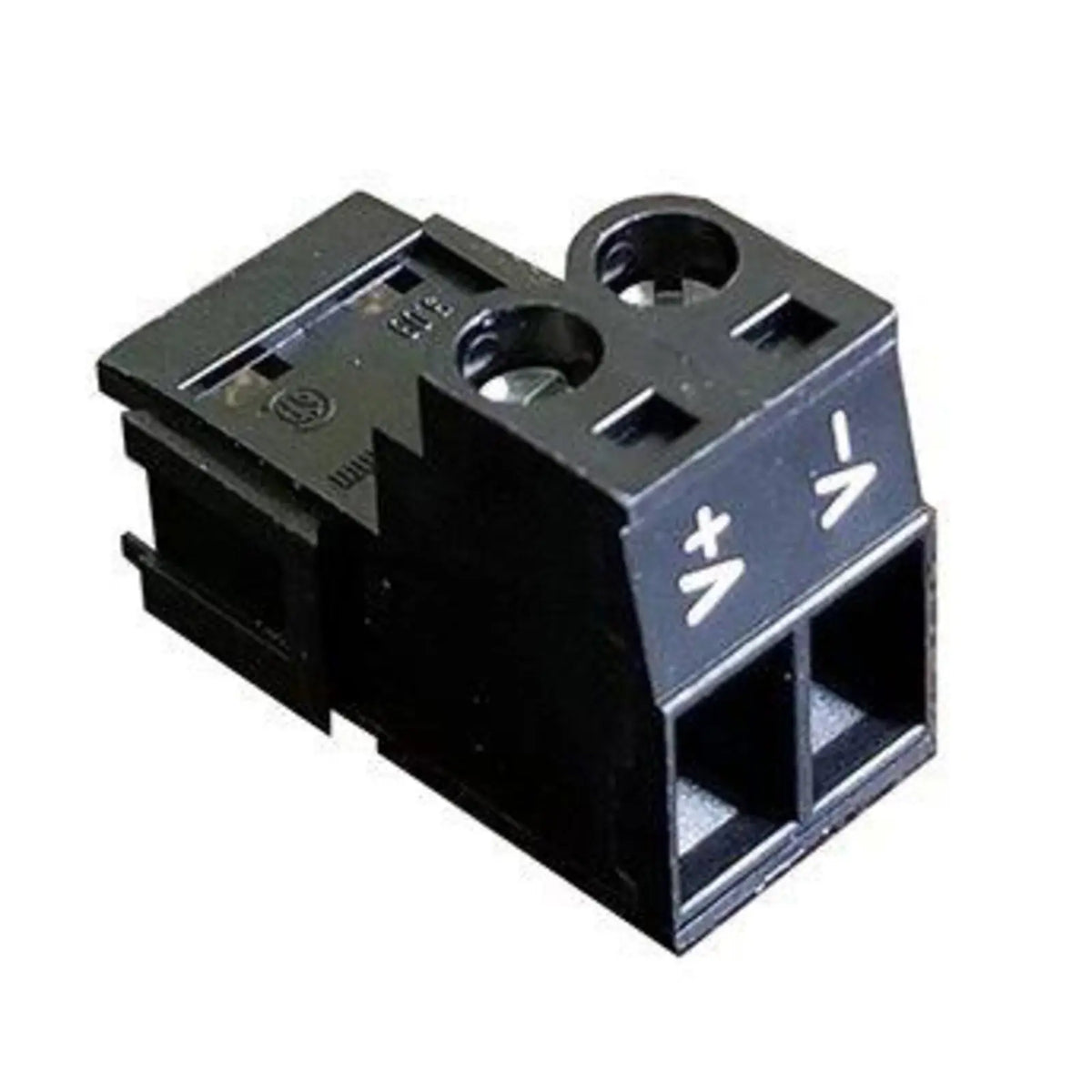

Cable plug ends: WEIDMÜLLER

Wire section: 0.0003 in²

OTHER

Minimum working temperature: 32 °F

Maximum working temperature: 140 °F

Minimum storing temperature: -4 °F

Maximum storing temperature: 176 °F

Thermical time: 6 min

Shape: TUBULAR

Noise level (dB): 47 dB

Approval: CE, UL
