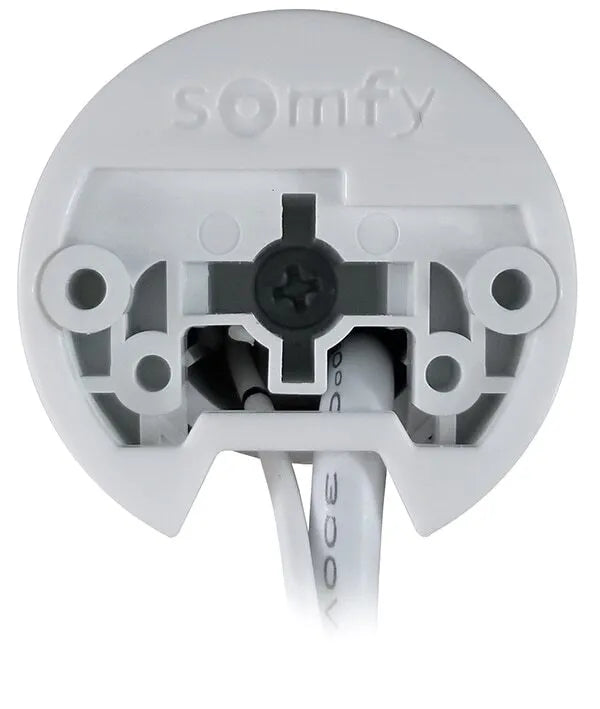

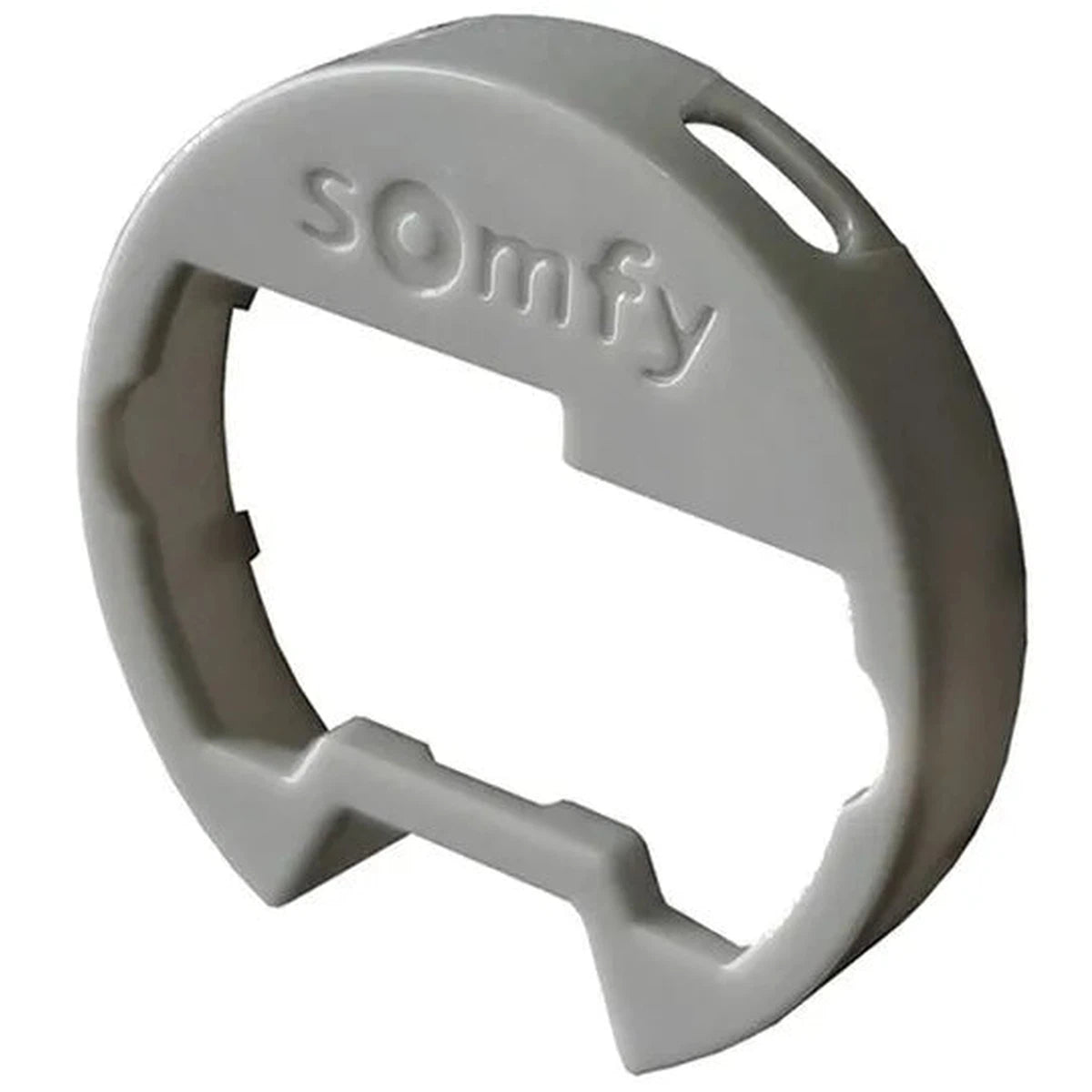

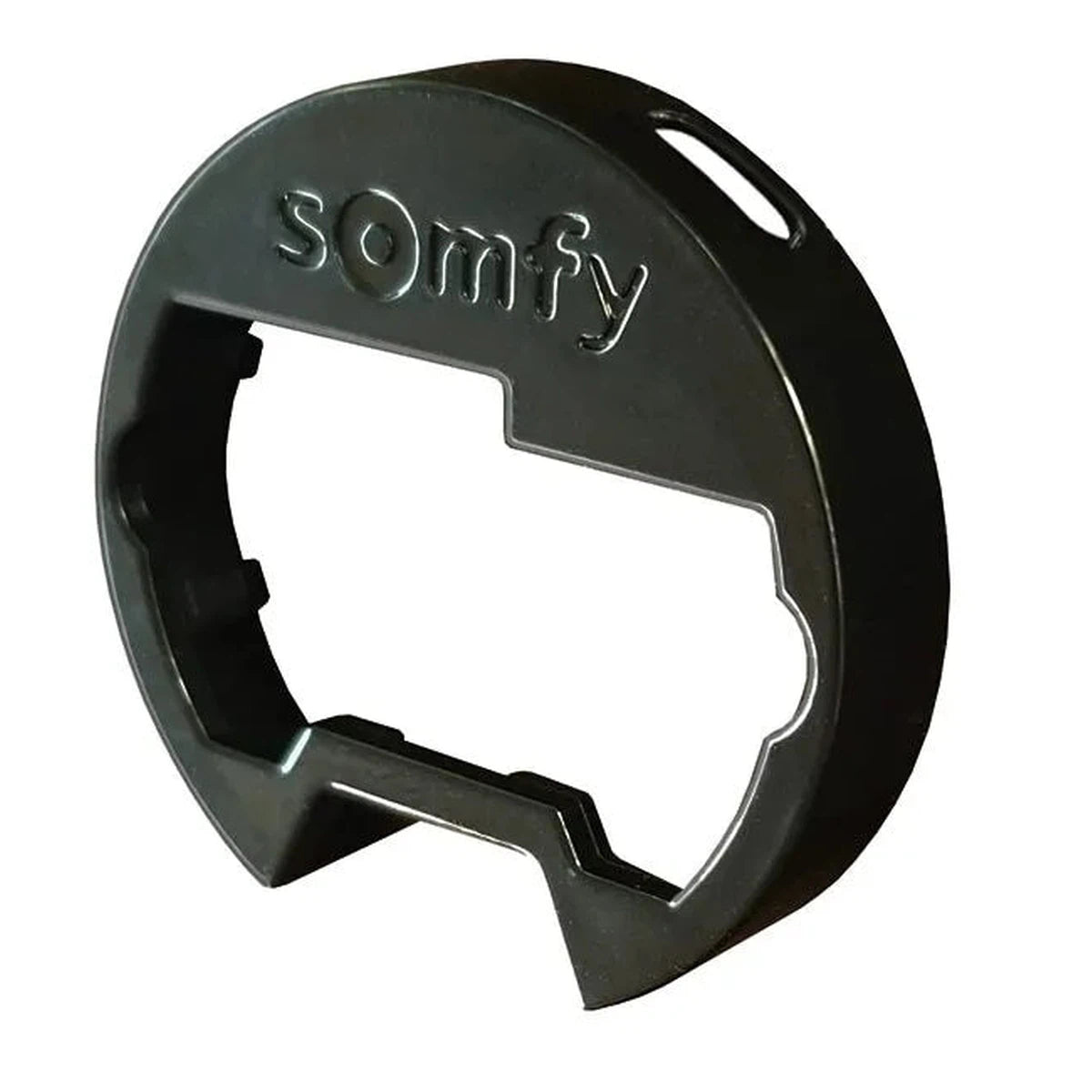

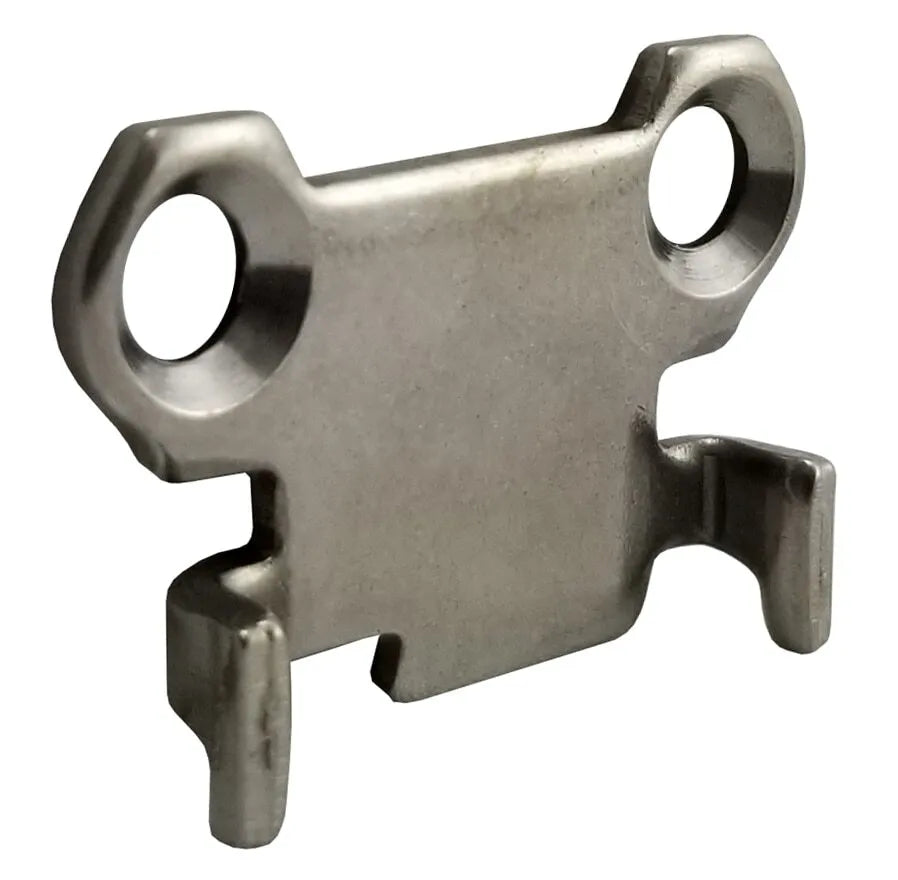

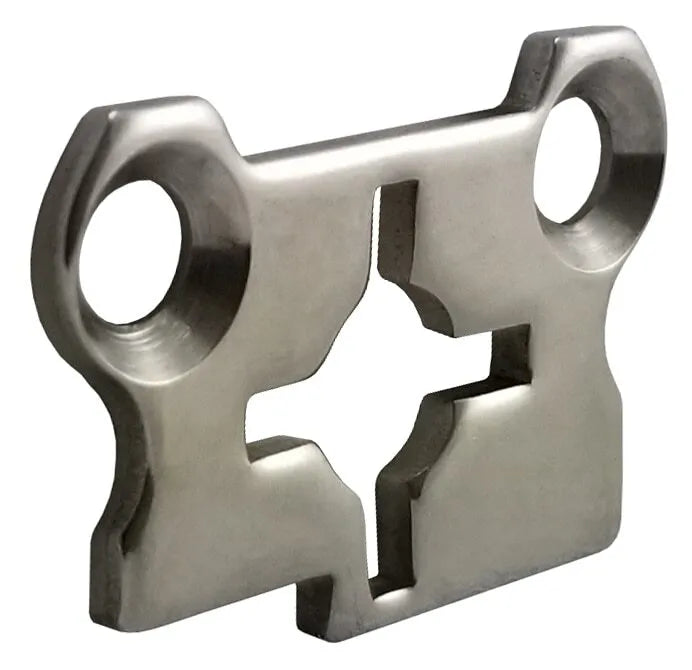

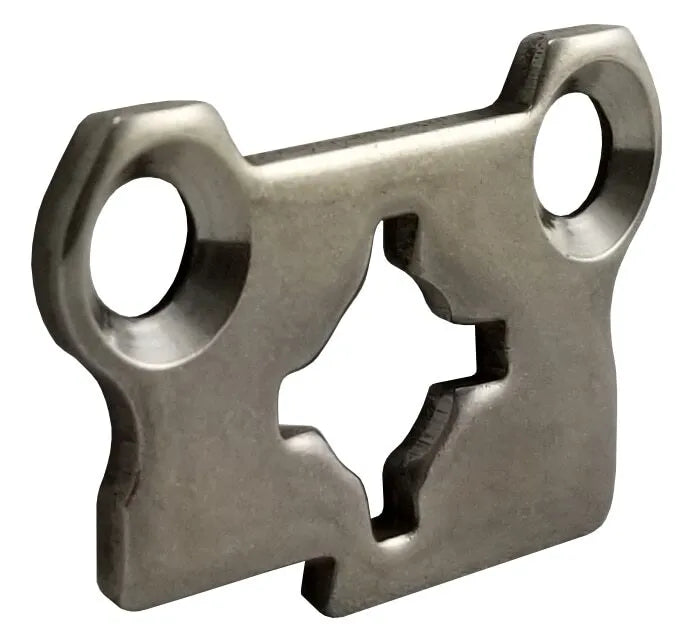

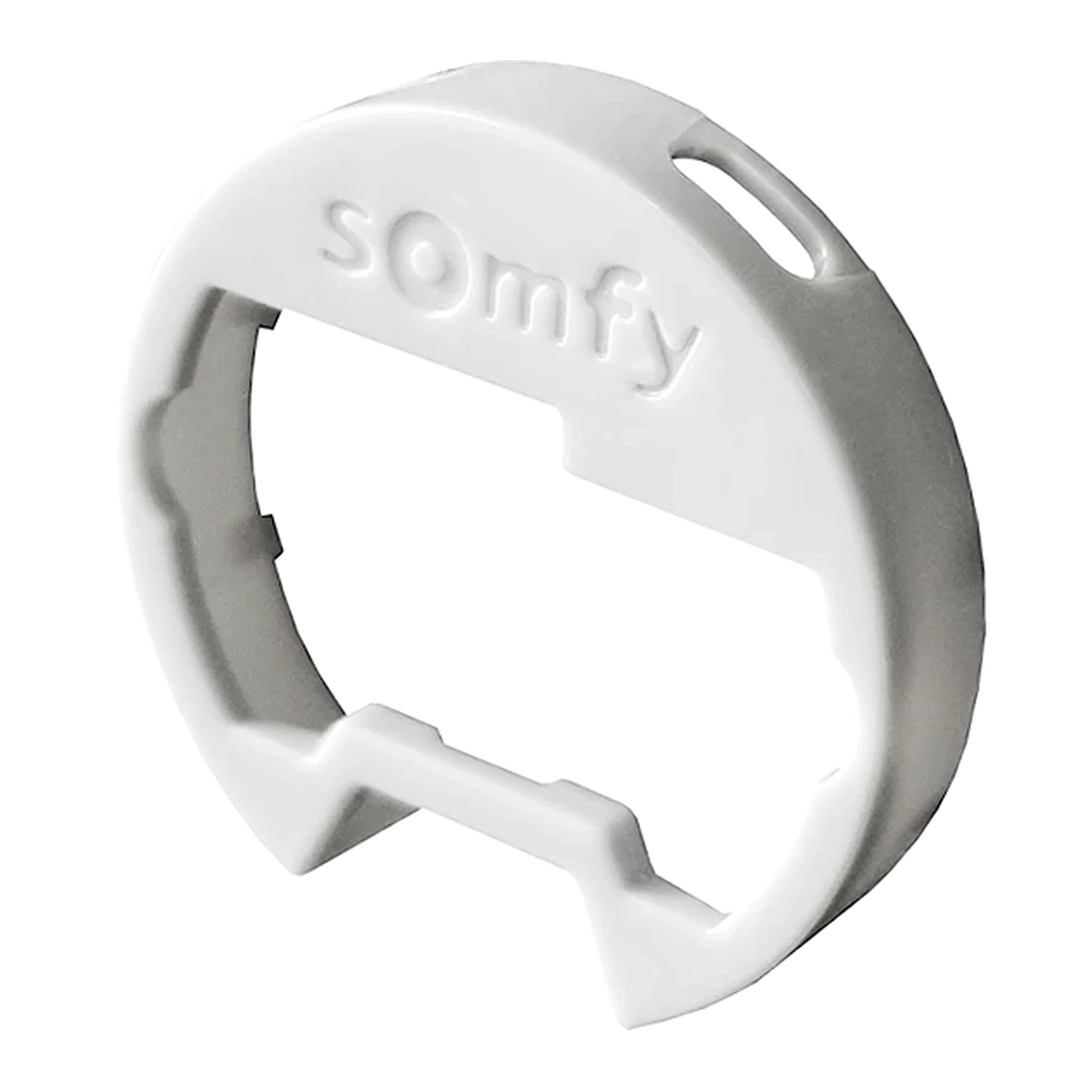

Somfy Sonesse 30 Shade Motor RS485 - 1241144

Technical information

STANDARD

Protection Index: IP 30

Insulation class: III

DIMENSION

Minimum internal diameter: 1.13 in

External Diameter: 1.97 in

Diameter: 1.18 in

TECHNOLOGY

Bus type: RS485

Number of cycles per day (in cycles): 2

ELECTRICAL

Consumption during operation: 16 W

Minimum voltage: 21.6 V

Maximum voltage: 26.4 V

Rated current: 0.725 A

Power supply: DC - RGE 8 24V

MECHANICAL

Speed: 25 rpm

Torque: 2 Nm

Type of limit switch unit: Digital

Capacity of the limit switch unit (turns): 125

Power scale: DC MOTOR 0W TO 37,5W

Repeatabilty: +/- 6

Head type: ROUND

CABLE

Number of wires of the cable: 5

Cable plug ends: WEIDMÜLLER

Wire section: 0.0003 in²

OTHER

Color / Finish: White

Minimum working temperature: 32 °F

Maximum working temperature: 140 °F

Minimum storing temperature: -4 °F

Maximum storing temperature: 176 °F

Thermical time: 5 min

Shape: TUBULAR

Noise level (dB): 47 dB

Approval: UL

Supply tolerance 21.6 – 26.4V DC
Running time 6 minutes
Repeatability + 6o

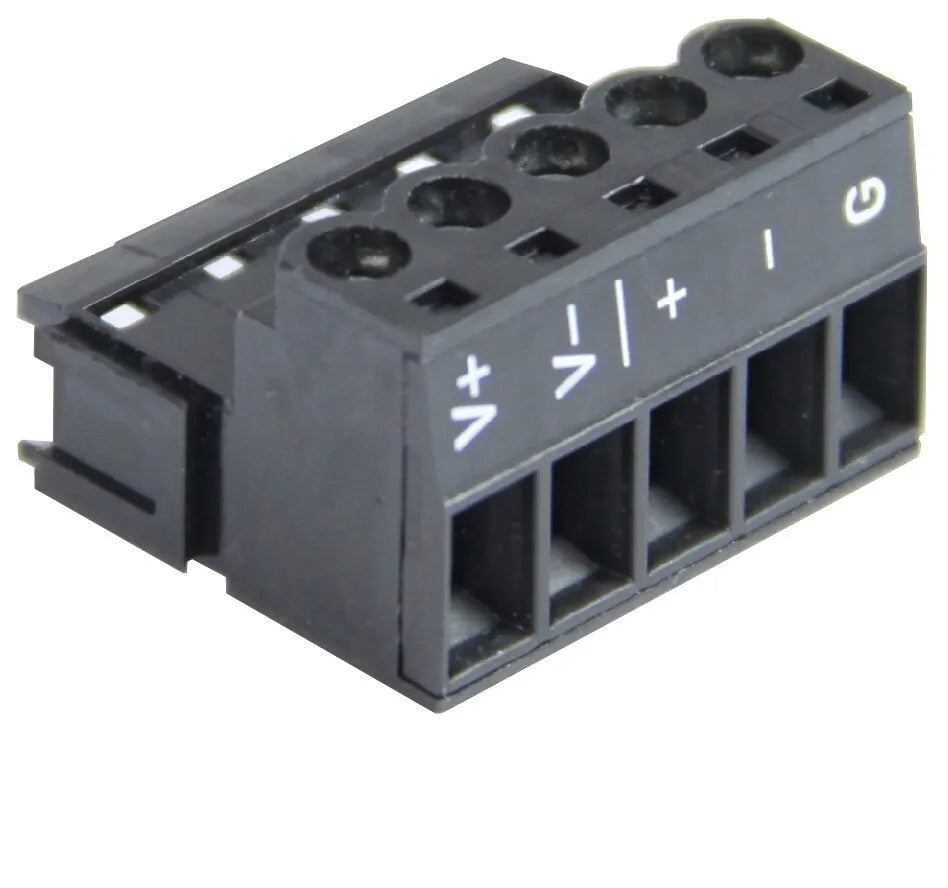

Cable AWG24 - 1 cable: 5 wire (9.8 in. 5 position Weidmüller
pigtail non-removable)
Index protection rating IP30 (interior use only)
Limit switch unit Electronic
Limit switch capacity 125 turns (limited to 6 minutes of rotation without stop)
Temperature working range From 32°F to 140°F (0°C to 60°C)
Electric insulation Class III
Sound level* <47 dB(A)*

Bi-directional serial communication with 3rd party control systems

Eliminates the Need for 3rd party automation interfaces

Provides basic open, close and stop commands and allows for setting each shade to 16 intermediate positions with RS485 and 100 intermediate positions with Z-Wave

Motor can be assigned to 16 goups

NOTE:-> Somfy Part #9014599 Limit Setting Tool required to set shade limits.

Applications: Roller Shades, Screen Shades, Austrian Shades, Roman Shades, and Woven Shades

Somfy PART. # 1241144
