Deep Dive Into the Somfy 1811416 IGC 4n1 Motor Controller:
Managing multiple hardwired shade motors requires a centralized, reliable power and communication hub. The Somfy Individual Group Control (IGC) 4n1 Motor Controller (part number 1811416) provides a streamlined, professional grade solution for operating up to four Somfy Wired Technology (WT) motors. Designed for absolute precision, this controller empowers users to operate window coverings individually or synchronize them into a master group.
Core Features and System Benefits:

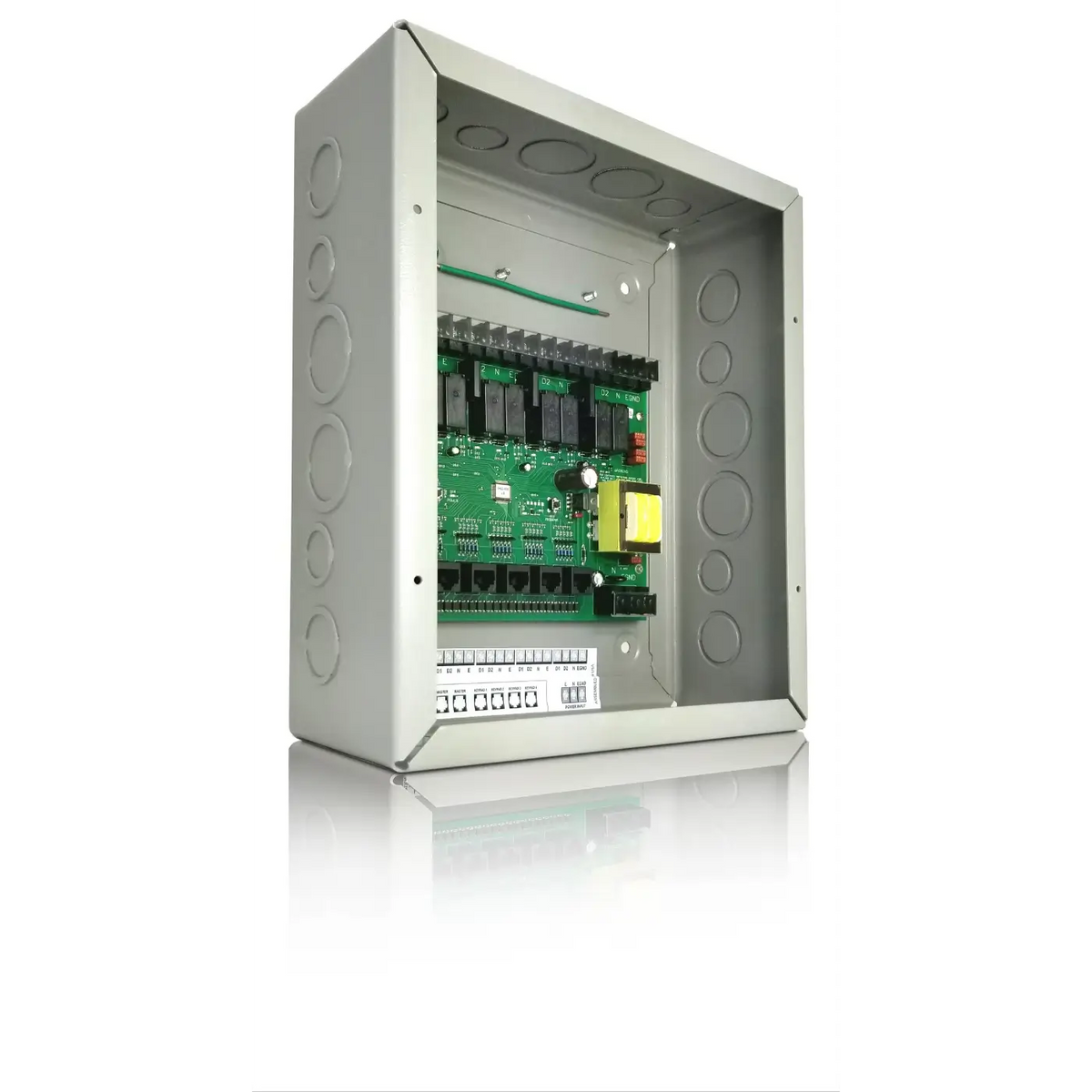

- Multi-Motor Capacity: Power and control up to four 120V AC standard 4-wire motors from a single 12-inch by 10-inch steel enclosure. Each motor output supports up to 5 amps, ensuring ample power for large window treatments.
- Customizable Presets: The control board arrives with default intermediate positions set exactly at 25%, 50%, and 75% openness. Installers can easily customize these stopping points to manage glare and privacy based on sun exposure.
- Flexible Grouping: Onboard DIP switches allow you to dictate which motors respond to specific keypad inputs. You can split the four motors into independent zones or link them together for unified movement.
- Infinite Scalability: For expansive commercial spaces or large residential living rooms, multiple controllers can be daisy-chained together. This networking capability allows a single master keypad to control vast banks of shades simultaneously.
- Universal Smart Home Integration: Outfitted with dry contact relay inputs, this unit integrates flawlessly with third-party home automation platforms, AV equipment, and standard relay wall switches.
Ideal Commercial and Residential Applications:
This commercial grade controller is an essential component for any large scale automation project. It is highly recommended for environments requiring synchronized operation of heavy draperies, heavy duty roller shades, or projection screens. If you are installing hardwired Somfy 400 Series Motors or Somfy 500 Series Motors, the IGC 4n1 functions as the necessary command center for your shading network.
Expand and Enhance Your Shading Setup:
To extract maximum value from your motor controller, pair it with the appropriate user interfaces. The system utilizes low voltage keypads, such as the Somfy DecoFlex Dry Contact Keypad, to trigger individual and group commands. Alan Richard Textiles supplies a vast inventory of Somfy Motors and Controls to complete your custom window treatment installations.
Frequently Asked Questions (FAQs):
1. What specific types of motors are compatible with the Somfy 1811416 IGC 4n1? This controller is engineered exclusively for standard 4-wire AC motors, commonly known as Somfy Wired Technology (WT) motors.It provides a 120V AC line output at a maximum of 5 amps per motor. It is not compatible with Radio Technology Somfy (RTS) motors or low voltage battery powered motors.
2. Can I connect this motor controller to a third-party smart home system? Yes. The IGC 4n1 board features dedicated dry contact relay inputs. This allows you to connect your motorized shades to popular building management platforms and AV control systems. Your automation system simply sends momentary contact closures for up, down, and stop commands.
3. How do I program the intermediate shade positions during installation? The controller board is pre-programmed with default intermediate stops at 25%, 50%, and 75% openness.To set these defaults after wiring, stop all motors, then press and hold the program button on the circuit board until the LED turns solid green.The connected motors will automatically cycle to their limits to calculate travel distance and configure the three preset points.
4. Am I limited to controlling only four motors with this system? A single 1811416 controller is physically limited to four motor outputs. However, the system is highly scalable. You can daisy-chain multiple IGC 4n1 controllers together using the integrated master ports. This allows you to synchronize control across dozens of motors using just one master keypad.
5. What kind of wiring is required to connect the wall keypads? Communication between the main motor controller and the DecoFlex keypads relies on standard Cat5e network cable. This low voltage connection powers the keypad and securely transmits command signals back to the main controller board, eliminating the need to run expensive electrical conduit.
