Available Finials: End Cap, Alassio Finial, Ardea Finial, Napoli Finial, Pescara Finial, Roma Finial, and Verona Finial.
1 1/8” motorized system best suited for light to medium weight draperies.
• Rail can be bent or curved. An actual size template is required. Polished chrome cannot be bent or curved.
• Wall or ceiling mount. Bracket count: 0-5’ = 2 brackets 11-15’ = 4 brackets 6-10’ = 3 brackets 16-20’ = 5 brackets
• Motorize with any Forest Shuttle. See all motor specifications on the following pages. All Forest Shuttle motors include a 10 year warranty.
• Control drapes with a gentle tug, wall switch, remote, any home automation system or by smart phone app.

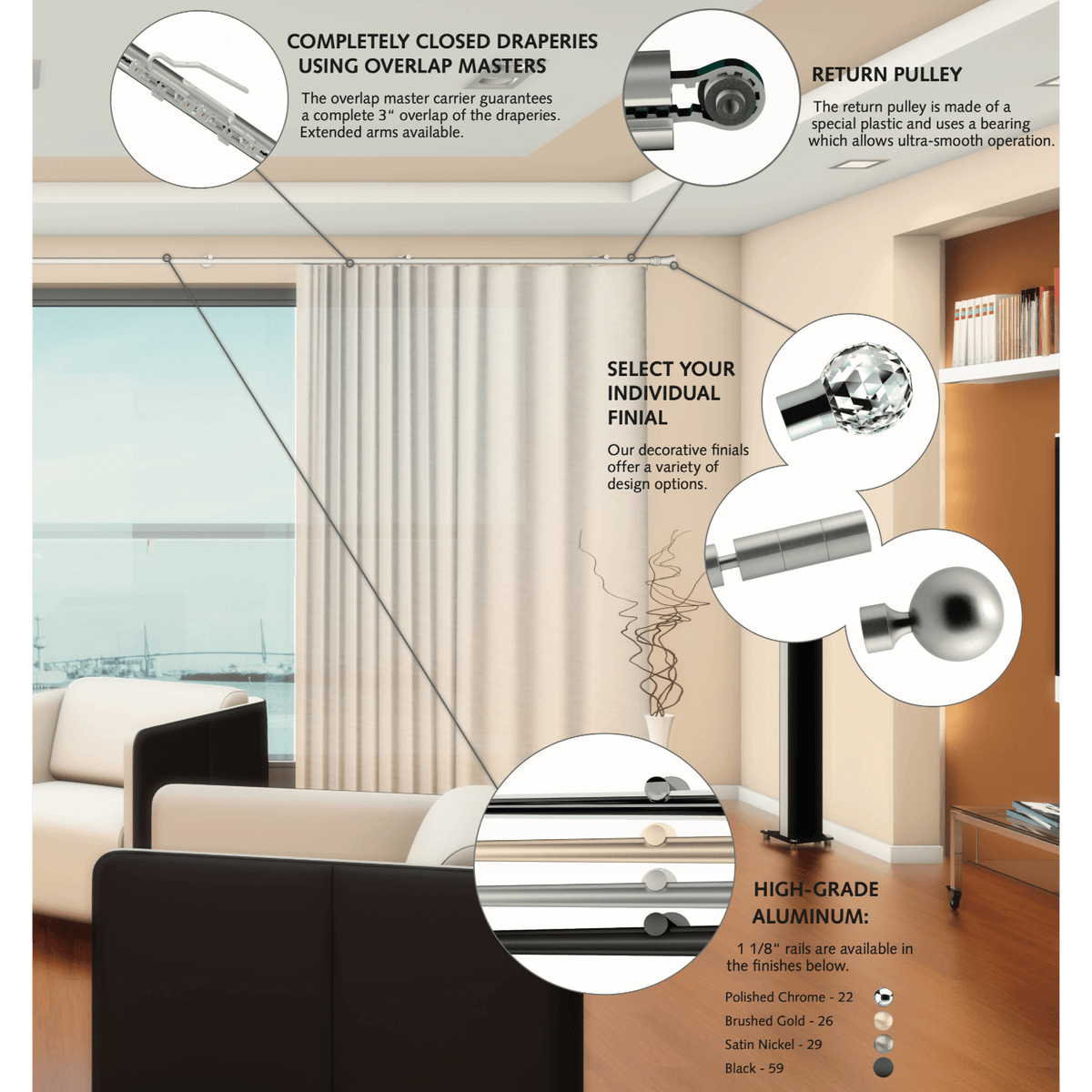

ASSEMBLED SYSTEM Includes rail, motor, power supply, motor pulley, return pulley, single wall brackets, carriers, masters, and Diamond remote or wall switch. Finials are optional.
Specifications |
Shuttle HD (M) |
Shuttle Eco (S) |
Shuttle iOn |
VOLTAGE SHUTTLE |
24V DC |
24V DC |
14.8V DC |
RECEIVER |
Internal, optional |
Internal |
Internal |
POWER SUPPLY |
External, 100-240V AC - 1.5A, 50-60Hz; Output 24V DC - 2.7A |
External, 100-240V AC - 0.8A, 50-60Hz; Output 24V DC - 2.5A |
Lithium iOn battery + charger (3-4 months between charges) |
MAX POWER |
65W |
40W |
30W |
TORQUE |
1.5 Nm |
1.0 Nm |
1.0 Nm |
TRAVEL SPEED |
5.5" per second standard, 7" per second maximum |
5.5" per second standard, 7" per second maximum |
5.5" per second standard |
NOISE LEVEL |
< 40 dB(A) |
< 40 dB(A) |
< 40 dB(A) |
MAXIMUM WEIGHT |
160 lbs per motor, or 120 Ibs per motor with curved track |
100 Ibs per motor, or 90 lbs per motor with curved track |
55 lbs per motor, or 40 lbs per motor with curved track |
DIMENSIONS |
2.76" × 1.97" x 9.5” |
2.76" × 1.97" x 7.5”’ |
2" × 3" x 12.25" |
CERTIFICATIONS/MARKINGS |
CE/FCC/DOE |
CE/FCC/DOE |
CE/FCC/DOE |
COLOR OPTIONS |
White / Black |
White |
White |
TOUCH CONTROL TECHNOLOGY |
☑️ |
☑️ |
☑️ |
INTEGRATED EMERGENCY CONTROL |
☑️ |
☑️ |
☑️ |
RF COMMUNICATION STANDARD |
☑️ |
☑️ |
☑️ |
AUTOMATION SYSTEM COMPATIBLE |
☑️ using RS485 & dry contacts |
☑️ using RS485 & dry contacts |
☑️ using RS485 & dry contacts |
WI-FI COMPATIBLE |
☑️ |
☑️ |
☑️ |
WORKS WITH DS-XL LED DIMMER |
☑️ |
☑️ |
☑️ |
WORKS WITH WIRELESS CONNECTOR CAN BE USED WITH CURVED TRACK |
☑️ |
☑️ |
☑️ |
PLUG & PLAY |
☑️ |
☑️ |
☑️ |
WARRANTY |
10 Years |
10 Years |
10 Years on motor 2 years on battery pack |
