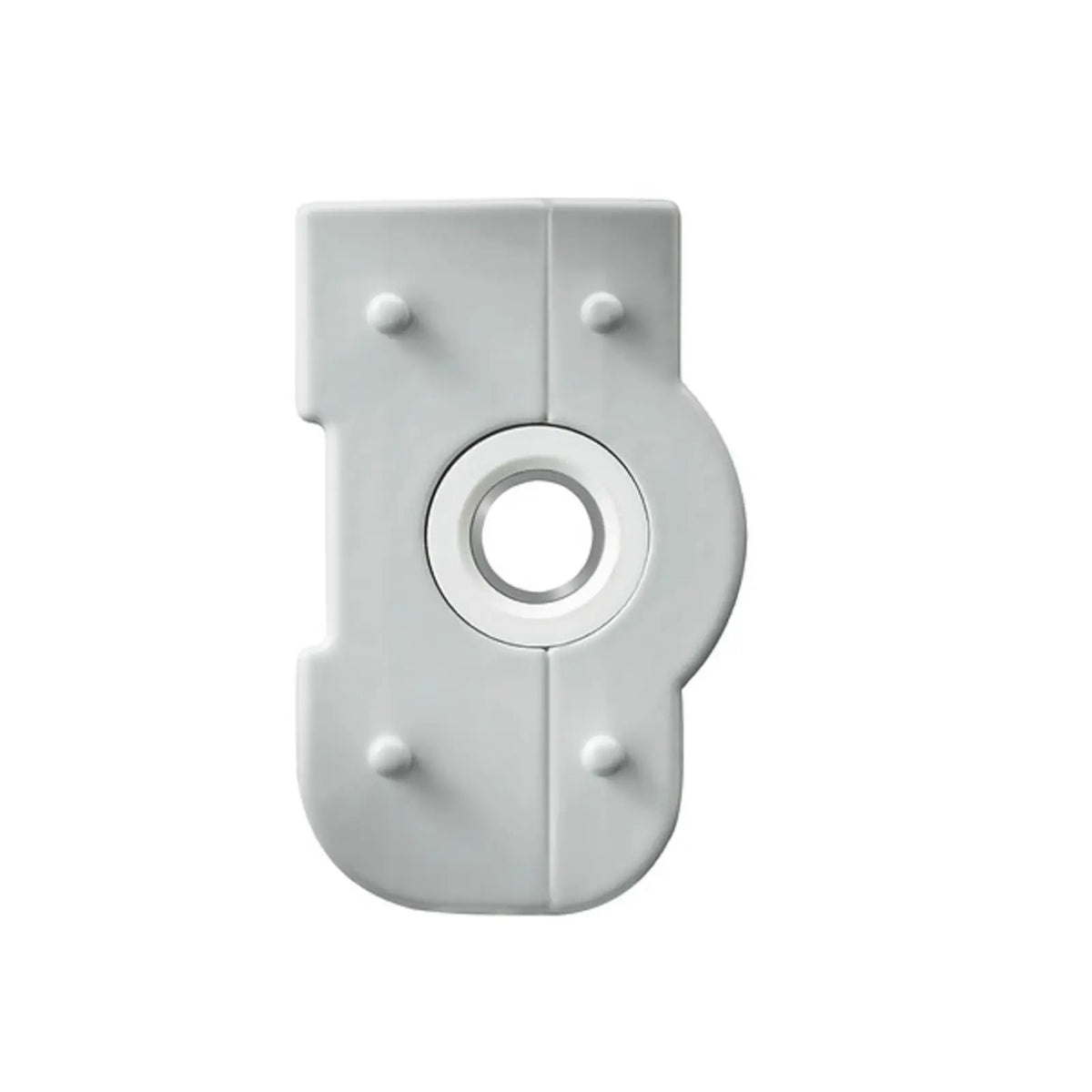

Somfy Tilt 50 WireFree™ Through-Shaft Zigbee (External Battery) 1241783

SKU: SOM-1241783
Zigbee Remote Control:
No Thanks
Battery Wand:
No Thanks

Sale price
$143.55
Regular price
$165.99
You save
$22.44 (14%)
Taxes and shipping calculated at checkout

Frequently Bought Together

Somfy Tilt 50 WireFree™ Through-Shaft Zigbee (External Battery) 1241783

Make a move! Raise your potential with wirefree smart shading

The Tilt 50 WireFree™ Through-Shaft Zigbee (External Battery) is a through-shaft smart motor specifically designed for tilting 2-inch horizontal blinds. It is powered by an external lithium-ion rechargeable battery pack or plug-in power supply.

Product benefits

Easy integration

  • Suitable for headrails at least 50mm wide
  • Through-shaft motor allows for a central position in the headrail providing a wider application scope (applicable to retrofit applications)
  • No hardware modifications required for horizontal blinds

Simple installation

  • Save money & time, no need for electrical wiring

Dedicated setting tool with TaHoma® pro app and maintenance tool Serv-e-Go

  • Limit settings can be done directly from the app via step-by-step programming instructions
  • Advanced setting available for soft start & stop, speed adjustment, etc.
  • Maintenance service with Serv-e-Go: remote diagnostics

Reliability and profitability

  • Highly secure protocol
  • Somfy quality & 5-year warranty

Technical information

STANDARD

Protection Index: IP20

Insulation class: III

DIMENSION

Unwrapped product weight: 0.66 lb

Unwrapped length: 4.06 in

Unwrapped width: 1.93 in

Unwrapped height: 1.22 in

External Diameter: 1.97 in

Diameter: 1.97 in

TECHNOLOGY

Radio Frequency: 2.4 GHz

Range in open field: 492.15 ft

Number of cycles per day (in cycles): 1

ELECTRICAL

Consumption during operation: 5.4 W

Minimum voltage: 10.6 V

Maximum voltage: 16.5 V

Rated current: 0.45 A

Power supply: DC - RGE 12 - 12V

Antenna: External

MECHANICAL

Speed: 10 rpm

Torque: 1 Nm

Type of limit switch unit: Electronic & bi-directional radio

Capacity of the limit switch unit (turns): 100

Power scale: DC MOTOR 0W TO 37,5W

Repeatabilty: +/- 7

CABLE

Number of wires of the cable: 2

Wire section: 0.0005 in²

OTHER

Minimum working temperature: 32 °F

Maximum working temperature: 140 °F

Minimum storing temperature: -4 °F

Maximum storing temperature: 140 °F

Thermical time: 4 min

Shape: SHAFT

Noise level (dB): 49 dB

Approval: UL
